Viewing Live Video
31
Configuring PTZ Connection Settings
Before you can control a PTZ camera with the DVR, you must configure the PTZ connection
settings.
To configure the PTZ connection settings
1. Go to Main Menu Setting System.
2. In the left navigation pane, click PTZ.

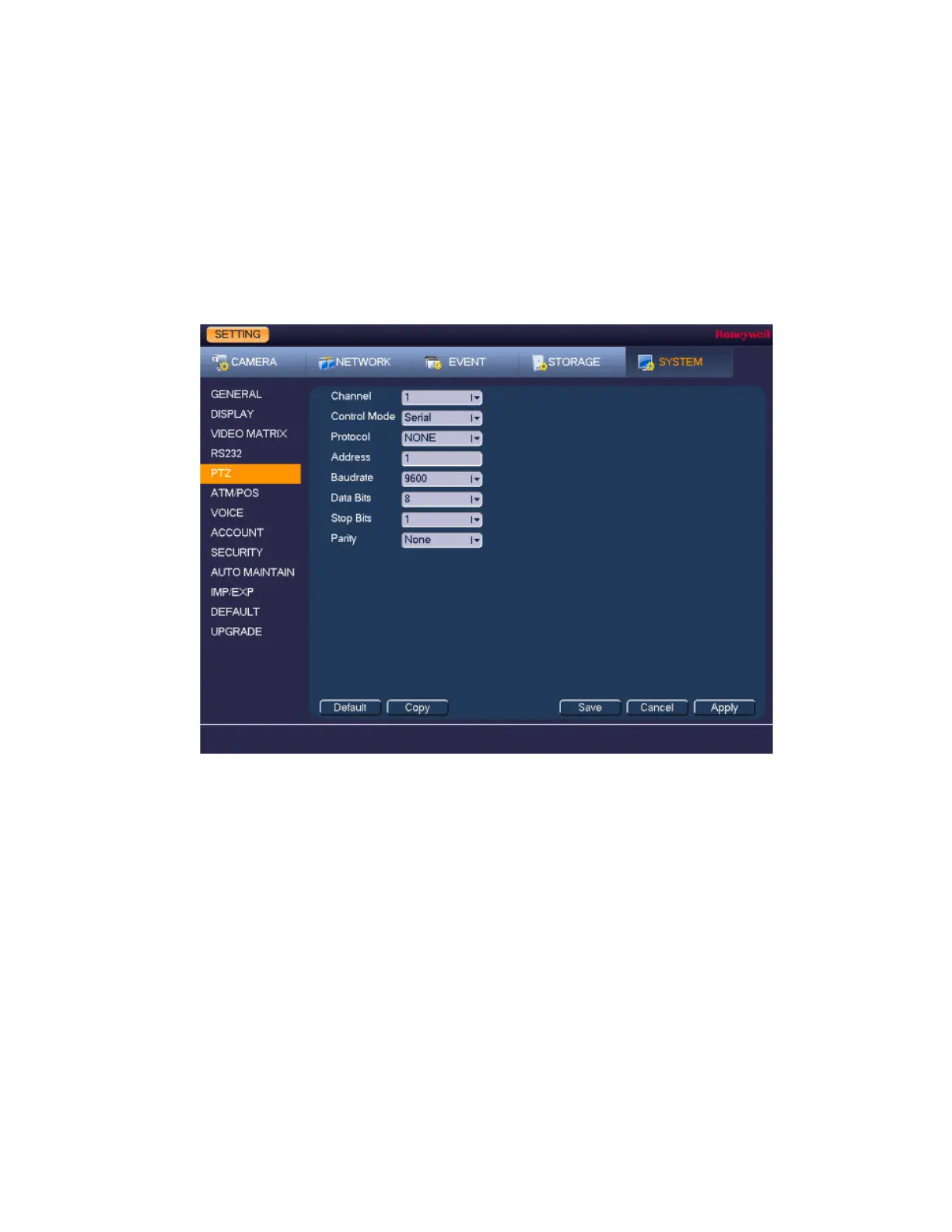

Figure 3-7
3. Configure the following settings:
•
Channel Select the channel (camera) that you want to configure PTZ settings for.
•
Control Mode Select HQA.
•
Protocol Select the camera’s PTZ control protocol from the list.
•
Address Enter the camera’s address (ID).
•
Baudrate Select a value between 1200 and 115200. The default setting is 9600.
•
Data Bits Select a value between 5 and 8. The default setting is 8.
•
Stop Bits Select 1, 1.5, or 2. The default setting is 1.
•
Parity Select None, Odd, Even, Mark, or Space.
4. Click Apply, and then click Save to save your settings and exit.
