Introduction
1
1. Introduction
This chapter includes the following sections:
• Front and Rear Panel Layouts on page 1
• 8-/16-channel DVR Rear Panel on page 5
• Remote Control Operation on page 8
Front and Rear Panel Layouts

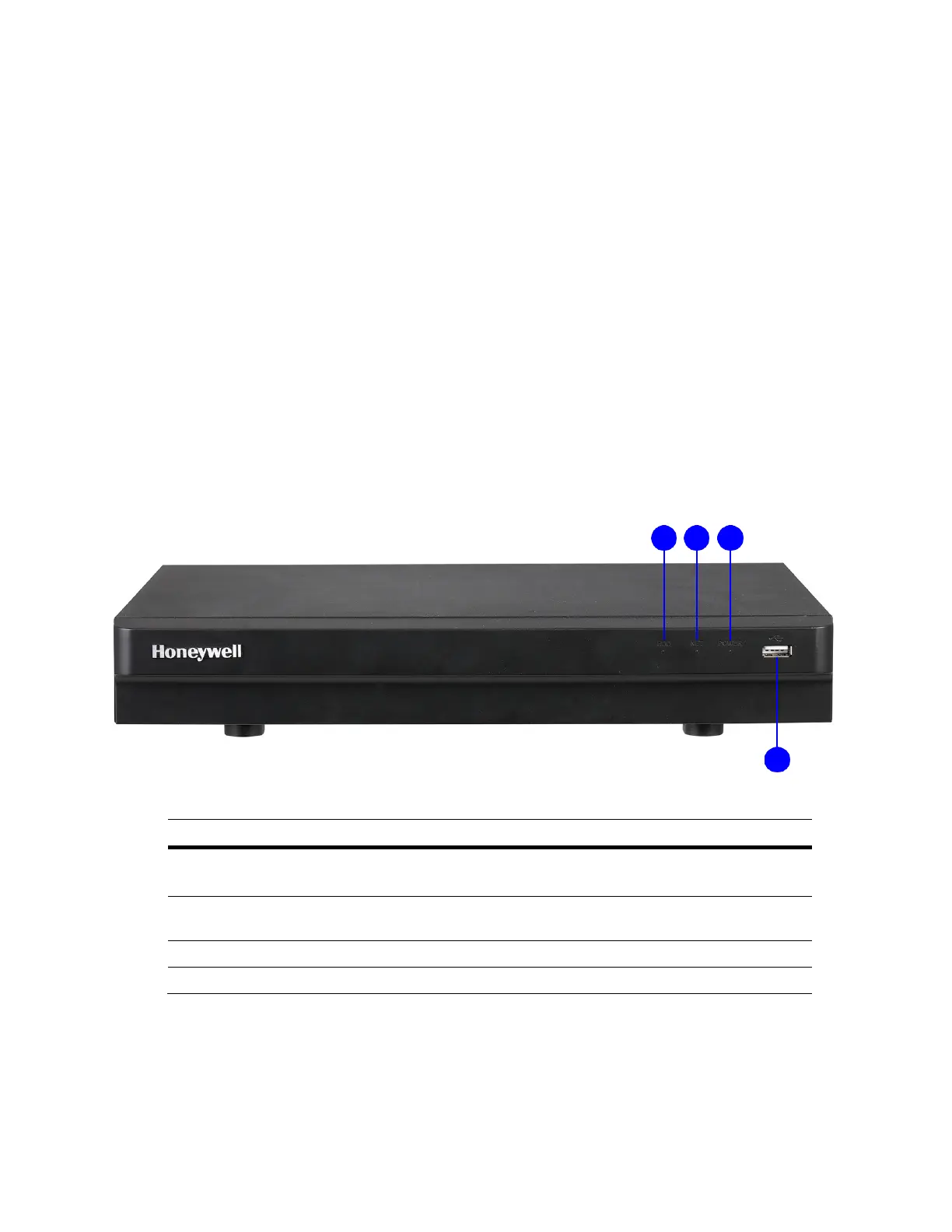

4-channel DVR Front Panel
Figure 1-1
Table 1-1
Name Function
1
HDD Indicator
Lights red when an HDD error occurs or when the
HDD capacity is below the configured threshold.
2
NET Indicator
Lights red when a network error occurs or when
there is no network connection.
3 POWER Indicator Lights blue when the DVR receives power.
4 USB 2.0 Port Connects USB devices (USB flash drive, mouse).
