Configuring System Settings
127
To configure the network settings without the ATM/POS protocol
1. Go to Main Menu Setting System Card Overlay Net.

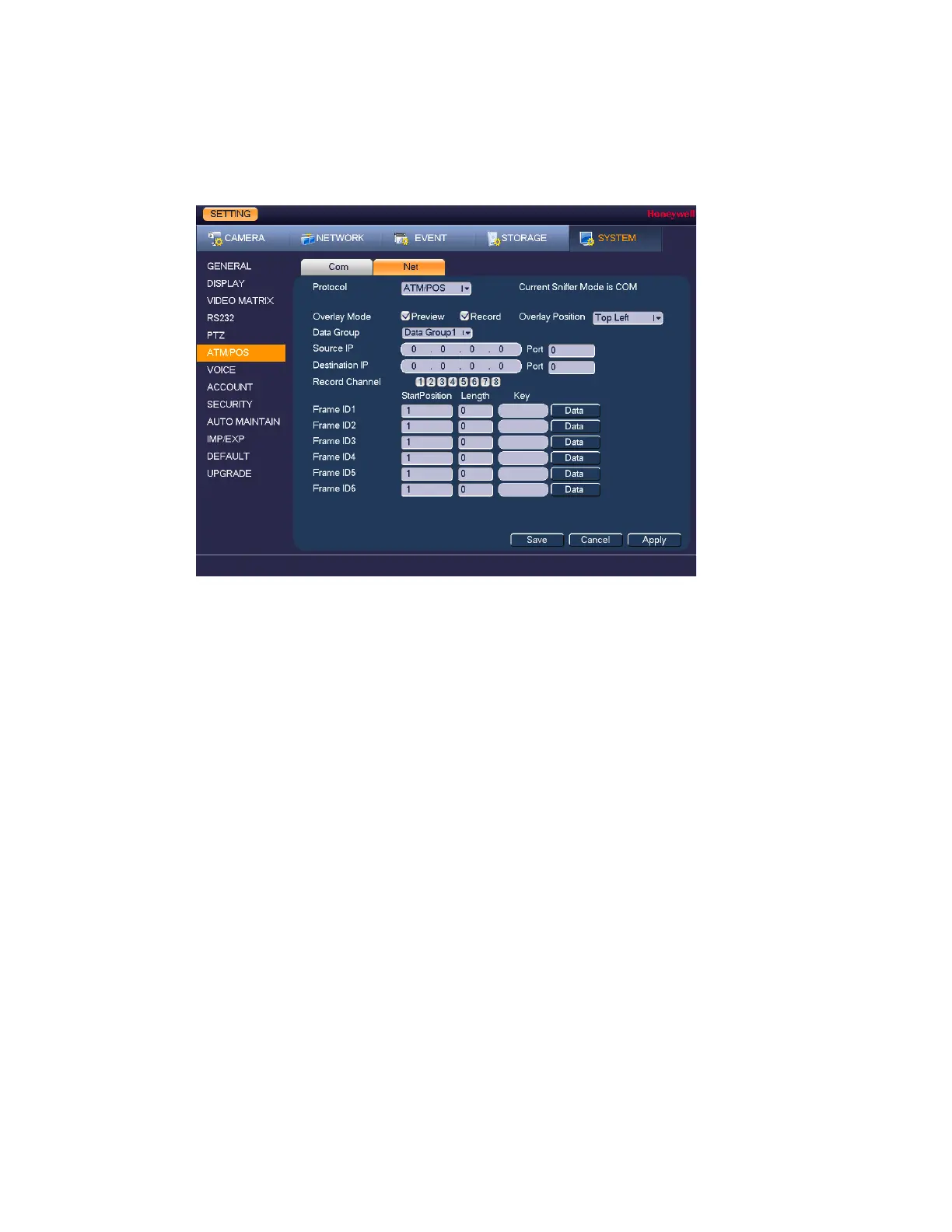

Figure 12-12
2. On the Net tab, configure the following settings:
• Protocol Select POS.
• Overlay Channel Select a camera.
• Overlay Mode The Preview and Encode overlay modes are
enabled by default. Clear the check boxes if you
want to disable them.
• Overlay Position Select Top Left, Bottom Left, Top Right, or Bottom
Right.
• Source IP/Port Enter the source IP and port. The source IP refers to
the host IP address that sends out the information.
• Destination/Port Enter the destination IP and port. The destination
IP refers to the IP address of the device that
receives the information.
3. Click Apply, and then click Save to save the settings.
Configuring Voice Settings
You can upload audio files that play when triggered by an event.
