Honeywell IntelliPath Series User Manual

LTE-I Installation and Setup Guide
8
Mounting the Communicator
The communicator can be mounted in two ways depending on the installation requirements.
ULC NOTES:
For Commercial Fire installations, the communicator must be mounted to a single or double gang
box.
1. Locate the Drilling Template (provided) and align with case back. Drill at the appropriate
locations for either single or double gang box.
2. Locate the gang box into the mounting surface, align case back over mounting surface and
install using the screws provided. Pass wires/cables through the opening in the gang box
and then through the opening in the case back.
3. When all wiring is completed, attach the case front to the case back. Attach the top first then
press the bottom section inward until it snaps into place. Secure cover using supplied screw.
4. For Commercial Burglary installations, you must install the rear tamper switch.
UL
The cover must be secured with the supplied screw.

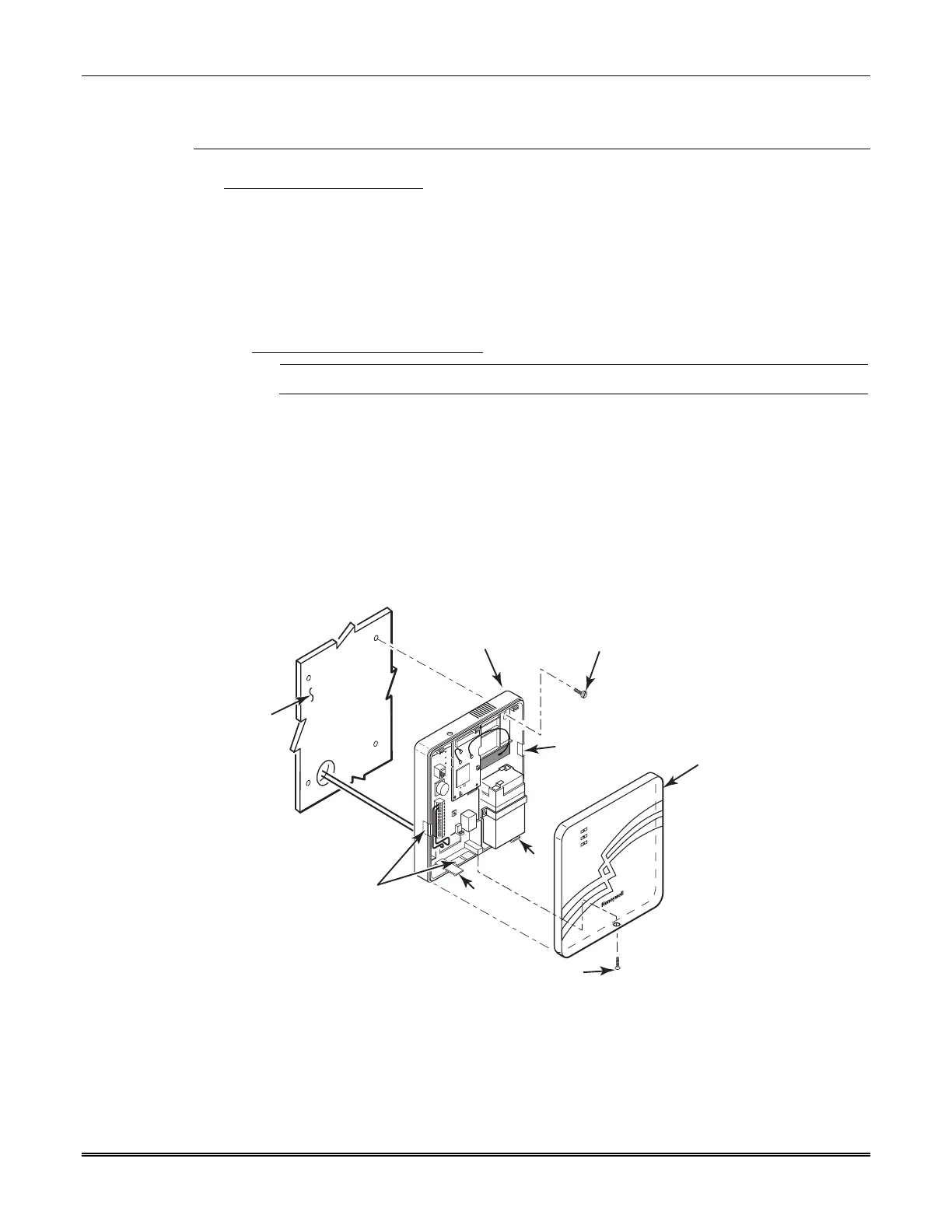

Mounting Procedure, LTE-I (no rear tamper switch)
1. Locate the case back over selected mounting position such that the opening in the case back
is aligned with the wire/cable opening on the mounting surface.
2. Pass the wires/cable through the opening in the case back, or route through the removable
knockouts located on the back cover.
3. Secure the case back to the mounting surface using four screws (supplied).
4. When all wiring is completed, attach the case front. Position the top first, then press the
bottom section until it snaps in place. Secure bottom using the supplied cover screw. (This
is required for UL installations.)
MOUNTING
SCREW (4)
(TYP)
TA B
TA B
LTE-I-003-V0
CASE
BACK
OPTIONAL WIRING
KNOCKOUT
CASE
FRONT
COVER SECURING SCREW
OPTIONAL
WIRING
KNOCKOUTS
MOUNTING
SURFACE
Standard Mounting
