Honeywell IntelliPath Series User Manual

LTE-I Installation and Setup Guide
18
A
B
C
DE
F
S
T
X
123
45
6
98
7
#0
Xmit
Shift
Space Enter
Shift
N / Y
BS / ESC
/
7720 PROGRAMMING TOOL
LTE-I-002-V0
7720P
PROGRAM
CONNECTOR

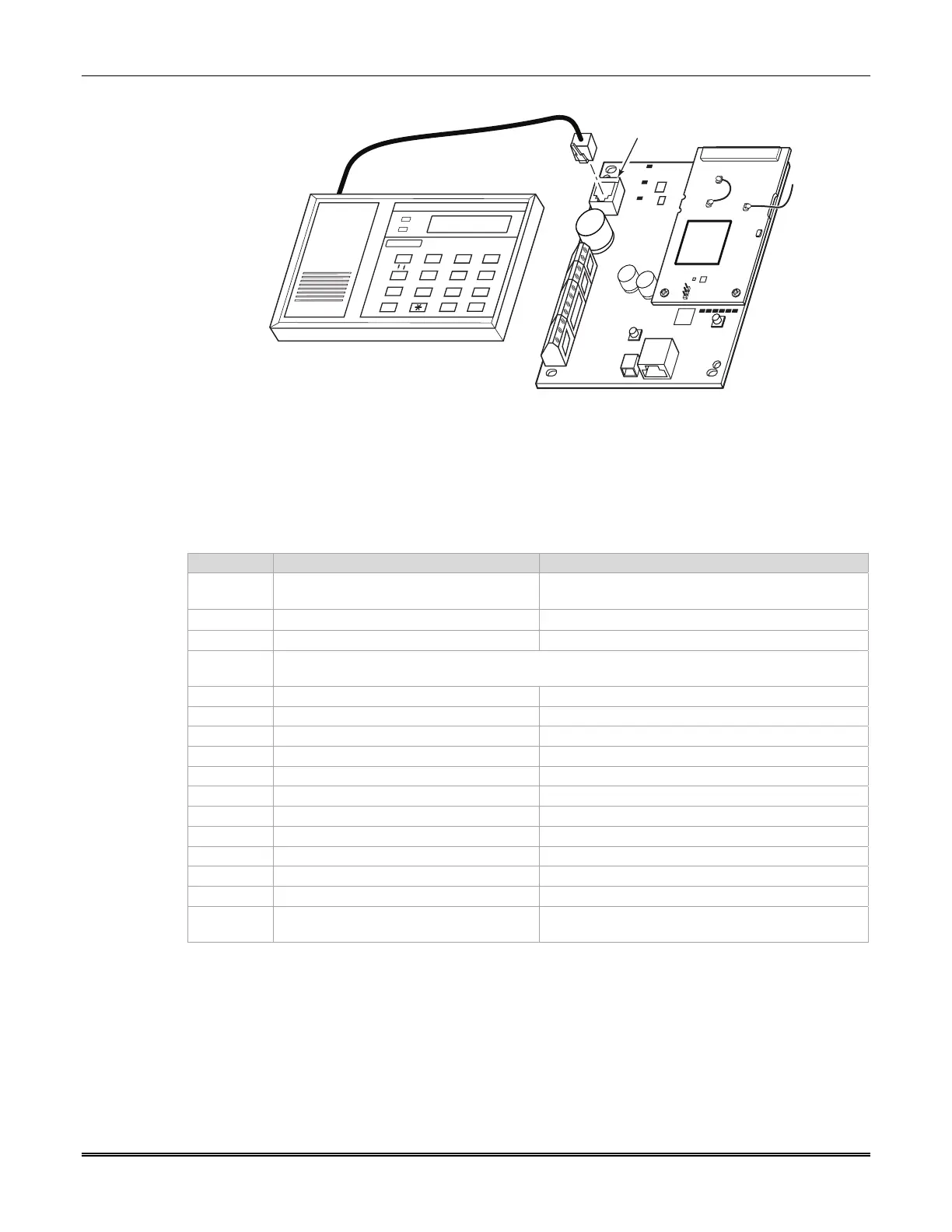

7720P Programmer Tool Connection
Each key of the 7720P has two possible functions: a normal function and a Shift function.
To perform a normal key function, simply press the desired key.
To perform a Shift function, press the [shift] key, and then press the appropriate key.
The prompts in this document reflect use of the 7720P Programming Tool. The table below lists
each normal and shift key function.
Table 3-1. 7720P Normal and Shift Key (shift LED lit) Functions
KEY NORMAL KEY FUNCTION SHIFT KEY FUNCTION
BS/ESC [BS]: Press to delete entry
[ESC]: Press to quit program mode; also can reset
programming defaults*
/ []: Scroll down programming []: Scroll up programming
N/Y [N]: Press for "NO" answer [Y]: Press SHIFT-Y for "YES" answer
SHIFT
Press before pressing a SHIFT key function. Will light SHIFT LED. LED goes out once a key
is pressed. Press again for each SHIFT function desired.
1/A [1]: For entering the number 1 [A]: For entering letter A
2/B [2]: For entering the number 2 [B]: For entering letter B
3/C [3]: For entering the number 3 [C]: For entering letter C
4/D [4]: For entering the number 4 [D]: For entering letter D
5/E [5]: For entering the number 5 [E]: For entering letter E
6/F [6]: For entering the number 6 [F]: For entering letter F
7/S [7]: For entering the number 7 [S]: For entering letter S
8/T [8]: For entering the number 8 [T]: For entering letter T
9/X [9]: For entering the number 9 [X]: For entering letter X
SPACE [SPACE]: For scrolling option list No SHIFT function
0 [0]: For entering the number 0 No SHIFT function
#/ENTER
[#/ENTER]: Starts programming mode;
Press to accept entries
No SHIFT function
* Active only when the "Exit Programming Mode" prompt is displayed.
Using the Control Panel Programming Mode
Some control panels support programming of the communicator through the control panel
programming mode (e.g., VISTA-128BP). If programming through the control panel, only
the ECP Mode programming options are available. The "mode" questions will not be
displayed, and the mode cannot be changed. For a description of key functions on the
control panel keypad, and how they map to the 7720P Programming tool, refer to the control
panel's Programming Guide.
