11 - 6
Docking and Undocking

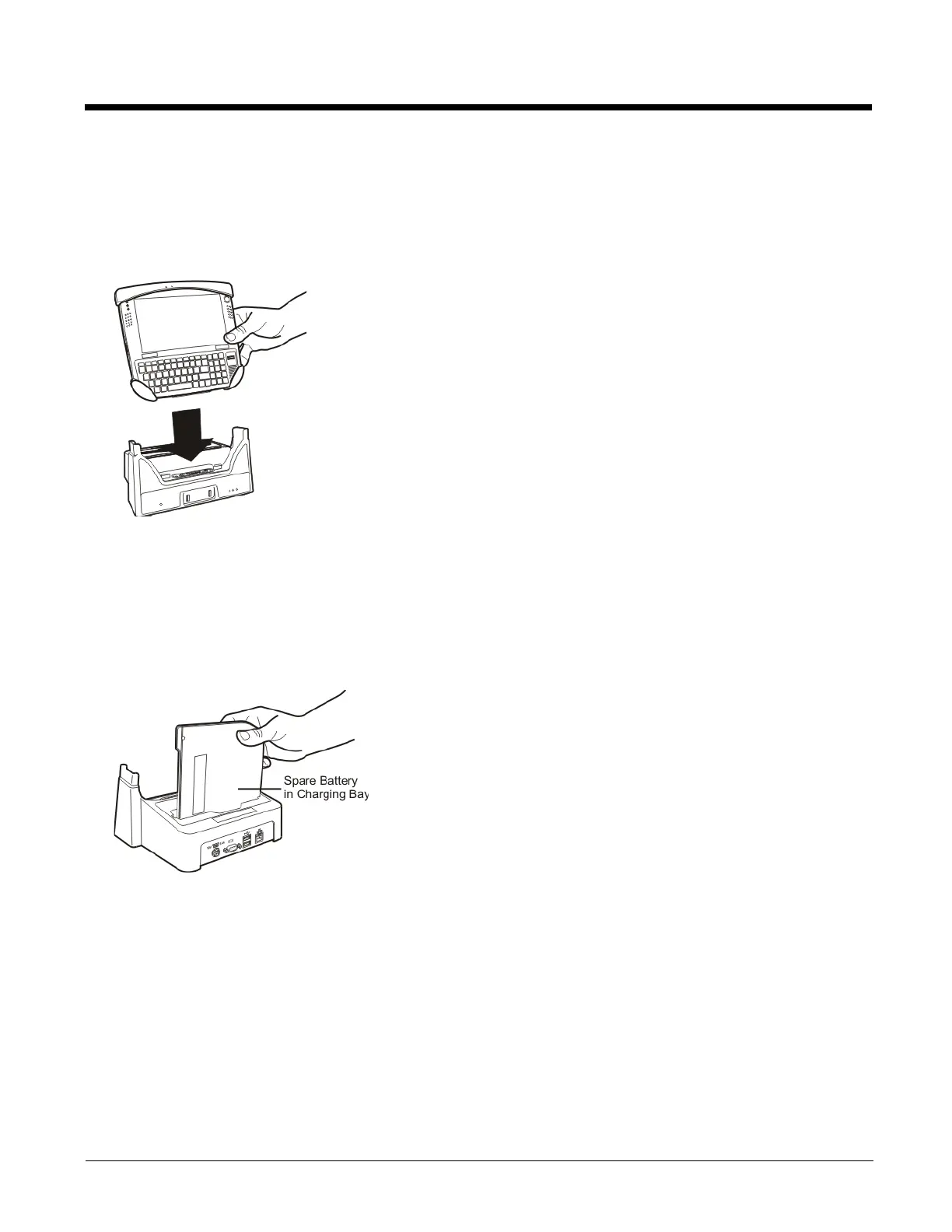

To dock the Marathon, lower the Marathon straight into the docking bay and carefully push down until the charging con-
tacts at the base of the Marathon are securely seated on the charging contacts in the docking bay.
When the Marathon is receiving power from the dock, the battery LED on the front of the Marathon illuminates orange, indi-
cating power from the dock is recharging the main battery in the Marathon.
Note: Do not "slam" or slide the Marathon sideways into the dock. Damage may result.
To undock the Marathon, grasp it firmly at the side and lift it straight up and out of the dock. If the dock is not attached to
a mounting surface, stabilize the dock with one hand while removing the Marathon from the dock with the other hand.
Inserting and Removing the Extended Battery
The instructions that follow are the same for both versions of the extended battery.
To insert an extended battery into the dock charging bay, lower the extended battery straight down into the charging
bay and carefully push down until the charging contacts at the base of the Marathon are securely seated on the charging
contacts in the charging bay.
When the dock is receiving AC input, the Spare Battery Charging Bay LED illuminates.
Note: Do not "slam" or slide the extended battery sideways into the charging bay. Damage may result.
To remove a charged extended battery, grasp it firmly at the side and lift it straight up and out of the charging bay. If the
dock is not attached to a mounting surface, stabilize the dock with one hand while removing the extended battery from the
charging bay with the other hand.
