Honeywell MeshGuard FTD-2000 - LCD Display Overview

MeshGuard User’s Guide
9

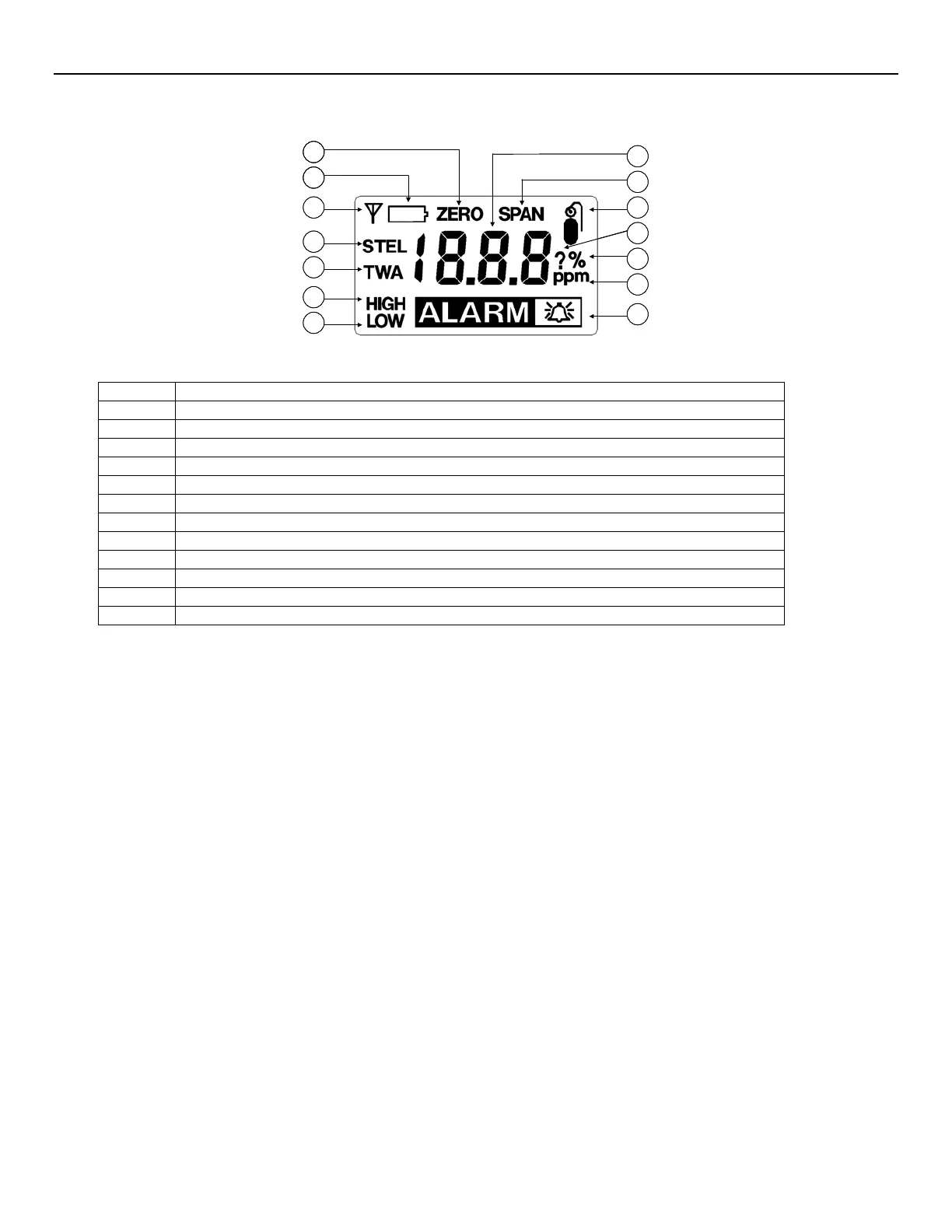

3.1 LCD Display
1
2
3
4
5
6
7
8
9
10
11
12
13
14
11
22
3
4
5
6
7
8
9
10
11
12
13
14
1*
Zero Calibration
2
Low Battery Indicator
3
Wireless Communication (if on, the monitor is in STD; if blinking, the monitor is RTR)
4*
Short Term Exposure Limit (STEL)
5*
Time Weighted Average (TWA)
6, 8*
High Alarm
7, 8*
Low Alarm
9*
Gas Concentration unit, ppm
10*
Gas Concentration unit, %
11
Save Setting
12,13*
Span Calibration
14
Reading Value
Remark:
Concentration unit is shown as either ppm (9) or % (10).
