Honeywell NOTIFIER AM1000 - Notes about the Lines for the Connection in Field

AM-1000 Installation manual PAGE - 9
AM1000_manu Doc. M-145.1-AM1000-ENG Rev A.2 NOTIFIER ITALIA
Canale A
Canale B


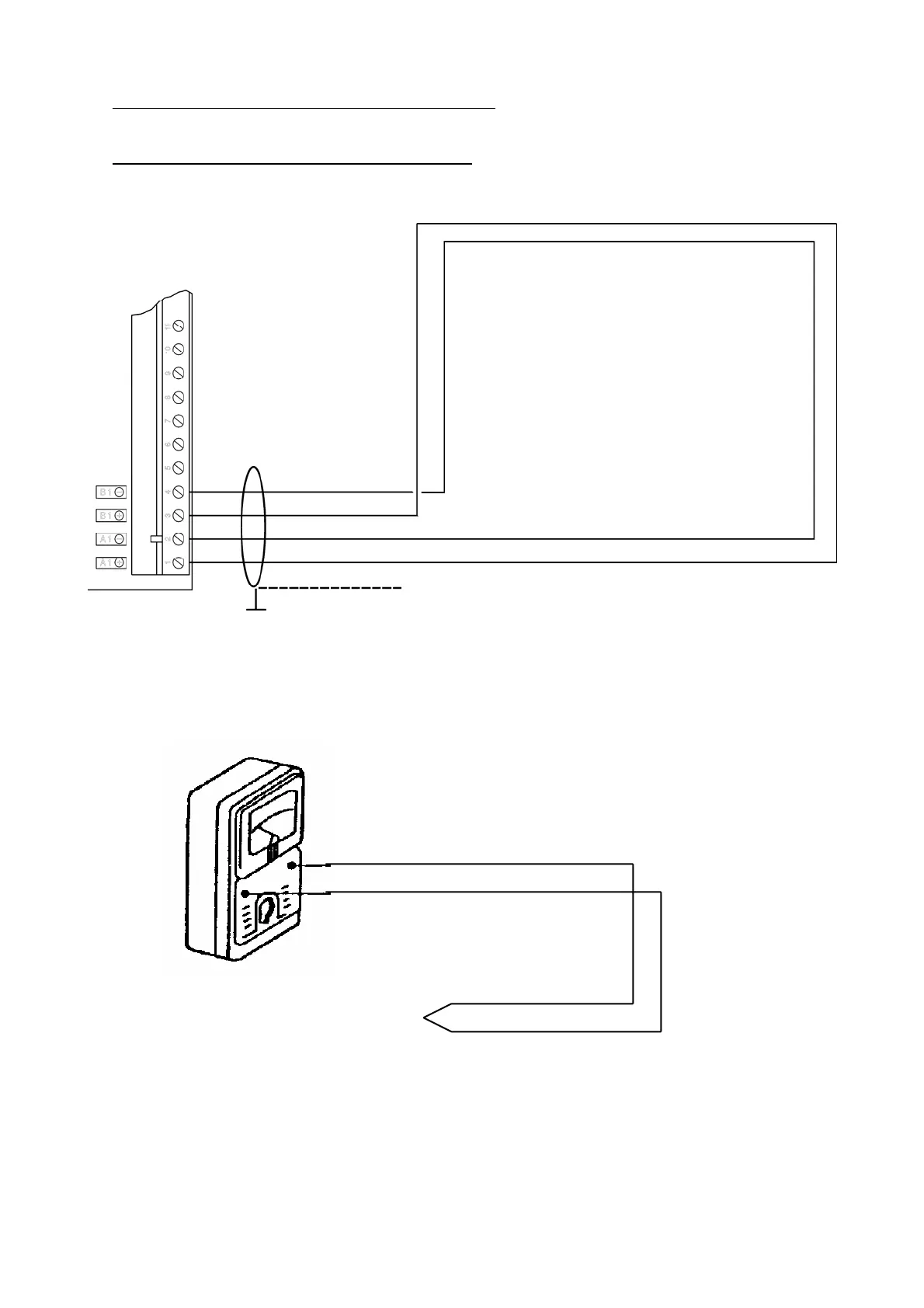

Note regarding the connection lines in field
FEATURES OF THE CONNECTIONS (STYLE “A”)
The total length of the SLC wire (from the output of the control panel and return) can not exceed the 3.000
meters.
The resistance in continues supply of the SLC loop can not exceed the 40 Ohm.
For the measuring of the canal “B” it is necessary to disconnet the canals “A” and “B” from the control panel
and cause, between the two ends of the canal “A”. a short-circuit.
Canale B
Loop SLC
No “T” branches allowed
Canale A
SHIELD
