Honeywell NOTIFIER AM1000 - Branch Resistance

PAGE - 10 Installation Manual AM-1000
NOTIFIER ITALIA Doc. M-145.1-AM1000-ENG Rev A.2 AM1000_manu

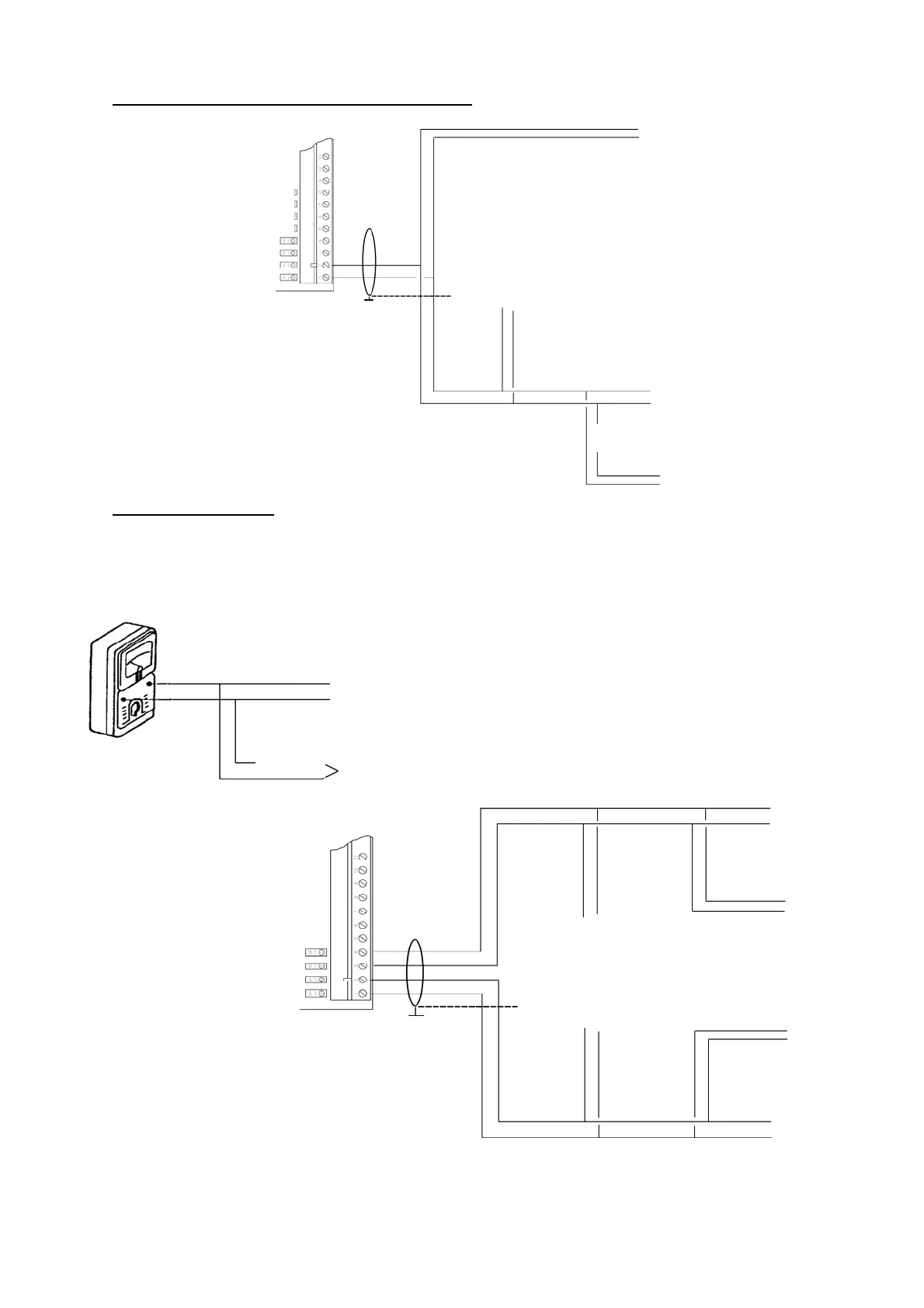

FEATURES OF THE CONNECTIONS (STYLE “B”)
 Branch resistance
Cause a short-circuit for the terminal points of each branch and measure the DC resistance, from the
beginning of the canal to the end of the branch.
The total DC resistance from the panel to the end of the branch can not exceed 40 Ohm.
Repeat the procedure for all the remaining branches.
For each canal:
Sum the length of the present branches.
The total can not exceed 3.000 meters.
(Branch A)+(Branch B)+(Branch C)+(Branch D)+(Branch E) <= 3.000
meters.
The total length of all the branches on canal A and canal B can not exceed 3.000 meters.
SCHERMO
BRANCH B
BRANCH
RAMO D
CANALE A o B
RAMO
SCHERMO
RAMO A
CANALE A
CANALE B
