PAGE - 4 Installation Manual AM-1000
NOTIFIER ITALIA Doc. M-145.1-AM1000-ENG Rev A.2 AM1000_manu
I
I
N
N
S
S
T
T
A
A
L
L
L
L
A
A
T
T
I
I
O
O
N
N
We advice do not install the control panel near heating sources (heat radiators, thermosiphon).

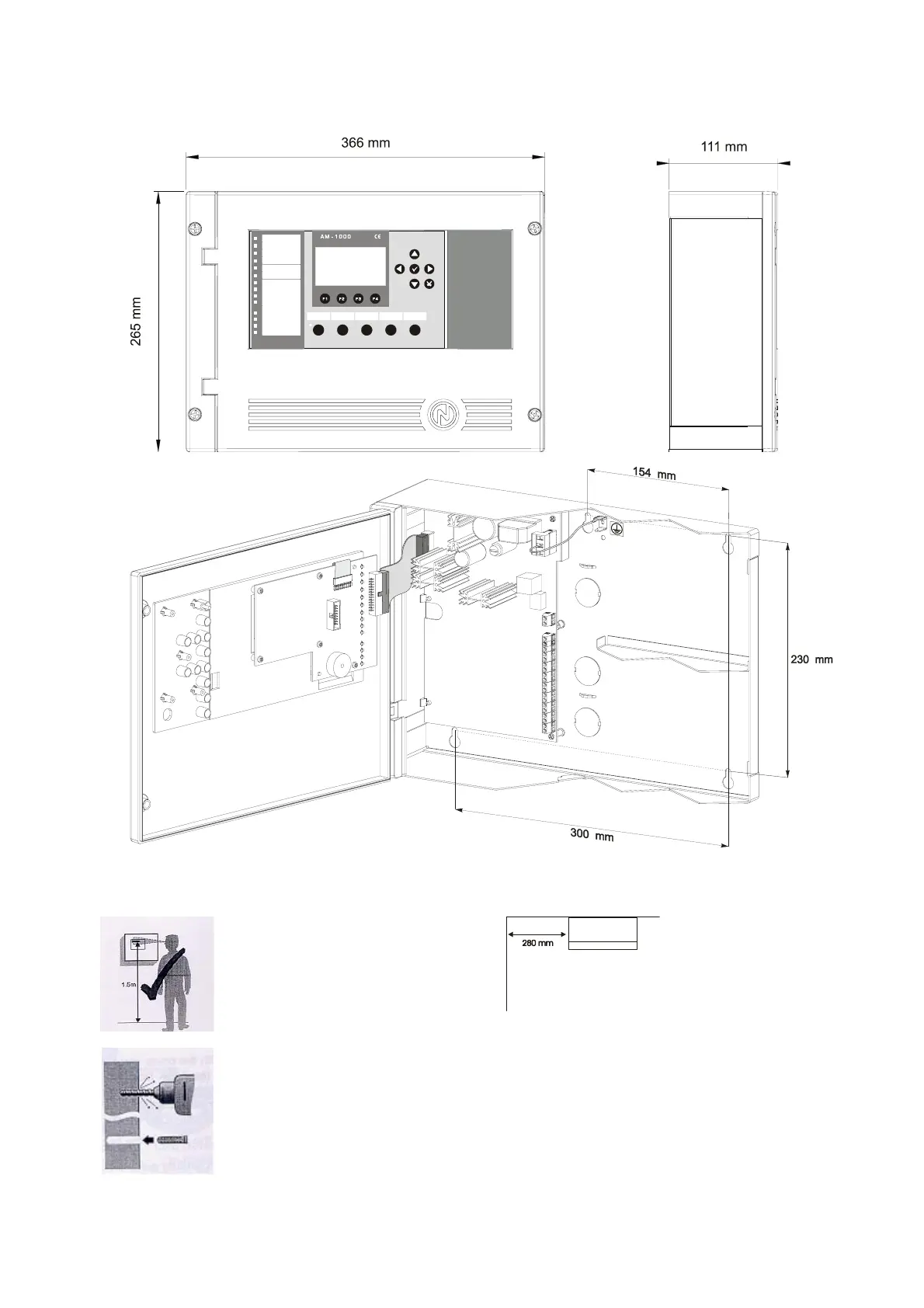

For installation in a corner it is
necessary to have a distance of
280mm to let the frontal panel open.
The contol panel has to be wall mounted in
order to allow a clear visibility of the disply
and an easy access for the user.
For example 1.5 m height allow an optimal
display vision.
With 5 automatic blocks (brickwoork wall)
or selfscrew (prefabbricated panel) it is
possible tha wall mounting.
Diameter max of the selfcrew: 5mm
