ID3000/ID2000 Fire Panel Configuration Tool Manual
Network
6 - 11 997-291, Version 3.05
November 2010
6.3.2 Procedure
To configure the panel for ID
2
net network
operation, do the following:

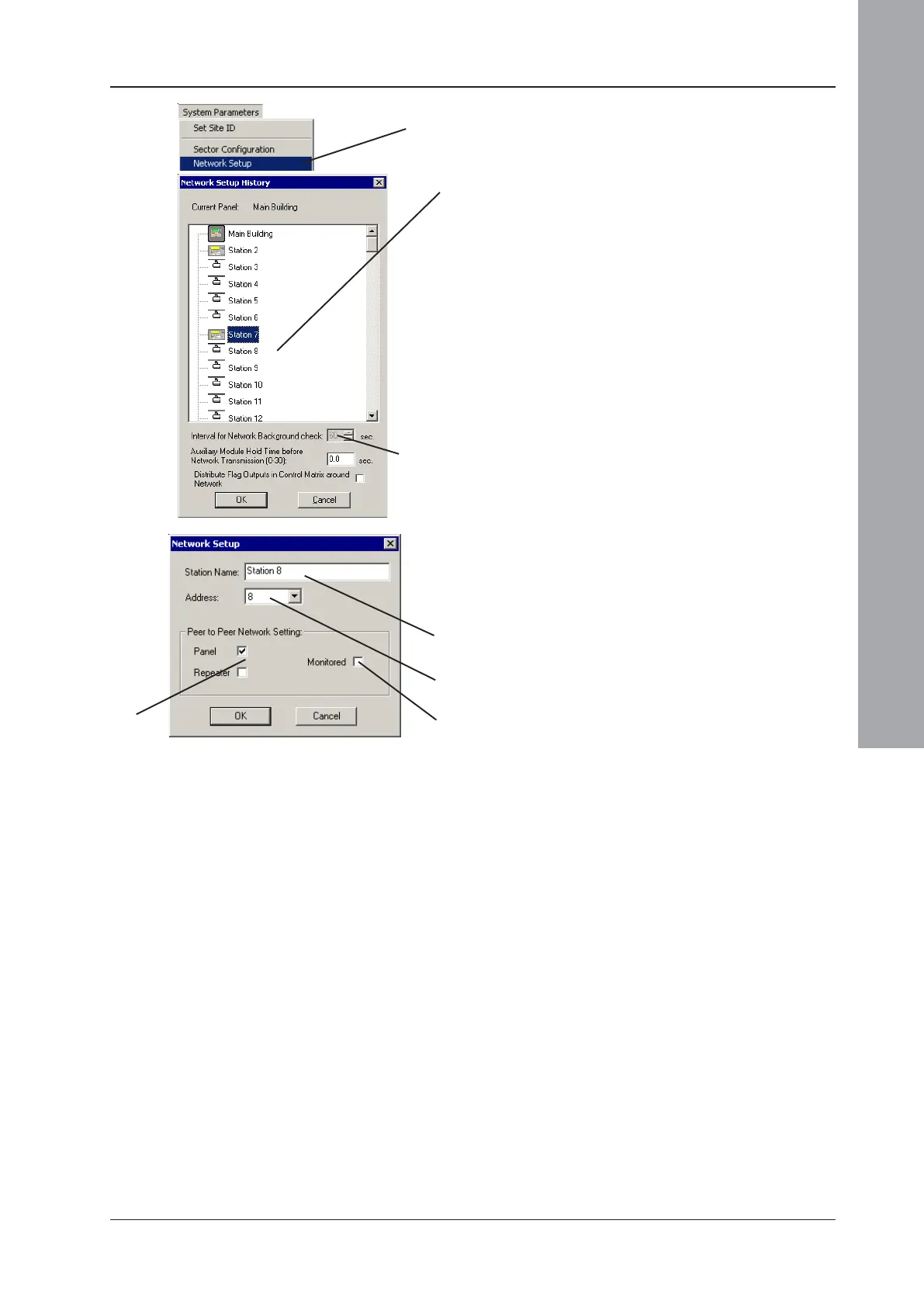

1 Select ‘Network Setup’ on the System
Parameters menu. A graphic illustration of the
network is displayed. A ‘Station’ may be a
panel, a repeater, or unused - the corresponding
icon is shown. Station addresses cannot be
set to ‘panel’ for addresses above: 32 (without
filtering) or 63 (with filtering).
2 Each panel is configured automatically on the
network when its own configuration is saved.
To edit a station, double-click it to display the
Network Setup window for that station:
i Check either ‘Panel’ or ‘Repeater’. Cannot
be changed if a Panel configuration exists.
ii Use the spin buttons to set the station
address on the network.
iii Enter the Station Name (cannot be changed
for panels if already set on the Specification
Tab [Section 2.1]).
iv Panels only: check the ‘Monitored’ box
unless the panel is not currently installed
(in which case leave it unchecked to prevent
error messages occurring - remember to re-
configure this when the panel does get
installed!).
Note: Repeaters connected to the panel via the
RS485 link are configured on the
Specification Tab.
1
2
2iv2i
2ii
2iii
NOT
USED
To Next Page
