ID3000/ID2000 Fire Panel Configuration Tool Manual
Introduction
1 - 10 997-291, Version 3.05
November 2010

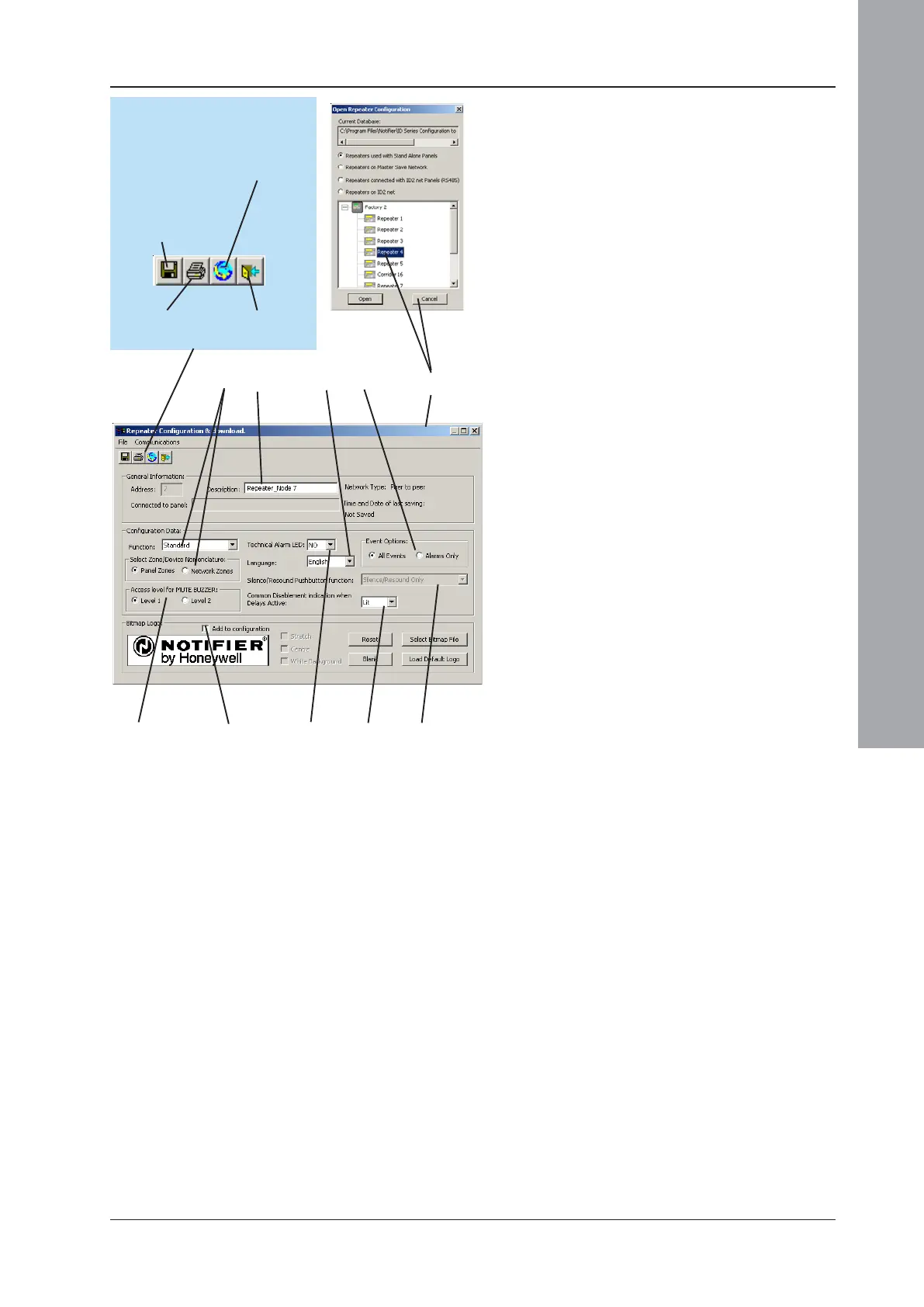

2 To configure a repeater, highlight it and then select
Open. The Configuration and Download window
is displayed (the address and associated panel
are display-only fields). Configure the following:
i The repeater name (maximum 32 characters).
ii Select the repeater function (Standard/VdS/
AFNOR) and zone type (Network/Local)
from the drop-down list and radio buttons.
iii Select the repeater display language.
iv Select whether the repeater displays All
Events or fire Alarms Only.
v The Silence/Resound Pushbutton option is only
available if the VdS function is selected in (ii)
above. It must be set to ‘Silence/Resound Only’
(the default) unless the repeater’s pushbutton
is labelled ‘Akustik AN-/Anstellen’, in which
case select the ‘Silence/Resound and
Disablement’ option. Provides compatibility with
older German systems.
vi Select whether the repeater has a Technical
Alarm LED - if YES, the Pre-Alarm LED is
used for this purpose.
vii To send a bitmap (logo), select it as
described in Section 1.5.10 (or select Load
Default Logo to revert to the default) and
then check the Add to Configuration box.
viii Select the access level at which the
repeater’s Mute Buzzer pushbutton can be
operated (level 2 = keyswitch operation).
ix Select ‘Not Lit’ if the Disablement LED is
not required to be lit when delays are active.
2
2v
2iv
2vi
2iii
2i
2vii
2ii
2viii
Save repeater
configuration to
current database
Print repeater
configuration
Send repeater
configuration to
the repeater
(see next page)
Exit from this
window
ICONS
2ix
