ID3000/ID2000 Fire Panel Configuration Tool Manual
Introduction
1 - 11 997-291, Version 3.05
November 2010

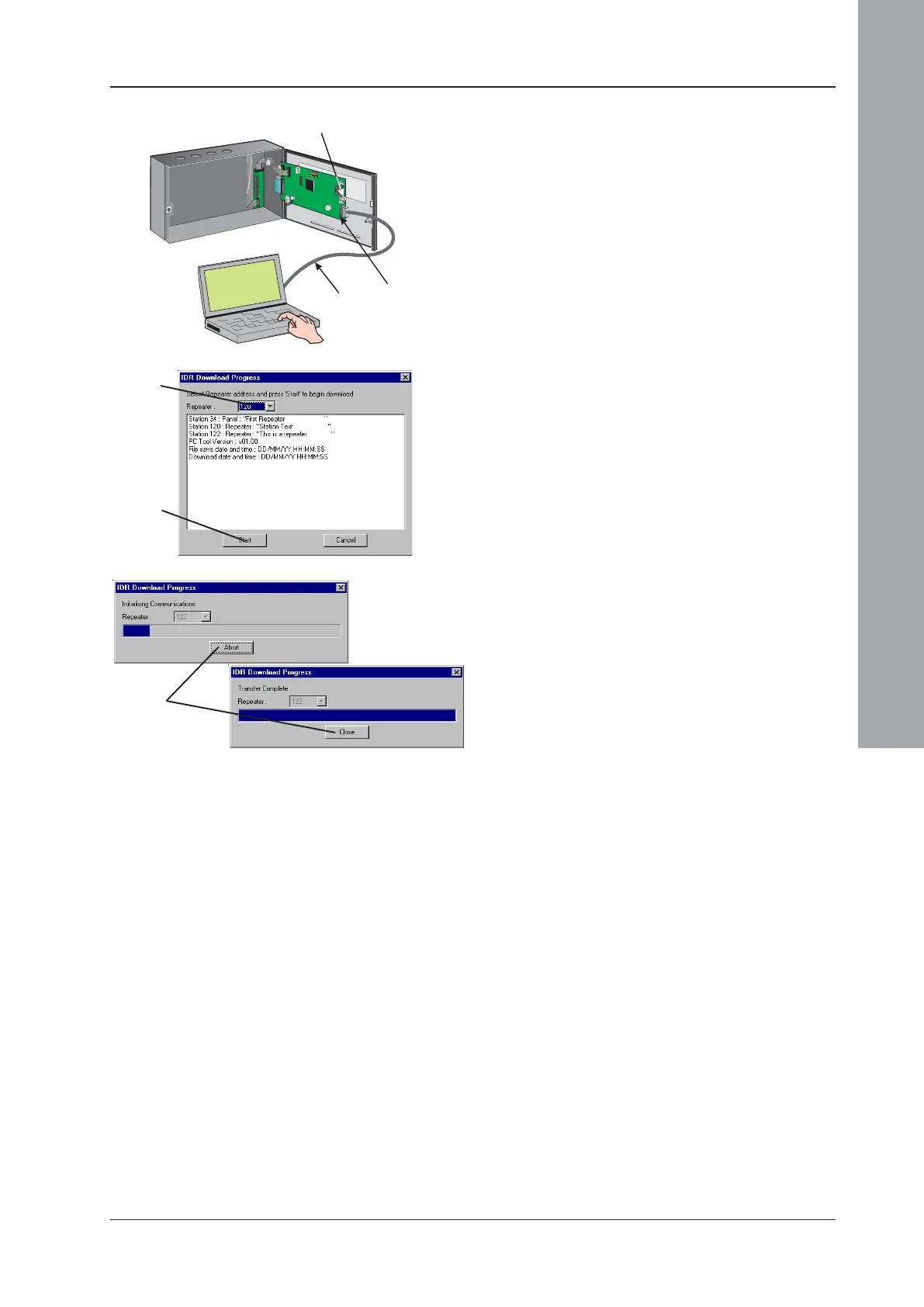

Send Repeater’s Configuration
When the repeater’s configuration has been
saved (see previous page), send it to the
repeater as follows:
Note: This procedure assumes that the
repeater’s address switches (1-6) are all
set to ‘0’ and that switches 7 and 8 are
set as described in the repeater manual.
1 Use a suitable data communications cable
to connect the PC to the repeater.
2 Place a link across the Program Enable (PE)
connector.
3 Press and release the Reset switch.
4 At the Tool’s Configuration and Download
window, select the ‘Send’ icon. The Repeater
Download Progress window is displayed.
i Select ‘Start’. A progress bar and status
message are displayed.
ii An ‘Abort’ option is provided but if used the
repeater memory will be left in a corrupt
state. When the transfer is complete, ‘Close’
is displayed - select this to end the process.
(If an error occurs during the send, ‘Retry’
and ‘Cancel’ options are provided.)
When the configuration has been sent,
disconnect the Program Enable link and the
data communications cable, then press the
Reset switch on the repeater.
1
2
3
4i
4ii
4iii
To Next Page
