ID3000/ID2000 Fire Panel Configuration Tool Manual
Loop Devices
3 - 2 997-291, Version 3.05
November 2010
bc - e

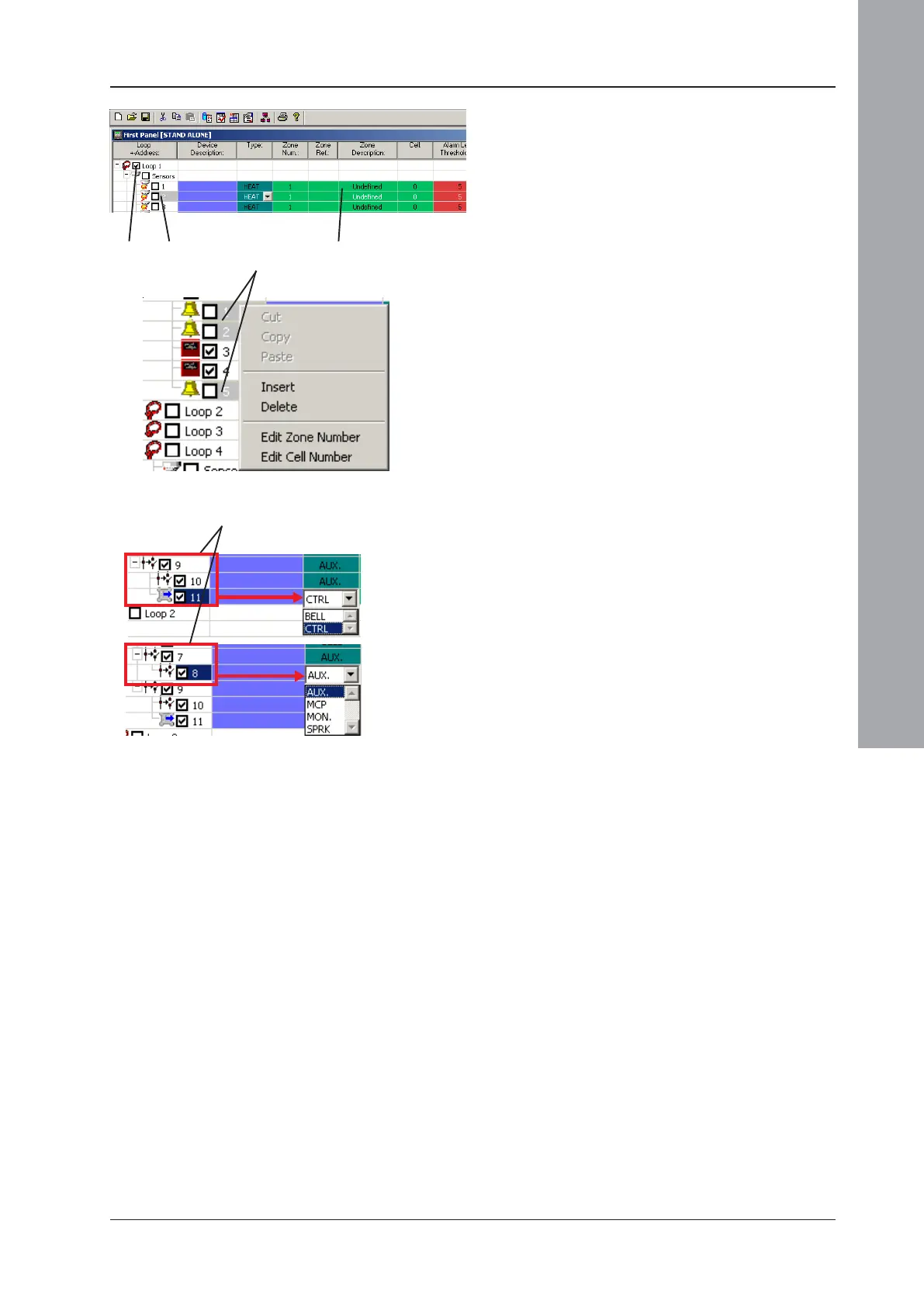

b. To edit a device address, in the loop display
click in the first column and press ‘Enter’.
Type a new loop address.
c. To move a device to another loop, highlight
the device and use Drag/drop (if enabled
on the ‘Edit’ menu) to move to (e.g.) ‘Sensor’
on the required loop, or use cut and paste.
d. To move a device within a loop, click on
the device in the Loop Address column,
press ‘Enter’, enter the new address and
then press ‘Enter’ again.
e. To delete a device: highlight the row in the
loop display and then choose ‘Delete’ from
the ‘Edit’ menu or right mouse-button
menu, or press the delete key.
f. Change loop protocol. Check the appropriate
boxe(s) to select OPAL protocol, either by loop
or individual loop devices (OPAL selection not
available for ION or VIEW sensors).
g. To select multiple devices hold down the
<Ctrl> key when making the selection. The
selections can be made across device type
and loop.
h. OPAL Multi-address modules.These
modules may be inserted, cut/copy and
pasted as with other loop devices.
However, these devices take up more than
one OPAL address: 2 for the M720 and 3
for the M721. Each input type may be
changed (see options shown at left). The
output of the M721 defaults as type CTRL
but can be changed to type BELL.
f g
M72n
Input(s)
M721
Output
h
