PW6K1ICE Wiring and Setup
Additional Mounting Info
rmation
PW6K1ICE Installation and Configuration Guide
,
Document
800-07985V1, Revision A
19

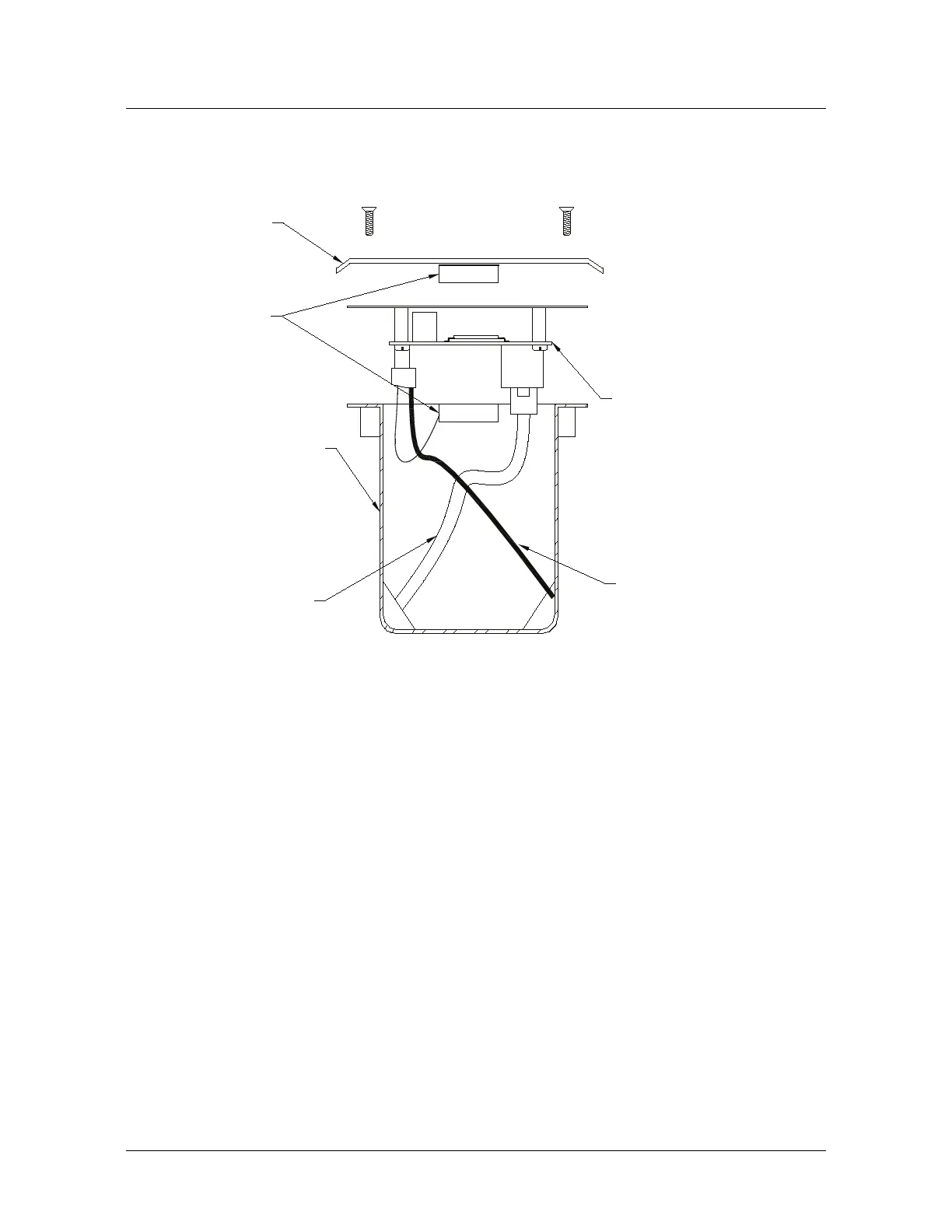

Figur
e 2-7: S
tainless S
teel Blank Cover
FIELD WIRING
PW6K1ICE WITH INCLUDED
MOUNTING PLATE
TO ETHERNET
NETWORK
OPTIONAL 3-GANG
JUNCTION BOX
OPTIONAL BLANK
COVER W/SCREWS
OPTIONAL MAGNETIC
TAMPER SWITCH
22
24
Table of Contents
Table of Contents
3
Overview
6
General UL-Compliance
7
Door Control
7
Access Control
7
Card Formats
7
Card Readers
8
Alarm Management
9
Warranty
9
Liability
9
FCC Compliance
9
PW6K1ICE Hardware
12
Terminal Connections
13
Jumper Configuration
14
DIP Switch Configuration
15
Factory Default Communication Parameters
15
Bulk Erase Configuration Memory
15
Input Power
16
Communication Wiring
16
Reader Wiring
16
Input Circuit Wiring
17
Relay Circuit Wiring
18
Memory Backup Battery
19
Status Leds
19
Specifications
20
Additional Mounting Information
22
Via Web Interface
25
Overview
26
Connecting to ACDSM for the First Time
26
Login
27
Security Certificate
28
Web Server Configuration
31
Home Screen
31
Network Settings Screen
32
Host Communication Screen
33
Device Info Screen
34
Users Screen
35
Auto Save Screen
36
Restore Default Screen
36
Load Certificate Screen
37
Initializing the System and Performing a System Download
38
Logout
40
