Honeywell Solaris 7980g User Manual

126 Solaris 7980g User Guide
EAN/JAN-8 Addenda
This selection adds 2 or 5 digits to the end of all scanned EAN/JAN-8 data. Default
= Off for both 2 Digit and 5 Digit Addenda.
EAN/JAN-8 Addenda Required
When Required is scanned, the scanner will only read EAN/JAN-8 bar codes that
have addenda. Default = Not Required.
Addenda Timeout
You can set a time during which the scanner looks for an addenda. If an addenda is
not found within this time period, the data can be either transmitted or discarded,
based on the setting you are using for EAN/JAN-8 Addenda Required. Set the
length (in milliseconds) for this timeout by scanning the bar code below, then set-

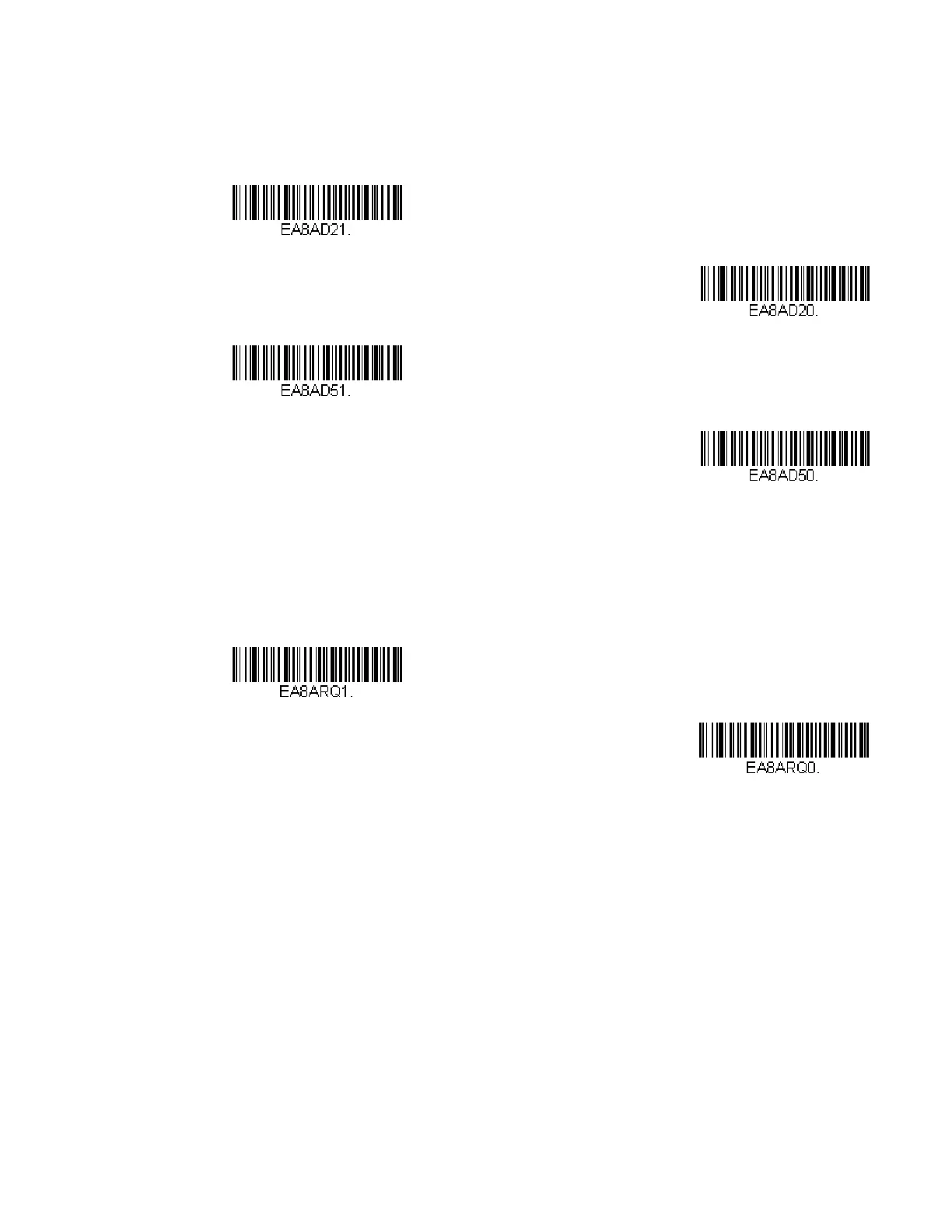

2 Digit Addenda On
* 2 Digit Addenda Off
5 Digit Addenda On
* 5 Digit Addenda Off
Required
* Not Required

Honeywell Solaris 7980g Specifications

General

Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power consumption	400 mA
Power source type	AC
AC adapter output voltage	5 - 5.2 V
USB version	2.0
Standard interfaces	Keyboard wedge, RS-232, USB
USB 2.0 ports quantity	1
Connectivity technology	Wired
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	CE, RoHS
Product color	Black
LED indicators	Status
Housing material	-
Programming function	Yes
International Protection (IP) code	IPX5
Sustainability certificates	RoHS
Type	Fixed bar code reader
Scanner type	1D/2D
Maximum scan area	0 x 190 mm
Yaw reading angle	-75 - 75 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, Intelligent Mail, JAN, MSI, PLANET, POSTNET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Codablock, Code 49, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	85 mm
Width	152 mm
Height	148 mm
Weight	539 g
