2 - GETTING STARTED
Smart LED indication
Table 11 Smart LED indication

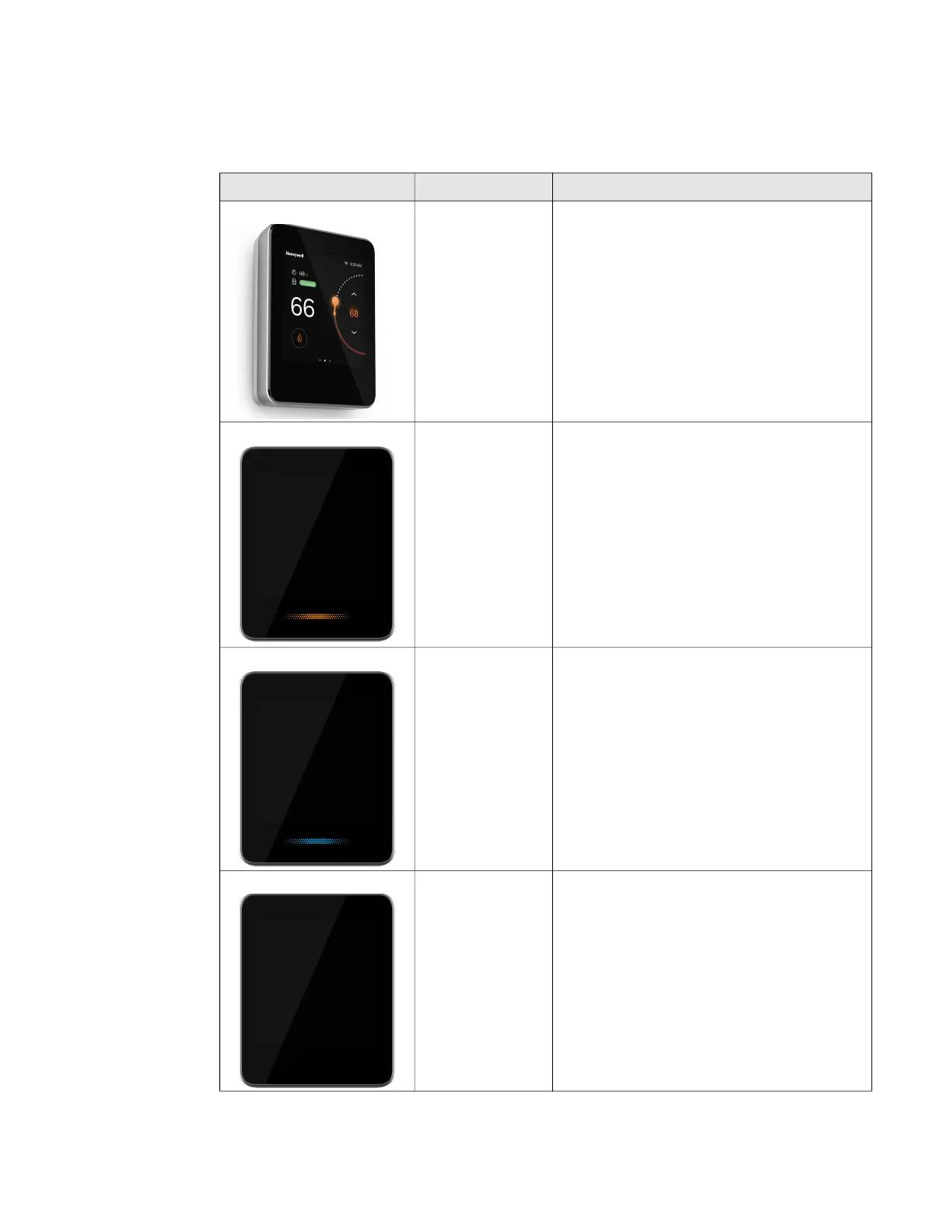

Display Stages LED, screen status and Description
Interact with touchscreen
• Screen ON
• LED Lighting OFF
Heating
The orange light pulses when in heating and
auto mode
• Screen OFF
• LED Lighting ON (Light stops pulsing
when indoor temperature reaches the
set point)
Cooling
The blue light pulsing when in cooling and auto
mode
• Screen OFF
• LED Lighting ON (Lighting stops
pulsing when indoor temperature
reaches the set point)
Off
• Screen OFF
• LED lighting OFF
