58 31-00400M-01 | Rev10-20
5 - MANAGING ALARMS
Unacknowledged Alarms
The alarm tab displays the alarms that have not been acknowledged by the user. If there are
unacknowledged alarms, the alert button will have a visual notification as per the severity of
the alarm.
To view the unacknowledged alarm
1. On the quick access and device management home-screen, tap the ALERT icon.
Alert page displays.

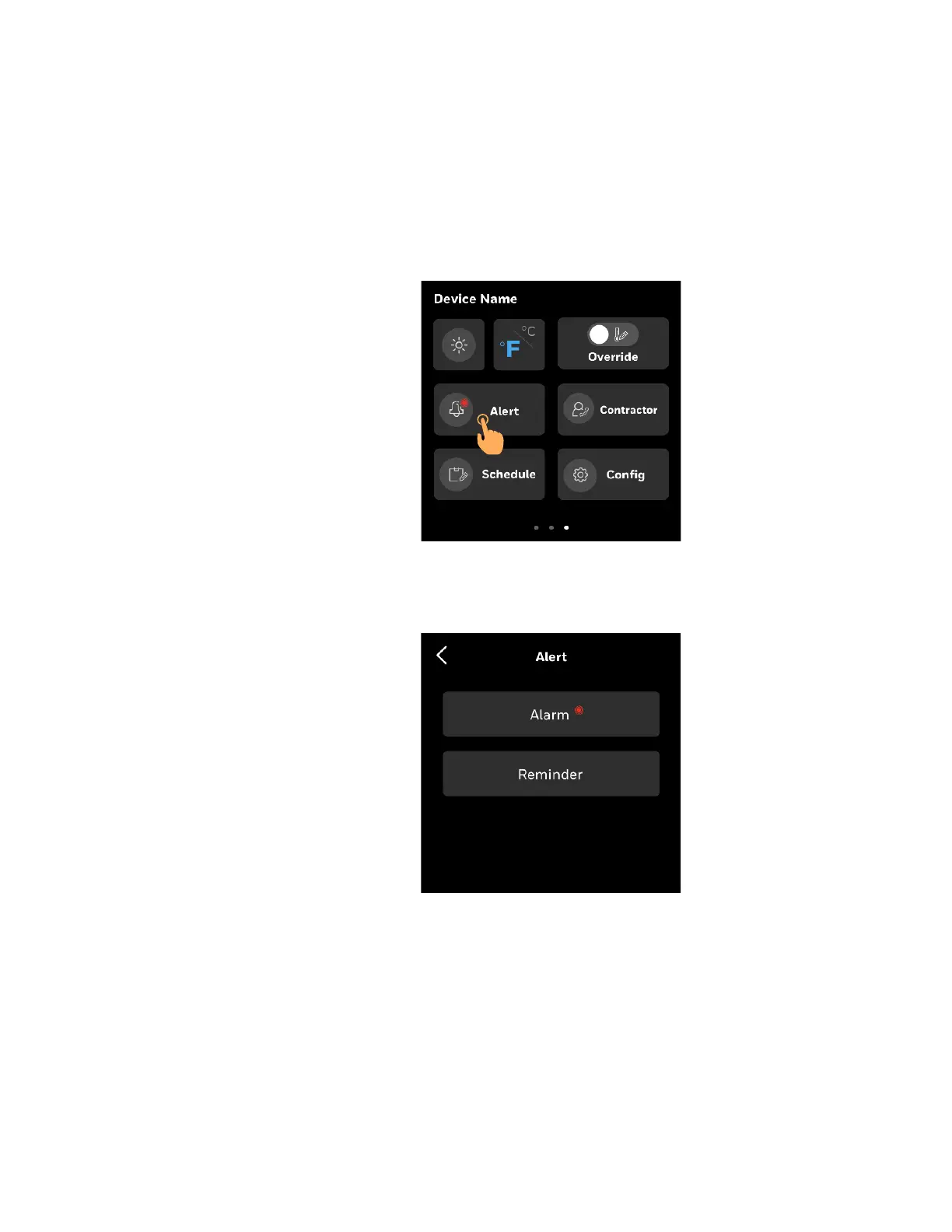

Figure 67 Home page - Alert Tab
2. The alert page appears. Select Alarms.
List of unacknowledged alarms displays.
Figure 68 Alert Preference - Alarm
Note: Under the ALARM tab, tap the Red, orange, or yellow colored Alarms. The relevant data points
list appears to acknowledge the alarms.
Red icon: Displays only the data points with High severity alarm.
Orange icon: Display only the data points with Medium severity alarm.
Yellow icon: Display only the data points with Low severity alarm.
