42 31-00400M-01 | Rev10-20
3 - INITIAL CONFIGURATION
Connecting through BACnet IP over Wi-Fi
The TC500A is BACnet/IP connected using a wireless connection to a Wi-Fi router/
access point.
In order to connect through BACnet IP over Wi-Fi
1. Tap BACnet IP

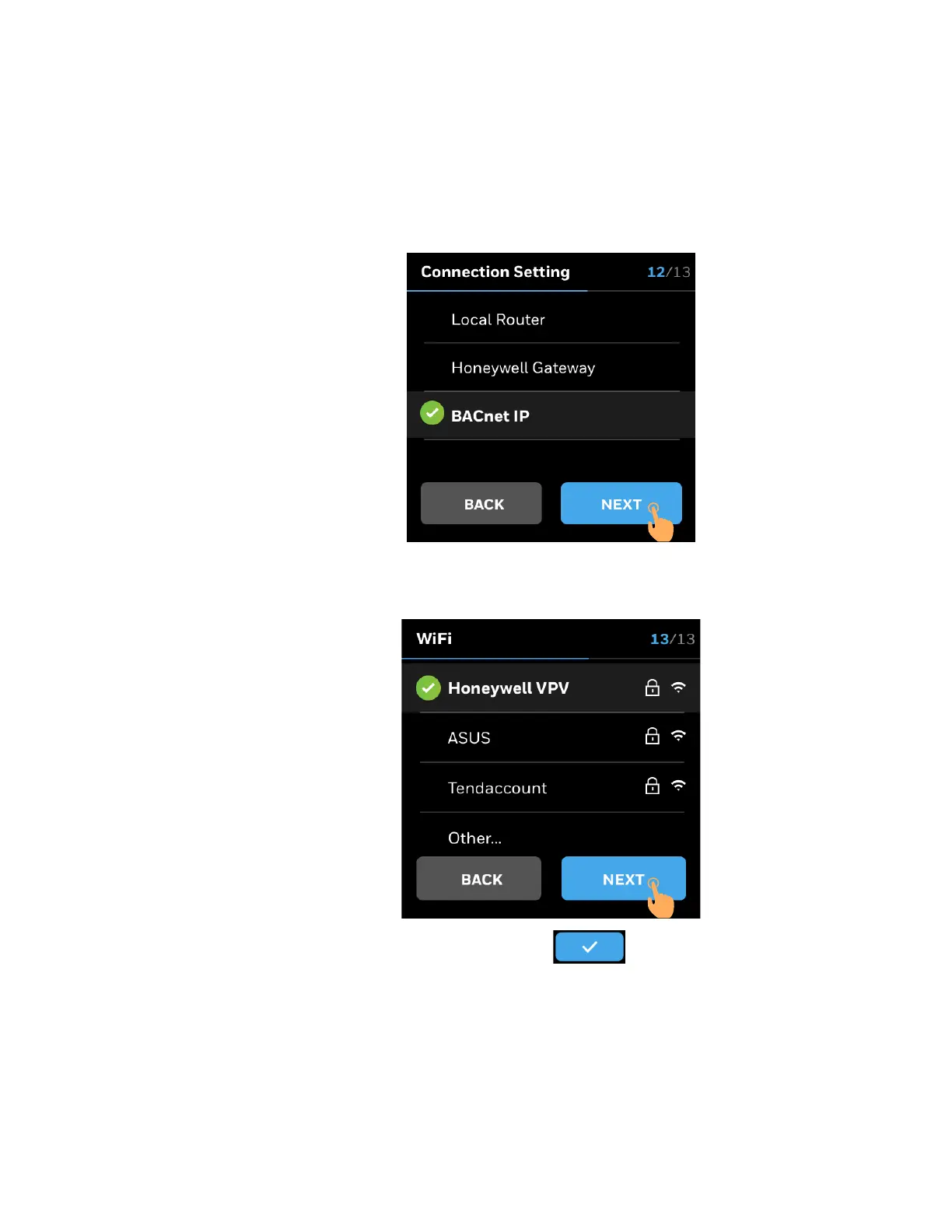

Figure 39 Select BACnet IP
2. User will be prompted to select from available networks.
Figure 40 Choose a network
3. Select the network, enter password and tap .
