CHAPTER 12: DESCRIPTION OF PARAMETER SETTINGS
63-4528—04 230

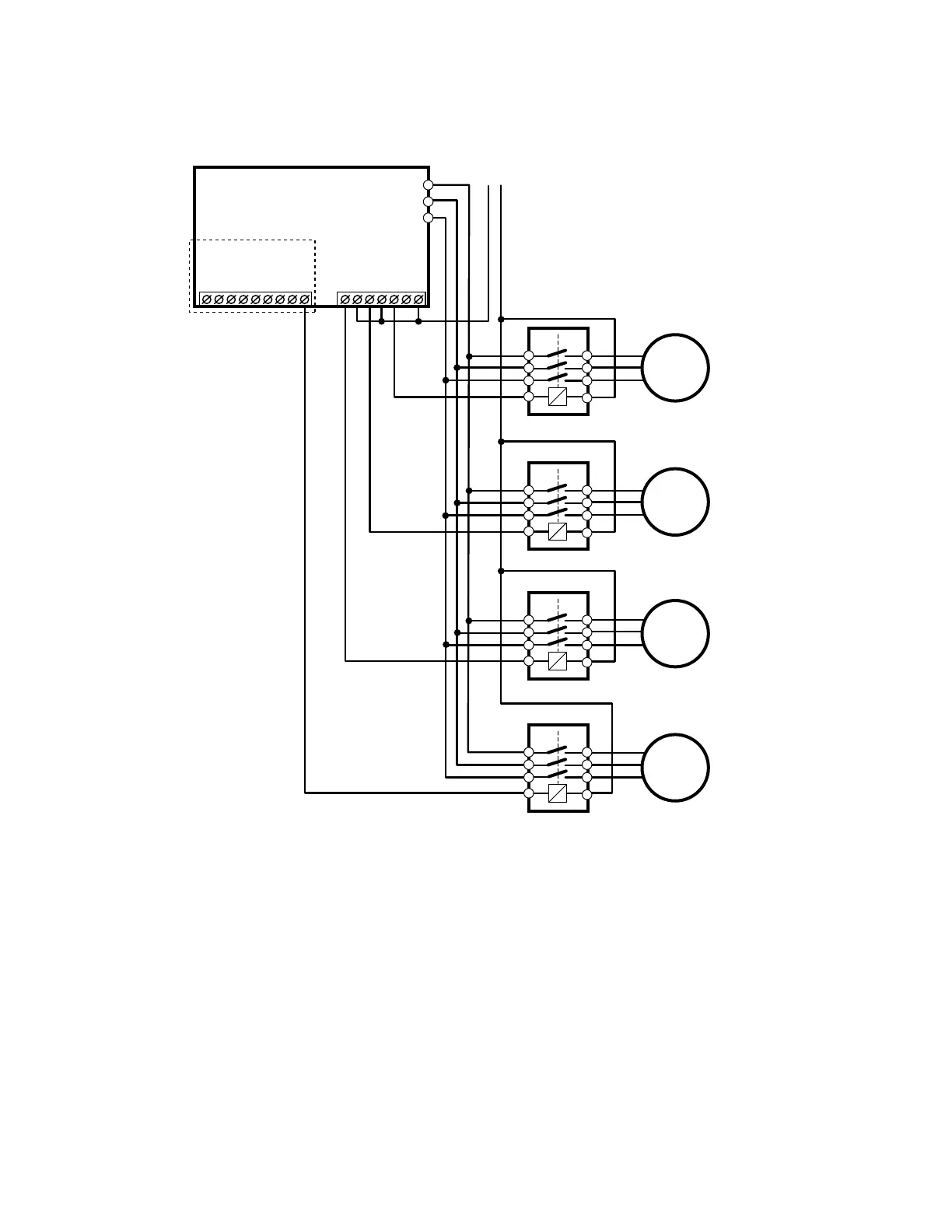

Wiring: Fixed Time Circulation (by time) Control can control up to 8 motors. The diagram below is an example of controlling 4
motors at the same time.
Fig. 3. Controlling 4 motors at the same time.
• Number of Motors: Maximum 8 motors. After setting number of motor to be connected at the same time, multi-function output
terminals will follow automatically the setting as shown in the table below.
10 – 01 Number of Motors to be connected
Factory Setting: 1
Settings 1 to 8
M1
VFD CORE
CONTACTOR
CONTACTOR
CONTACTOR
CONTACTOR
RY00
LN
WVU
M33767
M06
M05
M04
M03
M02
M01
RA3
RC3
RA2
RC2
RA1
RB1
RC1
M2
M3
M4
To Next Page
