Honeywell VFD CORE User Manual

CHAPTER 8: INSTALLATION OF THE OPTION CARDS
71 63-4528—04
Modbus TCP/IP communication card
Features
1. Supports Modbus TCP protocol
2. MDI/MDI-X auto-detect
3. Baud rate: 10/100Mbps auto-detect
4. E-mail alarm
5. VFD keypad/Ethernet configuration
6. Virtual serial port.
Product Introduction
Specifications

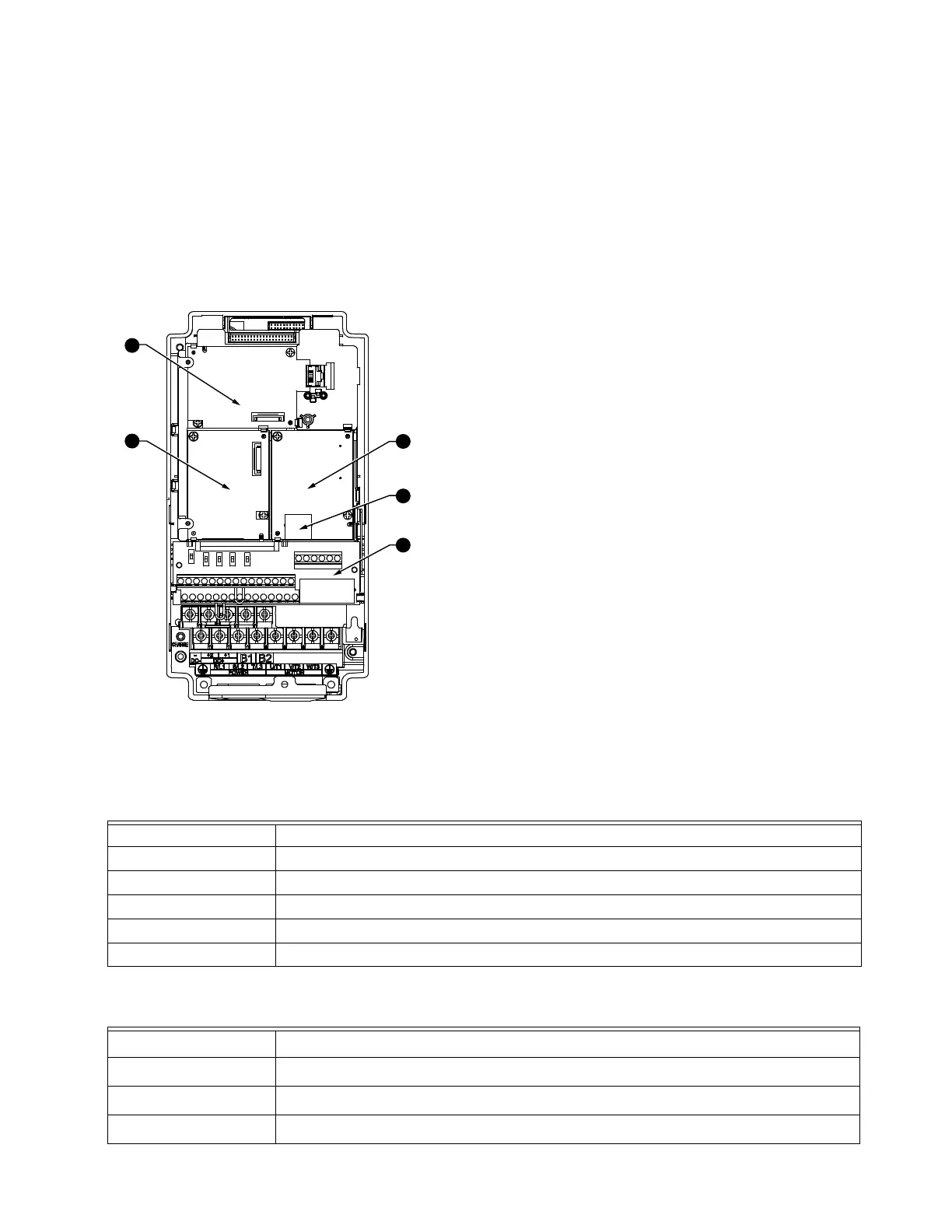

1. I/O CARD & Relay Card
2. No function
3. Comm. Card
4. RJ-45 connection port
5. Removable control circuit terminal
Network Interface
Interface RJ-45 with Auto MDI/MDIX
Number of ports 1 Port
Transmission method IEEE 802.3, IEEE 802.3u
Transmission cable Category 5e shielding 100M
Transmission speed 10/100 Mbps Auto-Detect
Network protocol ICMP, IP, TCP, UDP, DHCP, SMTP, MODBUS OVER TCP/IP, Honeywell Configuration
Electrical specifications
Power supply voltage 5VDC (provided by the VFD)
Insulation voltage 2KV
Power consumption 0.8W
Weight 25g
CMC-MOD01
1
2
M33571
3
5
4
