CHAPTER 8: INSTALLATION OF THE OPTION CARDS
63-4528—04 74
Basic Registers

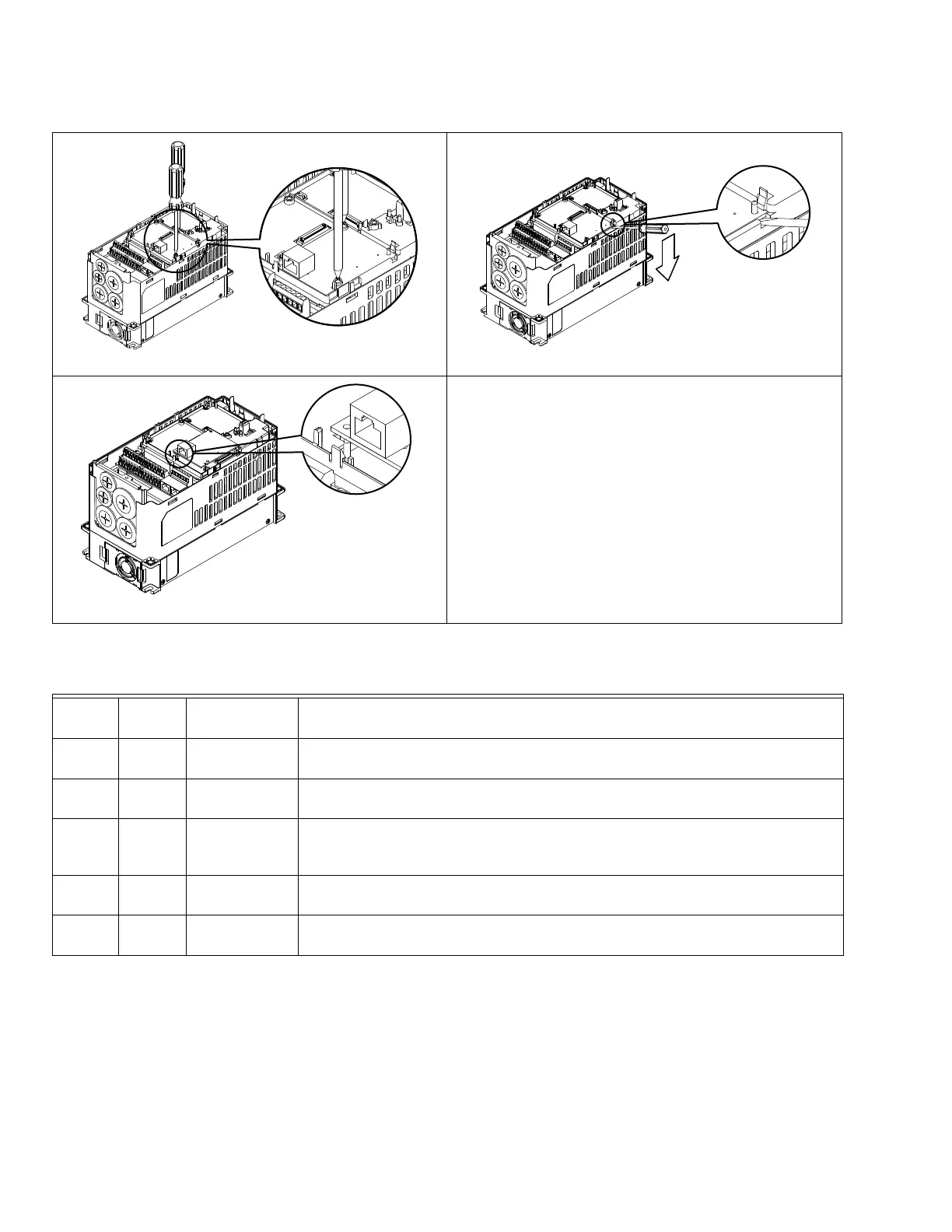

[Figure 6]
[
Figure 7]
[
Figure 8]
BR
number
Property Content Explanation
#0 R
Model name Set up by the system; read only. The model code of MODBUS TCP/IP
COMMUNICATION CARD=H’0203
#1 R
Firmware
version
Displaying the current firmware version in hex, e.g. H’0100 indicates the firmware
version V1.00.
#2 R
Release date of
the version
Displaying the data in decimal form. 10,000s digit and 1,000s digit are for “month”; 100s
digit and 10s digit are for “day”.
For 1 digit: 0 = morning; 1 = afternoon.
#11 R/W
Modbus
Timeout
Preset: 500 (ms)
#13 R/W
Keep Alive
Time
Preset: 30 (s)
