CHAPTER 8: INSTALLATION OF THE OPTION CARDS
63-4528—04 76
PROFIBUS DP COMMUNICATION CARD
Features
1. Supports PZD control data exchange.
2. Supports PKW polling VFD parameters.
3. Supports user diagnosis function.
4. Auto-detects baud rates; supports maximum 12Mbps.

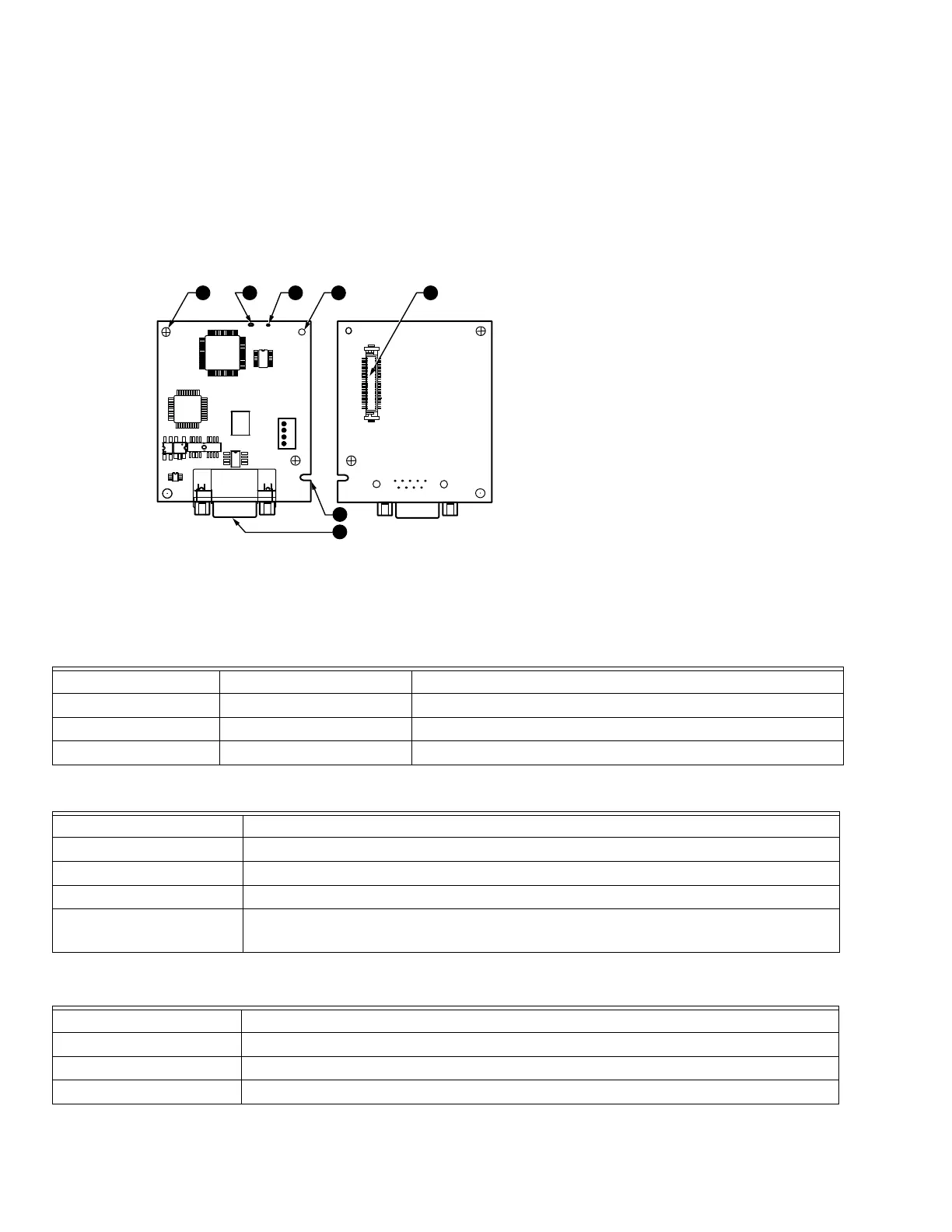

Product Introduction
Specifications
Communication
Electrical Specification
1. NET indicator
2. POWER indicator
3. Positioning hole
4. VFD connection port
5. PROFIBUS DP connection port
6. Screw fixing hole
7. Fool-proof groove
PROFIBUS DP Communication Connector
Interface DB9 Connector connector DB9
Transmission method High-speed RS-485 RS-485
Transmission cable Shielded twisted pair cable
Electrical isolation 500VDC 500VDC
Message type Data exchange periodically
Module name PROFIBUS DP COMMUNICATION CARD
GSD document 08DB.GSD
Company ID 08DB(HEX)
Serial transmission speed
supported (auto-detection)
Support 9.6kbps; 19.2kbps; 93.75kbps; 187.5kbps; 500kbps; 1.5Mbps; 3Mbps; 6Mbps;
12Mbps (bits per second)
Power supply voltage 5VDC (provided by VFD)
Insulation voltage 500VDC
Power consumption 1W
Weight 28g
