40
If the numbers are from the rhythm table, the
number for the next page start is the following
or one number back.
When entering 999 the numbers in the elds for
left and right must normally be interchanged.
However, one must always make sure
the the valves for the other side are
installed accordingly.
For some working width one can choose from
overdrilling with half working width, "joining
travel" or switching off of partial widths of
sprayers.
The sections that had been overdrilled are
marked shaded.
The selection of these rhythms depends on the
installation position of the valves in the machine.

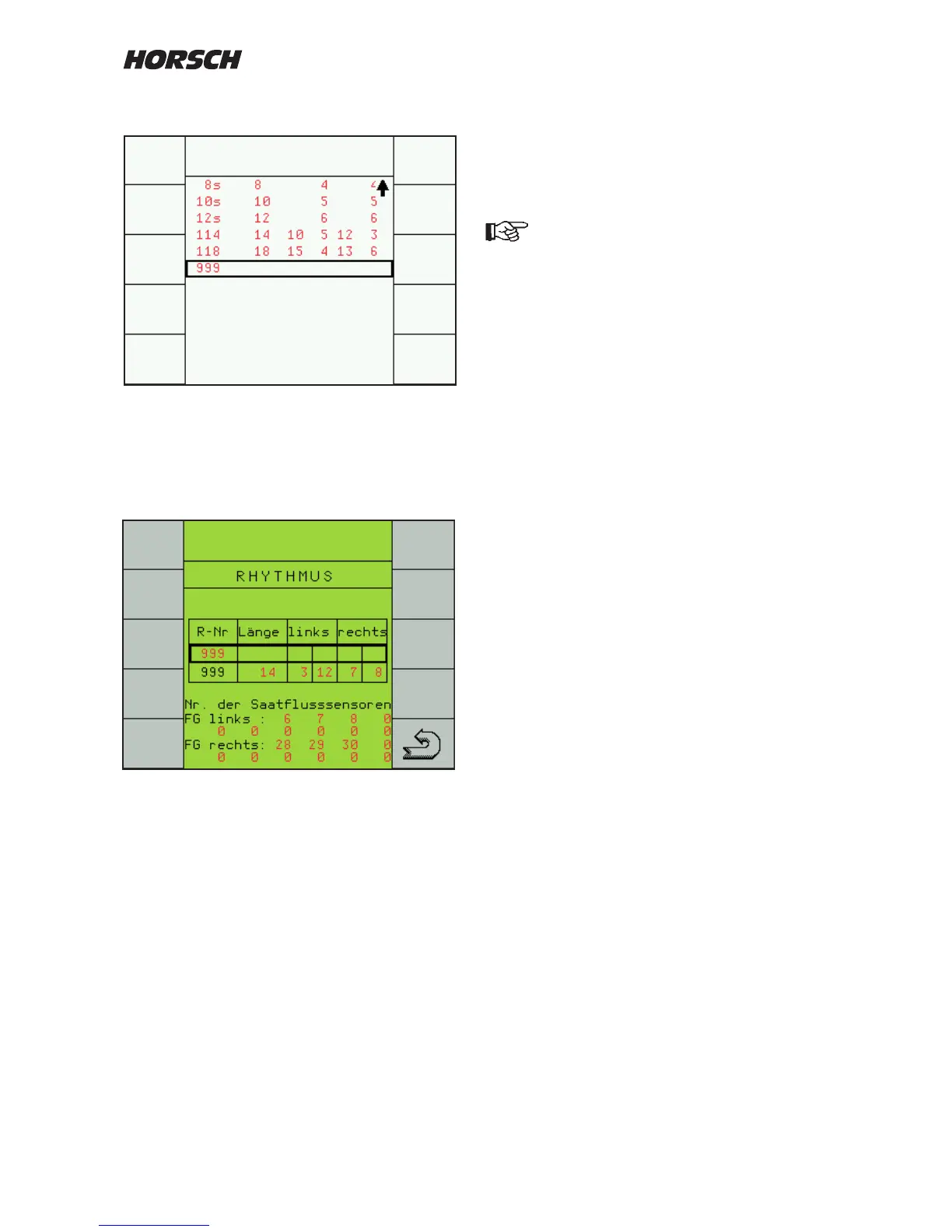

Free rhythm input
Selection 999 from the computer table activates
the programmable rhythm.
Length of rhythm and bout number must be
entered into the second line.
All rhythm numbers are specied for starting
work from the left hand headland of a eld.
When starting work from the right hand
headland of eld the numbers must be changed
accordingly.
