Joining of hoppers
On twin hopper machines the hopper for seed
and fertilizer can be mutually used for drilling
seed.
After choosing "2 x seed" in the fertilizer control
menu a second line "hopper ratio" will be
displayed.
Here one must enter the tank sizes relative to
one another.
After the calibration samples taken from both
metering units the computer will use these sizes
to calculate the required speeds for both motors,
to make sure that both hoppers will be empty at
the same time.

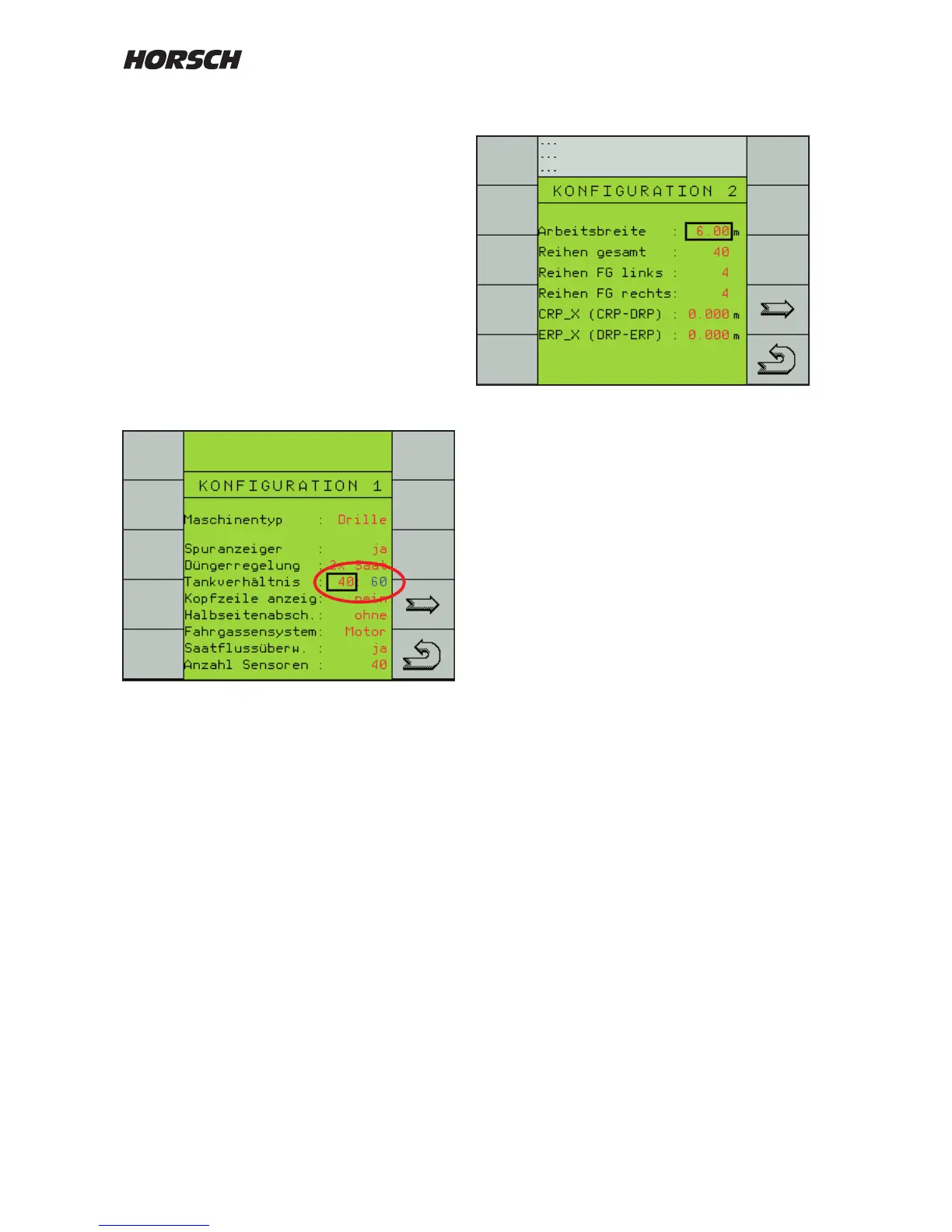

Enter the tank size ratio
Conguration 2
Working width
Enter the machine width in metres with two
decimal digits.
Total rows
Enter the number of drill coulters.
This input is required for the calculation of
quantity reduction with switched tram line.
Rows FG left
Enter the number of seed hoses in the left
machine side.
Rows FG right
Enter the number of seed hoses in the right
machine side.
