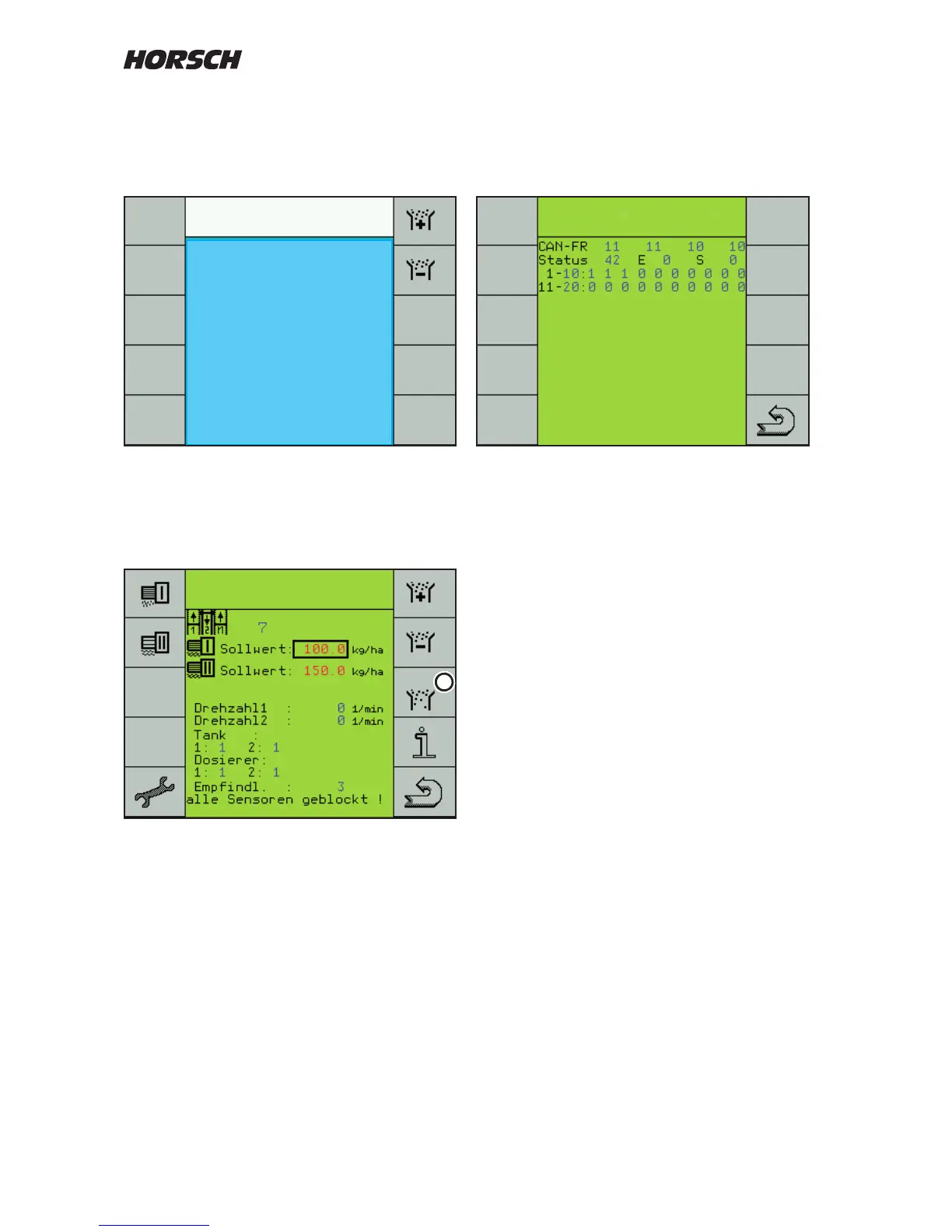

Seed ow diagnose
The seed 󰘱ow diagnose indicates the blocked
sensors, but also defective sensors or broken
cables.
In the 󰘰rst line the "CAN-Frames" and in the
second line the status is counted. As long
as these continue to count the monitoring is
functioning.
At "E" the type of fault is displayed, a cable
breakage or blockage with "1". The number
"9" appears when the system attempts to re-
establish the connection.
At "S" the last functioning sensor is indicated.
The fault or broken cable must be located after
this sensor.
The bottom section shows the operating status
of each sensor. The 󰘰gure 1 represents each
sensor without fault. Blocked sensors are
indicated with "0".
After correcting a fault it will take up to 1 minute
until the current operating status is displayed
again.
Alarm message
In case of blockage or quantity deviations the
message "No seed 󰘱ow at sensor XX" will be
displayed.
If several hoses are blocked only the 󰘰rst number
of the blocked hoses will be indicated in the
alarm.
The other numbers of blocked hoses are
displayed on the third work page.
Key (4) can be used to switch into the seed 󰘱ow
system for trouble shooting.
No
seed 󰘱ow
sensor 3
