7

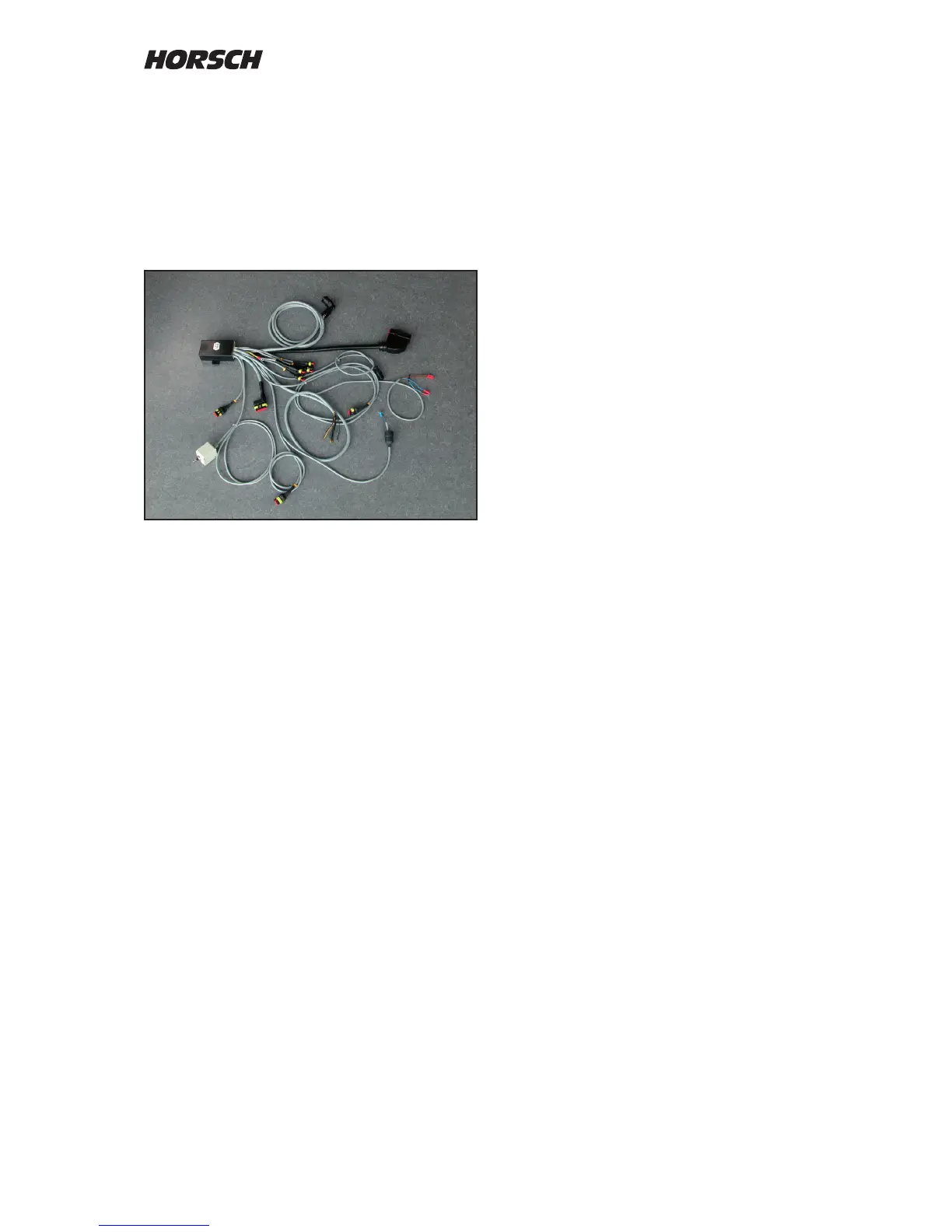

Wiring loom of machine
The wiring loom is adapted to match the
corresponding machine type and prefabricated
with plugs for all equipment variants.
In order to avoid malfunctions caused by dirt,
all open plugs must be closed with blind caps
or similar.
Wiring loom
Pin assignment in all 3 pin plugs
1 - ground cable, white
2 + plus cable, brown
3 signal cable, green
Plug designations:
A Work signal
B1 Bridging metering unit 1
B2 Bridging metering unit 2
D1 Speed monitoring, shaft 1
D2 Speed monitoring, shaft 2
G Fan
H Horn
R Radar - speed
S Signal middle position of half width
SV Coulter pressure adjustment
T1 Filling level monitoring seed hopper 1
T2 Filling level monitoring seed hopper 2
K Ball valve (liquid fertiliser)
D Flow sensor (liquid fertiliser)
2 pole at plug with diode - shut-o valve
Cable 8 pole automatic tram line control set
to "Magnet".
1 + Valves right
2 + Valves right
3 + valves left
4 + valves left
5 + Pre emergence markers right
6 + Pre-emergence markers left
7 - Ground all
8 - Ground all
Cable 8 pole automatic tram line control set
to "Motor".
1 + / - Motor right
2 - / + Motor right
3 + / - Motor left
4 - / + Motor left
5 + Pre emergence markers right
6 + Pre-emergence markers left
7 - Ground
8 - Ground
6 pole hydraulic control, "Lift", "Wings" and
"Bout marker".
1 + Bout marker left
2 + Bout marker right
3 + Lifting / lowering
4 + Wings
5 - Ground all
6 - Ground all
5-pin half width control
1 Adjustment motor + / -
2 Adjustment motor - / +
3 Signal right
4 Signal left
5 Signal output
7-pin Motor metering drive
1 - blue
2 + red
3 white
4 brown
5 green
6 yellow
