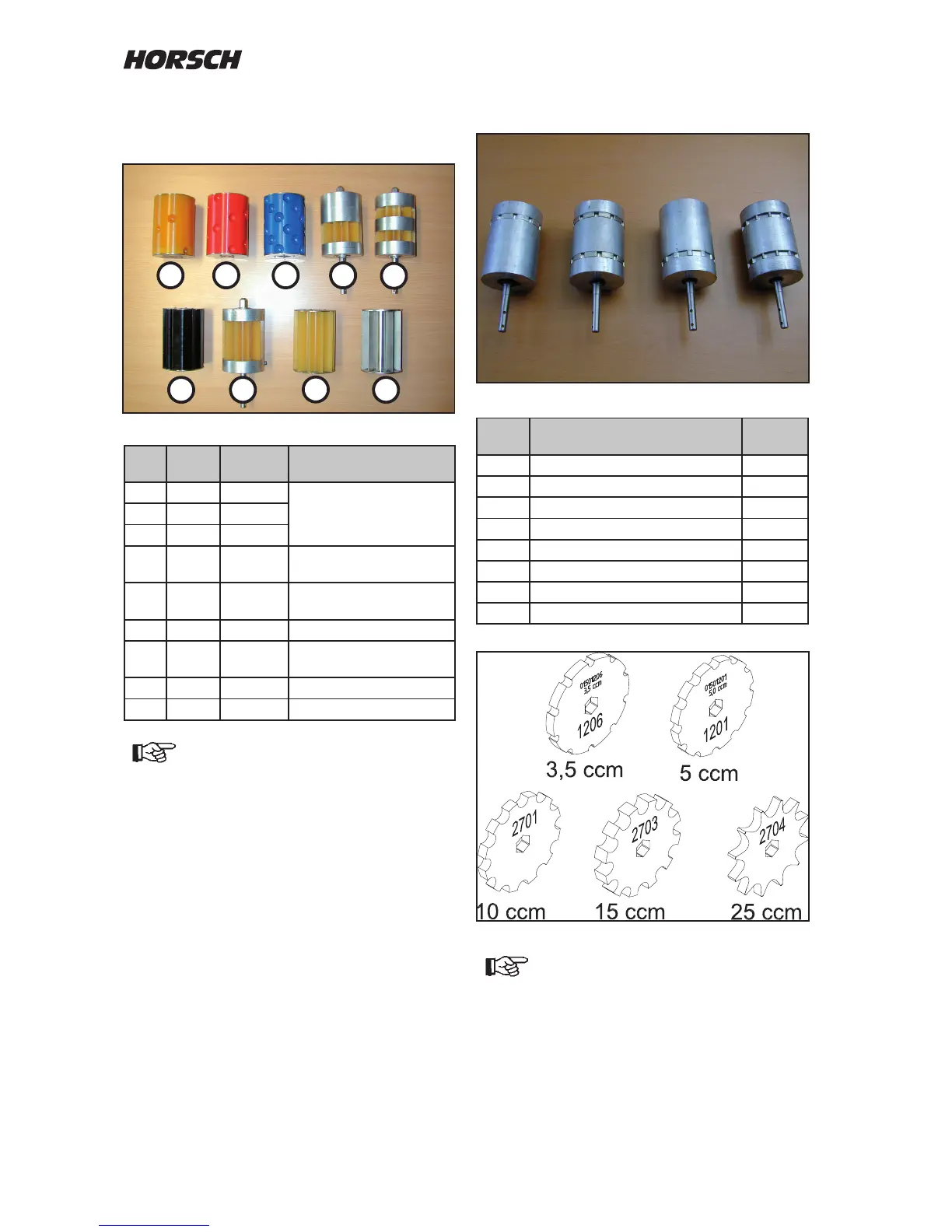

horsch DrillManager - Rotor Selection

24
Rollers for small seeds
Size
cm³
Cell shape / cell size Number
of cells
3.5 half-round, radius 4 mm 10
7 2 cell discs 3.5 cm³
5 Groove depth approx. 19 x 3 mm 12
10 2 cell discs 5 cm³
10 Groove depth approx. 23 x 5 mm 12
20 2 cell discs 10 cm³
15 U-shape, radius 7 mm 12
25 V-shape, radius 7 mm 12
On machines with double Venturi area
and 2 seed towers you may only use
rotors with 2 cell discs.
Otherwise the seed is unevenly
distributed to the two halves.
5
1
3
8
7
6
2
4
4a
Rotor selection
Roller for seed and fertiliser
No. Size
cm³
Colour
1 20 yellow
- suitable for maize
- not suitable for beans
and solid fertilisers.
2 40 red
3 100 blue
4
170 yellow /
alu
4a 170
yellow /
alu
2 x 85 cm³ for double
Venturi area
5 250 black
6
320 yellow /
alu
7 500 yellow
8 800 metal
On machines with double Venturi area and
2 seed towers the rotor 4a (2 x 85 cm³)
must be used when using the type
170 rotor.
Otherwise the seed is unevenly
distributed to the two halves.
