28 INSTALLATION MANUAL
ELECTRICAL CONNECTIONS
A licensed electrician must perform the installation in compliance
with local rules and regulations.
Observe the color coding of the wires. Wrong connection may cause
electric shock. Yellow/green = earth connection, blue = neutral
To ensure that the oven can be disconnected during installation and
repair, an approved plug outlet or safety cut-out must be located
close to the oven. The safety cut-out must be able to automatically
cut o all poles with a total distance of break of at least 3 mm. Each
of the two units in a stacked arrangement (CombiPlus) must have its
own plug outlet or safety cut-out.
Improper electrical installation will invalidate your warranty.
VISUAL COOKING II SMART EDITION

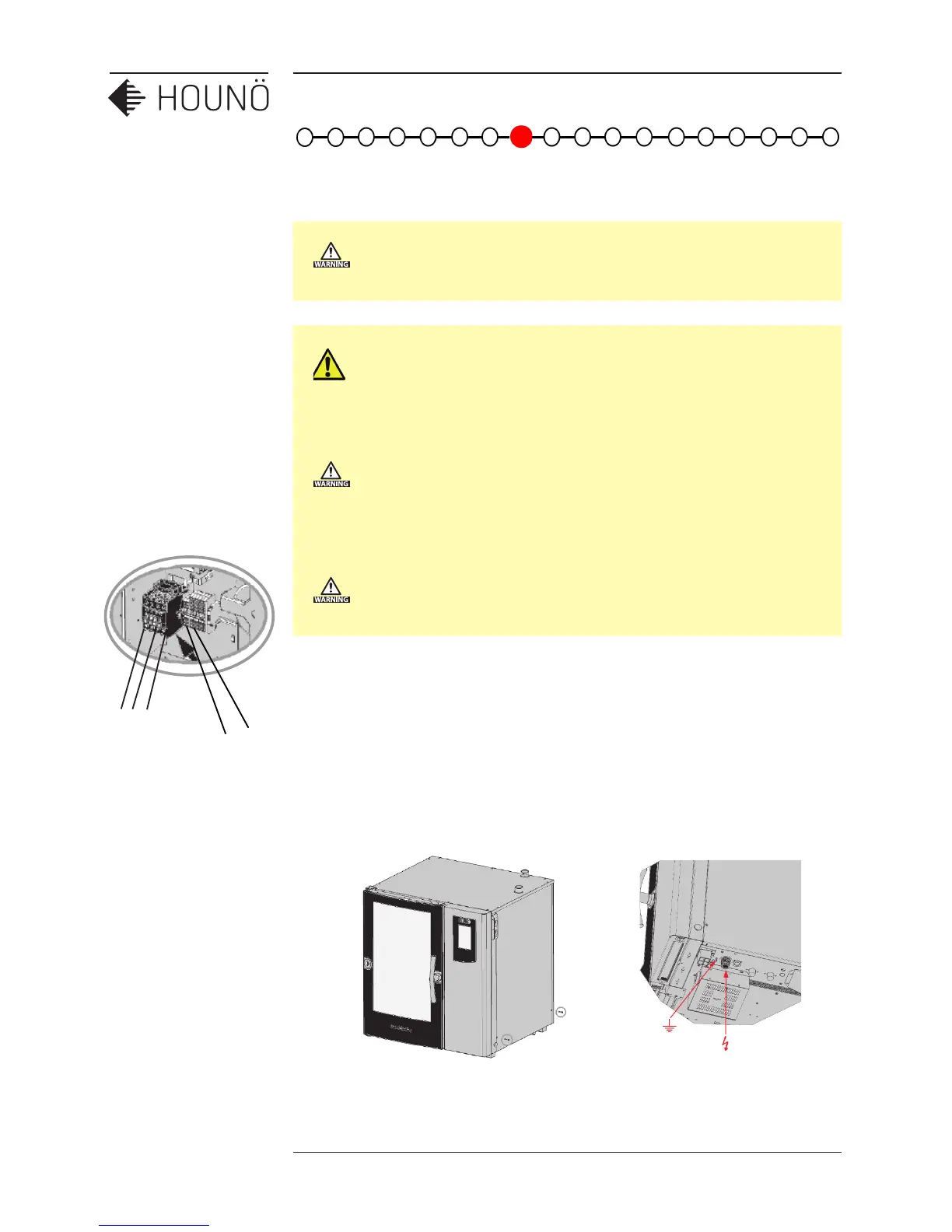

• The wiring diagram is located in the bottom of front panel.
• The terminal/contactor for the electrical connection is located behind the right
side plate. You have to remove the side plate, and then insert the main power cable
through the strain relief at the bottom of the oven.
N
PE
L1 L2 L3
