HOUNO B - Page 31

INSTALLATION MANUAL 31
COMBISLIM II

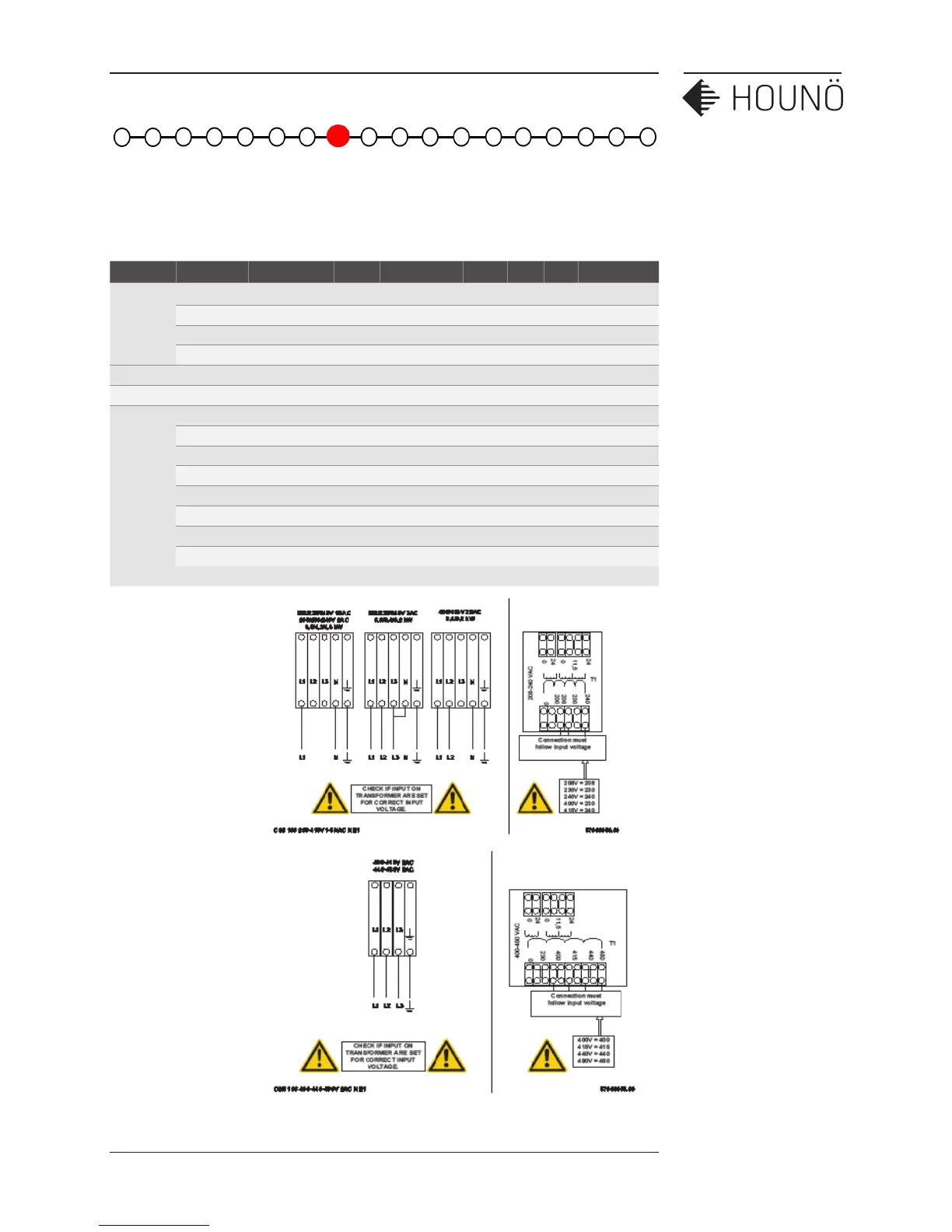

POWER CONFIGURATION 23.06
Configuration Element Power Phase Power KW Hz Amp Fuse Cable size mm2
1.
HE1 208/230/240 1NAC 2,7/3,3/3,6 50/60 16 20 2,5
HE1 208/230/240 2AC 2,7/3,3/3,6 50/60 16 20 2,5
HE1 208/230/240 3AC 5,4/6,6/7,2 50/60 31 35 4
HE1 400/415 2NAC 6,6/7,2 50/60 16 20 2,5
2. HE1 400/415 2AC 5,4/5,8 50/60 16 20 2,5
3. HE1 440/480 2AC 5,4/6,5 50/60 16 20 2,5
4
HE2 208/230/240 1NAC 1,8/2,2/2,4 50/60 11 16 2,5
HE2 208/230/240 2AC 1,8/2,2/2,4 50/60 11 16 2,5
HE2 208/230/240 1NAC 3,6/4,4/4,8 50/60 21 25 4
HE2 208/230/240 2AC 3,6/4,4/4,8 50/60 21 25 4
HE2 208/230/240 1NAC 5,4/6,6/7,2 50/60 31 35 6
HE2 208/230/240 2AC 5,4/6,6/7,2 50/60 31 35 6
HE2 208/230/240 3AC 5,4/6,6/7,2 50/60 19 25 4
HE2 400/415 3AC 8,4/9,2 50/60 11 16 2,5
HE2 400/415 3NAC 8,4/9,2 50/60 11 16 2,5
