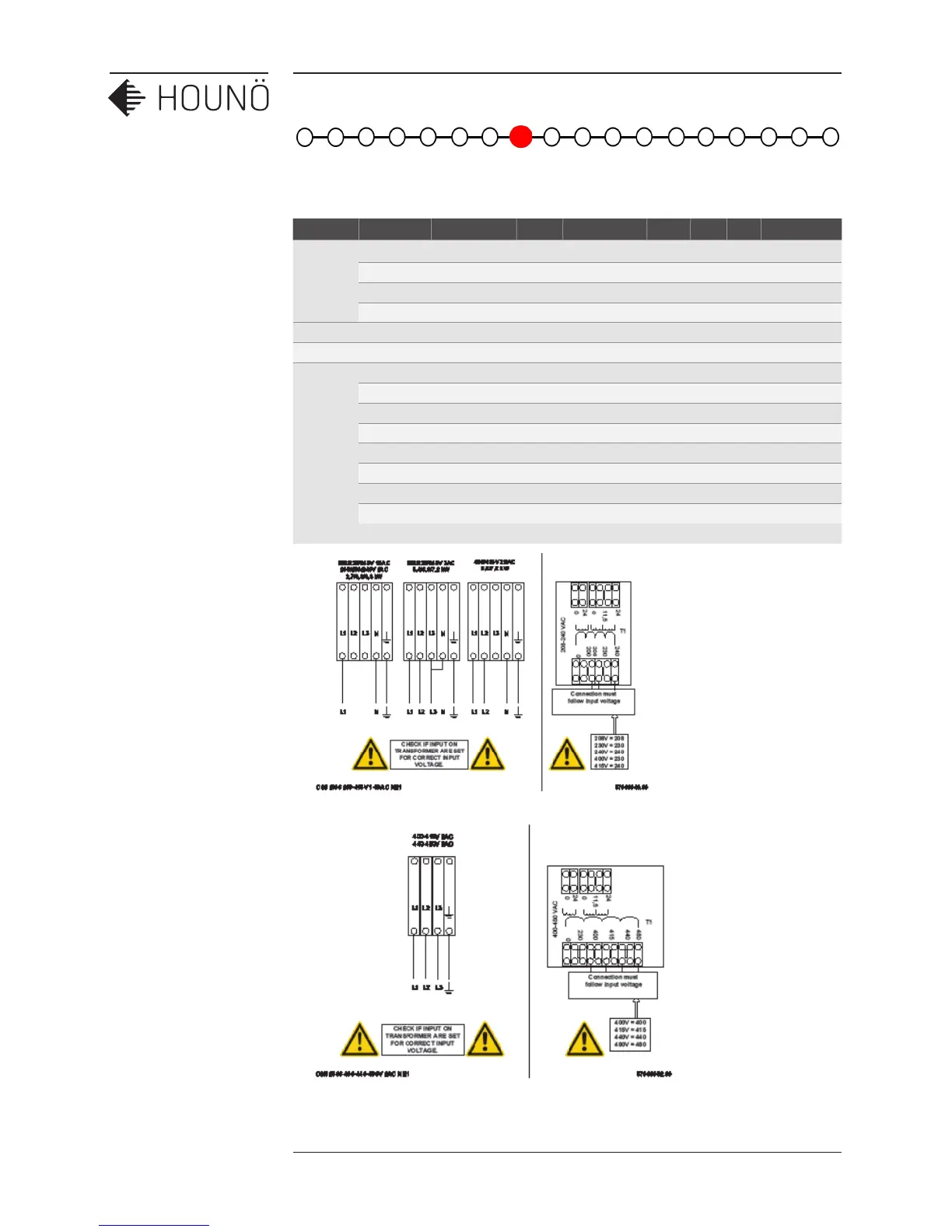

32 INSTALLATION MANUAL
POWER CONFIGURATION 1.06
Configuration Element Power Phase Power KW Hz Amp Fuse Cable size mm2
1.
HE1 208/230/240 1NAC 3,5/4,2/4,6 50/60 20 25 2,5
HE1 208/230/240 2AC 2AC 3,5/ 4,2/ 4,6 50/60 20 25 2,5
HE1 208/230/240 3AC 6,9/8,4/9,2 50/60 40 50 6
HE1 400/415 2NAC 8,4/9,2 50/60 20 25 2,5
2. HE1 400/415 2AC 8,4/9,2 50/60 20 25 2,5
3. HE1 440/480 2AC 6,9/8,3 50/60 19 25 2,5
4
HE2 208/230/240 1NAC 2,3/2,8/3,1 50/60 14 20 2,5
HE2 208/230/240 2AC 2,3/2,8/3,1 50/60 14 20 2,5
HE2 208/230/240 1NAC 4,6/5,6/6,1 50/60 27 35 4
HE2 208/230/240 2AC 4,6/5,6/6,1 50/60 27 35 4
HE2 208/230/240 1NAC 6,9/8,4/9,2 50/60 39 50 10
HE2 208/230/240 2AC 6,9/8,4/9,2 50/60 39 50 10
HE2 208/230/240 3AC 6,9/8,4/9,2 50/60 24 35 4
HE2 400/415 3AC 8,4/9,2 50/60 14 20 4
HE2 400/415 3NAC 8,4/9,2 50/60 14 20 4
