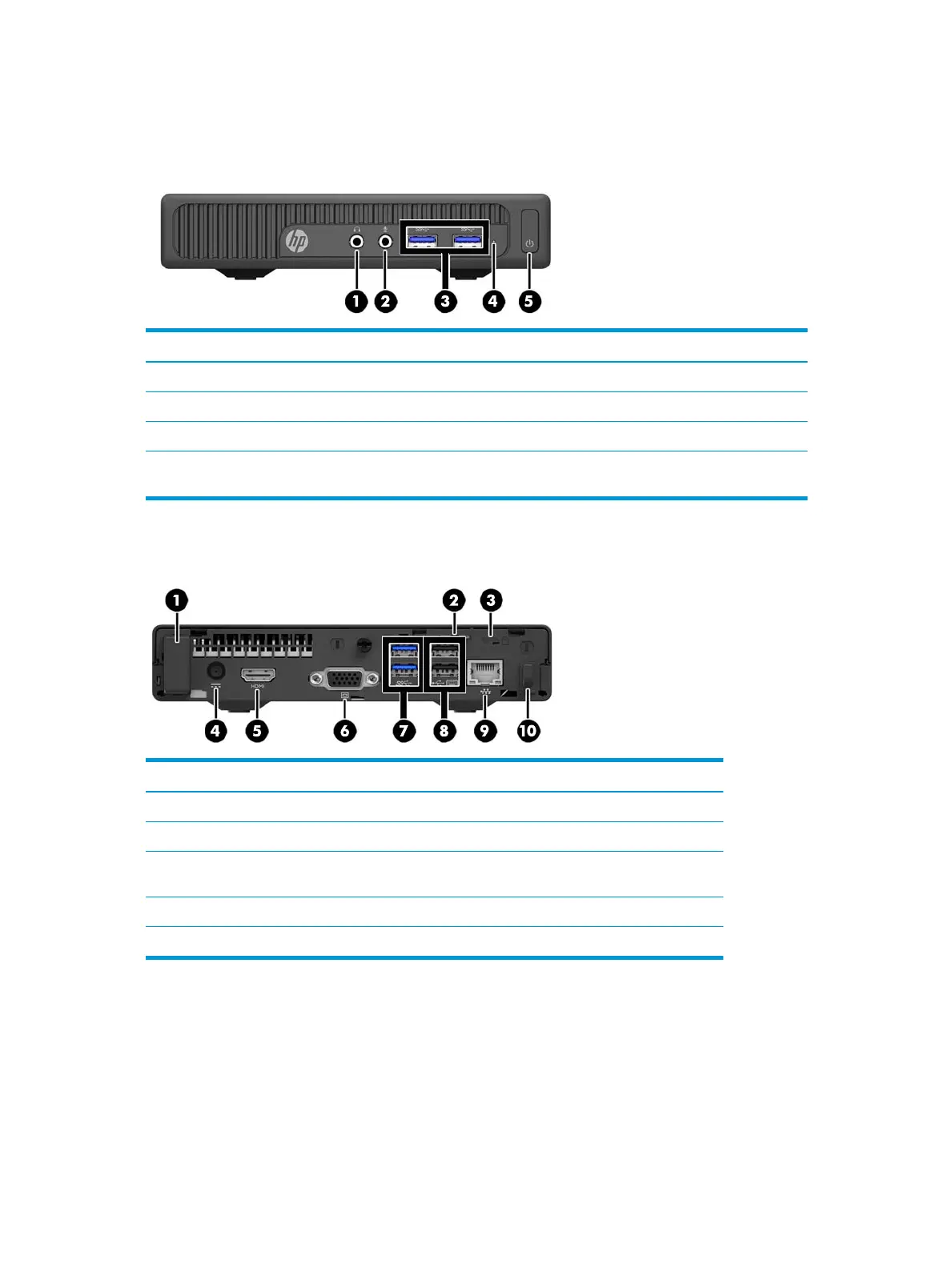

Front panel components
Drive conguration may vary by model.
Front panel components
1 Audio-out (headphone) jack 4 Hard drive activity light
2 Audio-in (microphone) jack 5 Power button
3 USB 3.0 ports
NOTE: The Power On light is normally white when the power is on. If it is ashing red, there is a problem with the
computer and it is displaying a diagnostic code. Refer to the Maintenance and Service Guide to interpret the code.
Rear panel components
Rear panel components
1 Optional antenna cover 6 VGA monitor connector (black)
2 Padlock loop 7 USB 3.0 ports (blue)
3 Security cable slot 8 USB 2.0 ports (black) with keyboard
wakeup function
4 Power connector for the AC adapter 9 RJ-45 (network) jack
5 HDMI monitor connector 10 Power supply cord retainer clip
2 Chapter 1 Product features
