HP 260 G2 - Access Panel

Access panel
1. Prepare the computer for disassembly (Preparation for disassembly on page 13).

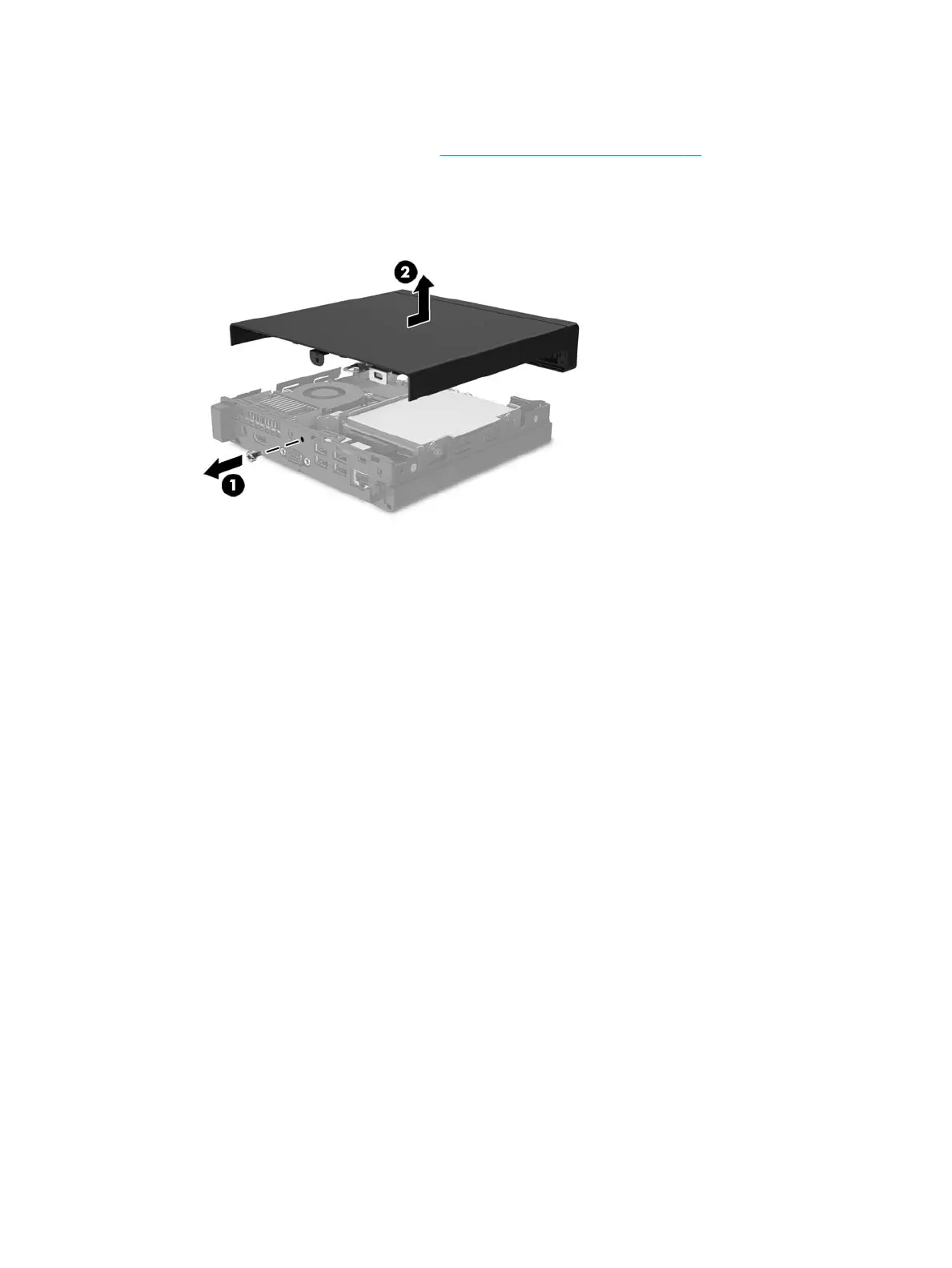

2. Remove the screw on the rear of the computer (1), and then slide the panel forward and lift if o the
computer (2).
To install the access panel, reverse the removal procedure.
14 Chapter 4 Removal and replacement procedures
