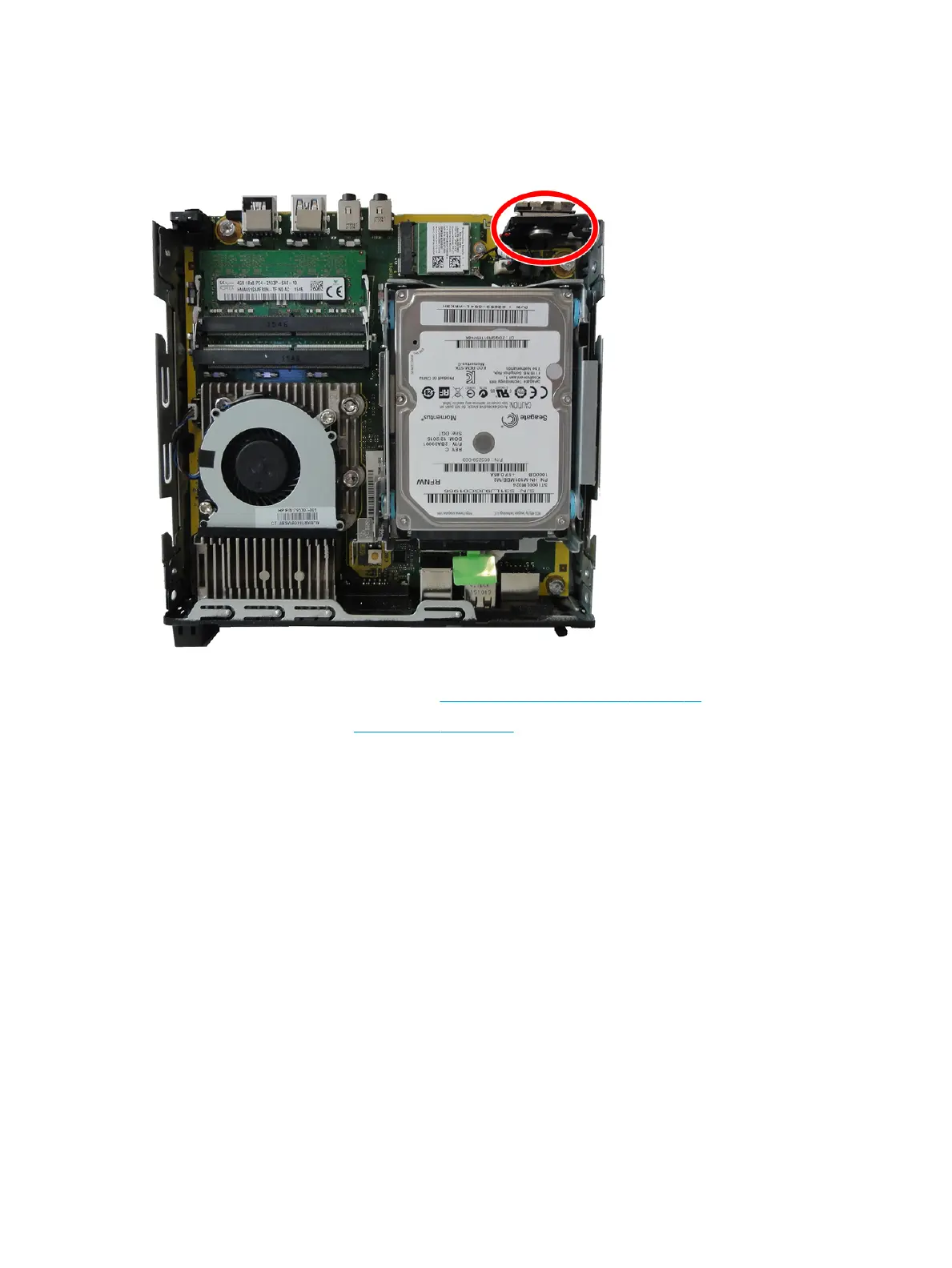

Speaker
A single speaker is located behind the front bezel. It is secured by one plastic pin. A wireless antenna
transceiver mounts to the front of the speaker assembly.
To remove the speaker:
1. Prepare the computer for disassembly (Preparation for disassembly on page 13).
2. Remove the access panel (Access panel on page 14).
3. Disconnect the speaker cable from the system board connector (1).
4. From the front of the computer, remove the pin that secures the speaker to the chassis (2).
22 Chapter 4 Removal and replacement procedures
