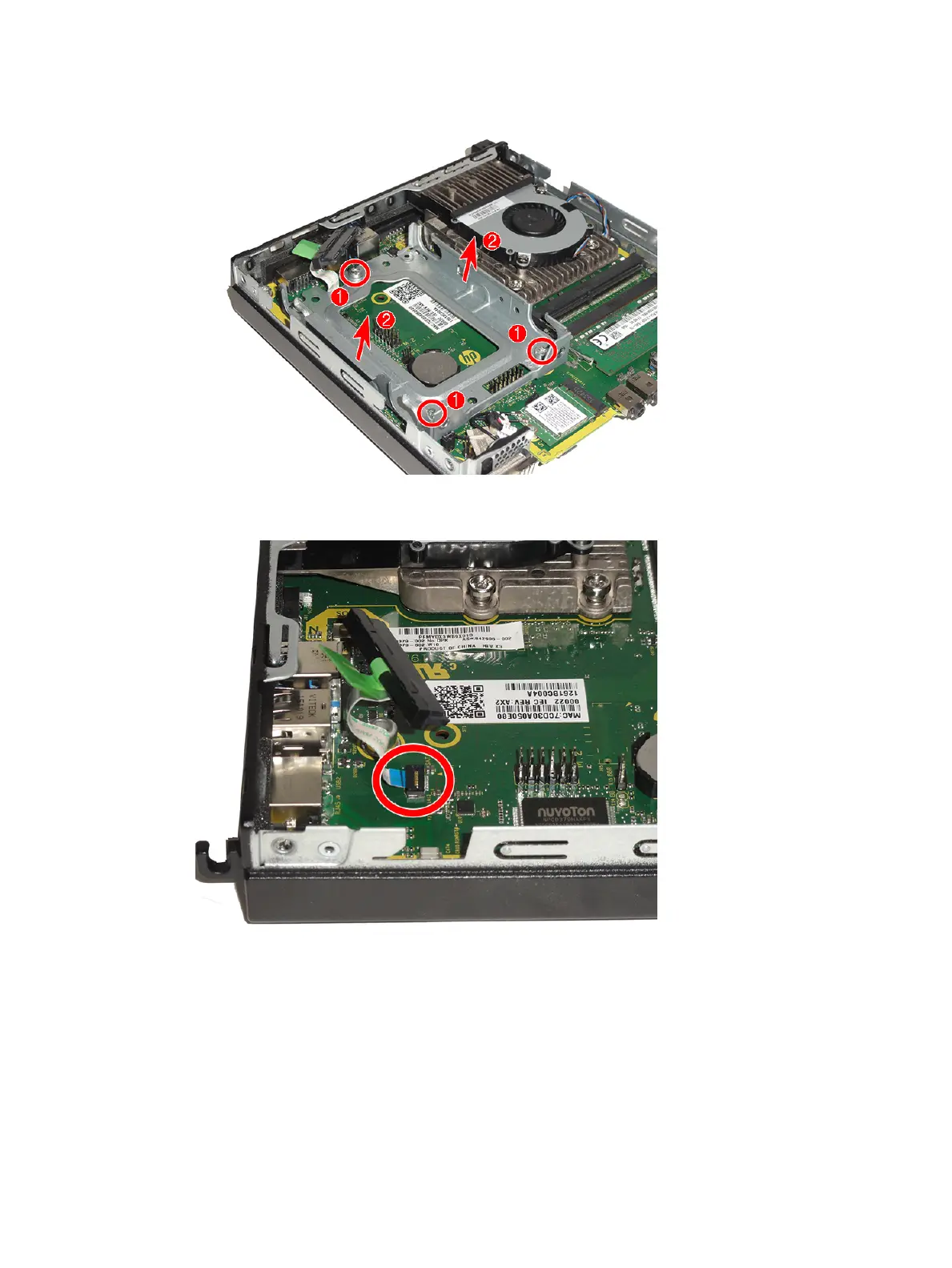

5. Remove the drive cage from the computer to access the drive cable connector under the drive cage (2).
6. Disconnect the drive connector cable from the SATA0 connector on the system board, and then remove
the connector/cable from the computer.
To install the drive cage and drive cable, reverse the removal procedures.
Drive cage and drive cable 29
