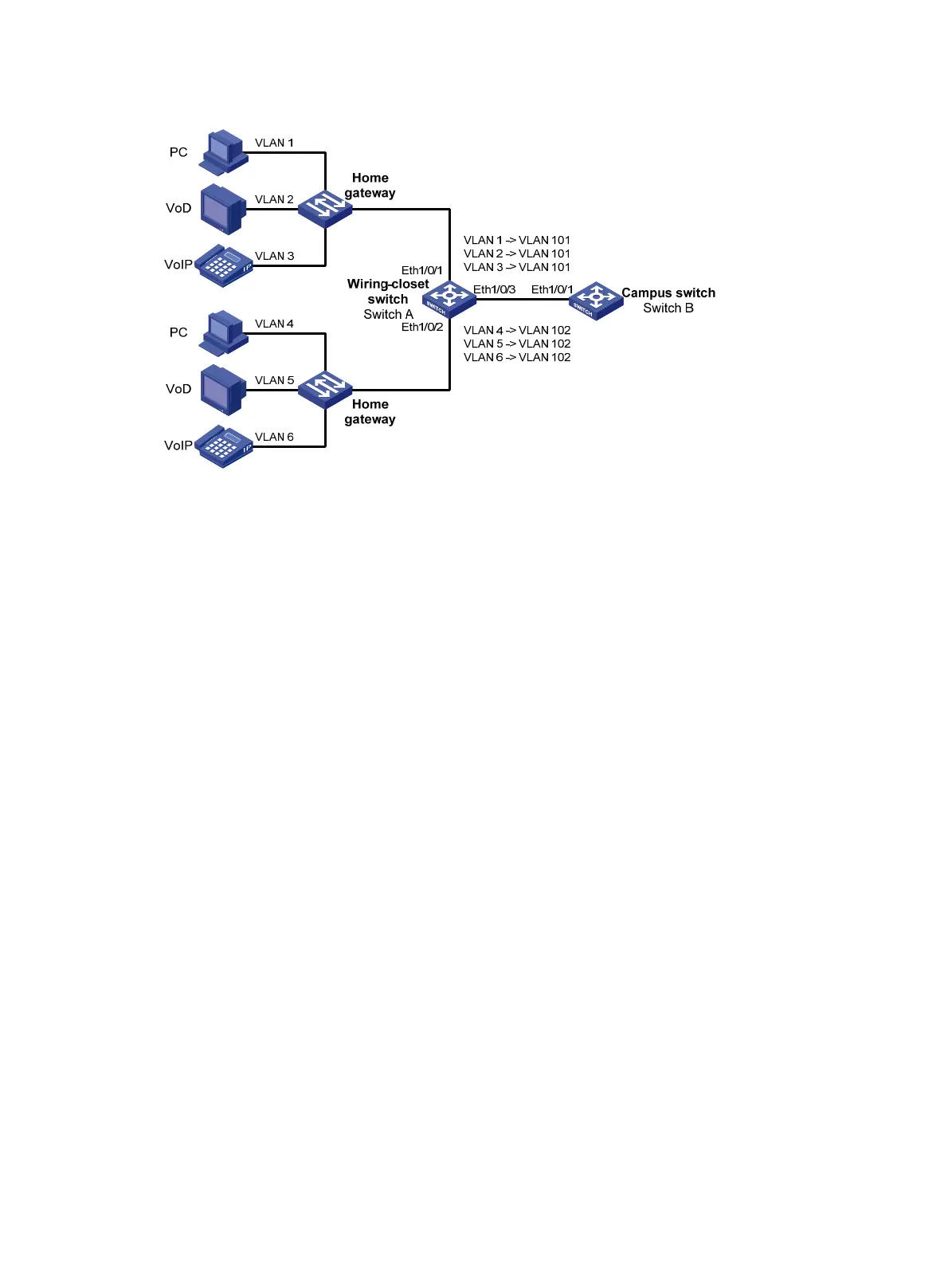

Figure 62 Network diagram for many-to-one VLAN mapping configuration

Configuration procedure

# Create the CVLANs and SVLANs.

<SwitchA> system-view

[SwitchA] vlan 2 to 6

[SwitchA] vlan 101 to 102

# Configure uplink policies p1 and p2 to transmit all services of one customer in a unique SVLAN.

[SwitchA] traffic classifier c1 operator or

[SwitchA-classifier-c1] if-match customer-vlan-id 1 to 3

[SwitchA-classifier-c1] traffic classifier c2 operator or

[SwitchA-classifier-c2] if-match customer-vlan-id 4 to 6

[SwitchA-classifier-c2] quit

[SwitchA] traffic behavior b1

[SwitchA-behavior-b1] remark service-vlan-id 101

[SwitchA-behavior-b1] traffic behavior b2

[SwitchA-behavior-b2] remark service-vlan-id 102

[SwitchA-behavior-b2] quit

[SwitchA] qos policy p1

[SwitchA-policy-p1] classifier c1 behavior b1 mode dot1q-tag-manipulation

[SwitchA-policy-p1] quit

[SwitchA] qos policy p2

[SwitchA-policy-p2] classifier c2 behavior b2 mode dot1q-tag-manipulation

[SwitchA-policy-p2] quit

# Configure customer-side port Ethernet 1/0/1 as a trunk port, assign the port to CVLANs 1 to 3 and

SVLAN 101, and apply uplink policy p1 to the incoming traffic of the port.

[SwitchA] interface ethernet 1/0/1

[SwitchA-Ethernet1/0/1] port link-type trunk

[SwitchA-Ethernet1/0/1] port trunk permit vlan 1 2 3 101

[SwitchA-Ethernet1/0/1] qos apply policy p1 inbound

[SwitchA-Ethernet1/0/1] quit
