7-7
Configuring IP Addressing
IP Configuration
Configuring IP Addressing
CLI: Configuring IP Address, Gateway, Time-To-Live
(TTL), and Timep
IP Commands Used in This Section
For a listing of the full CLI command set, including syntax and options, see
the CLI command reference available on the HP Procurve website at:
http://www.hp.com/go/hpprocurve
Viewing the Current IP Configuration. The following command displays
the IP addressing for each VLAN configured in the switch. If only the
DEFAULT_VLAN exists, then its IP configuration applies to all ports in the
switch. Where multiple VLANs are configured, the IP addressing is listed per
VLAN. The display includes switch-wide packet time-to-live, and (if config-
ured) the switch’s default gateway and Timep configuration.
Syntax: show ip
For example, in the factory-default configuration (no IP addressing assigned),
the switch’s IP addressing appears as:

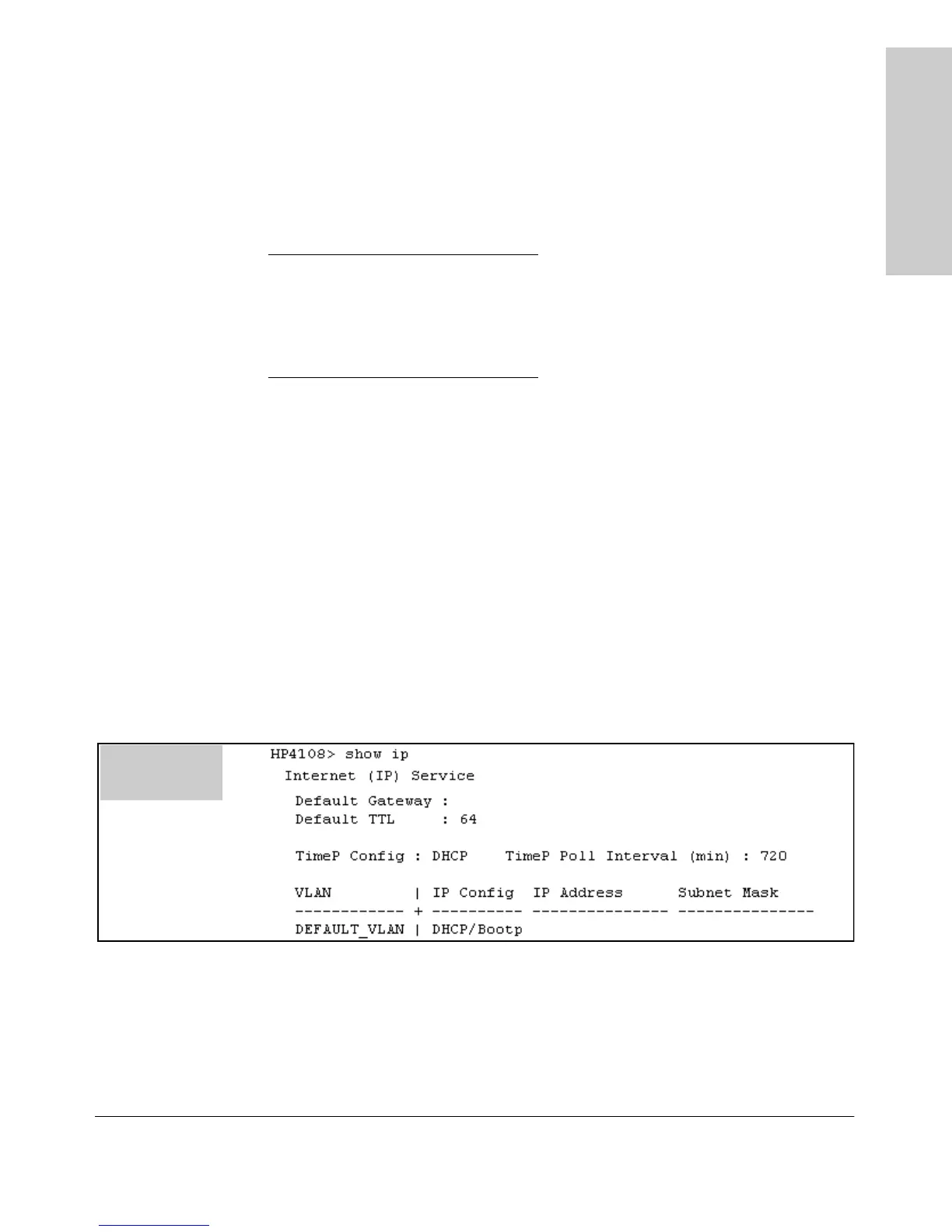

Figure 5-2. Example of the Switch’s Default IP Addressing
With multiple VLANs and some other features configured, show ip provides
additional information:
show ip page 7-7
vlan <vlan-id> ip
address
page 7-8
ip default-gateway page 7-8
ip ttl page 7-9
The Default IP
Configuration on
a Switch 4108GL
