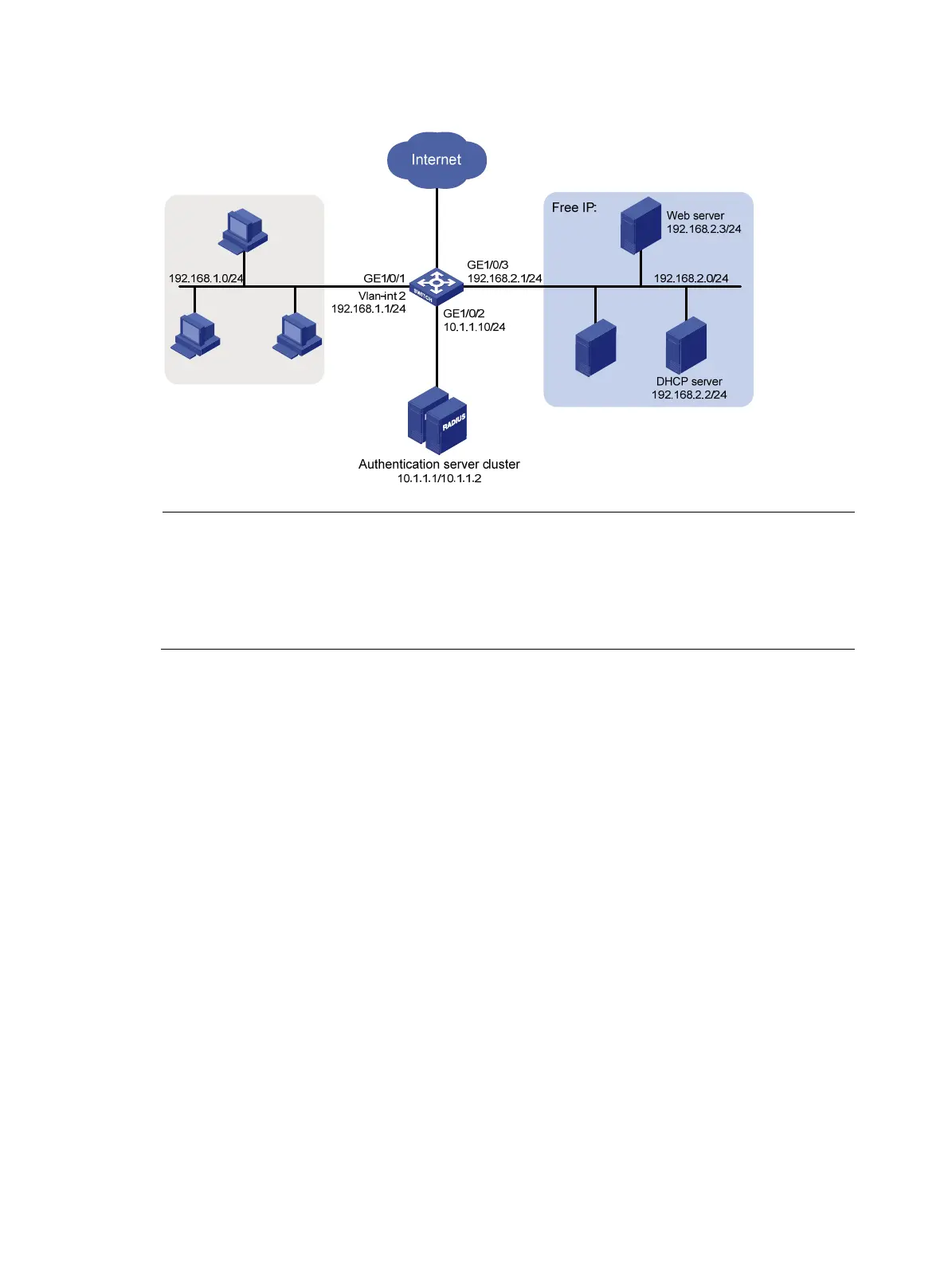

Figure 29 Network diagram for EAD fast deployment
NOTE:
In addition to the configuration on the access device, complete the following tasks:
• Confi
g
ure the DHCP server so that the host can obtain an IP address on the se
g
ment of 192.168 .1.0 /24 .
• Configure the web server so that users can log in to the web page to download 802.1X clients.
• Configure the authentication server to provide authentication, authorization, and accounting services.
Configuration procedure
1. Configure DHCP relay.
# Enable DHCP.
<Device> system-view
[Device] dhcp enable
# Configure a DHCP server for a DHCP server group.
[Device] dhcp relay server-group 1 ip 192.168.2.2
# Enable the relay agent VLAN interface 2.
[Device] interface vlan-interface 2
[Device-Vlan-interface2] dhcp select relay
# Correlate VLAN interface 2 to the DHCP server group.
[Device-Vlan-interface2] dhcp relay server-select 1
[Device-Vlan-interface2] quit
2. Configure a RADIUS scheme and an ISP domain.
For more information about configuration procedure, see the chapter "802.1X configuration."
3. Configure 802.1X.
# Configure the free IP.
<Device> system-view
[Device] dot1x free-ip 192.168.2.0 24
