Triple authentication configuration task list
Complete the following tasks to configure triple authentication:
Task Remarks
Reference
Configure 802.1X
authentication
Required
Configure at least
one type of
authentication
MAC-based access control
(macbased) is required.
802.1X configuration in
the Security Configuration
Guide.
Configure MAC
authentication
—
MAC authentication
configuration in the
Security Configuration
Guide.
Configure portal
authentication
Only Layer-2 portal
authentication is supported.
Portal configuration in the
Security Configuration
Guide.
Triple authentication configuration examples
Triple authentication basic function configuration example
Network requirements
As shown in Figure 72, the terminals are connected to a switch to access the IP network. It is required to
configure triple authentication on the Layer-2 interface of the switch that connects to the terminals, so that
a terminal passing one of the three authentication methods, 802.1X authentication, portal authentication,
and MAC authentication, can access the IP network. More specifically,
• Configure static IP addresses in network 192.168.1.0/24 for the terminals.
• Use the remote RADIUS server to perform authentication, authorization, and accounting and
configure the switch to send usernames carrying no ISP domain names to the RADIUS server.
• The local portal authentication server on the switch uses listening IP address 4.4.4.4. The switch
sends a default authentication page to the web user and forwards authentication data using HTTP.

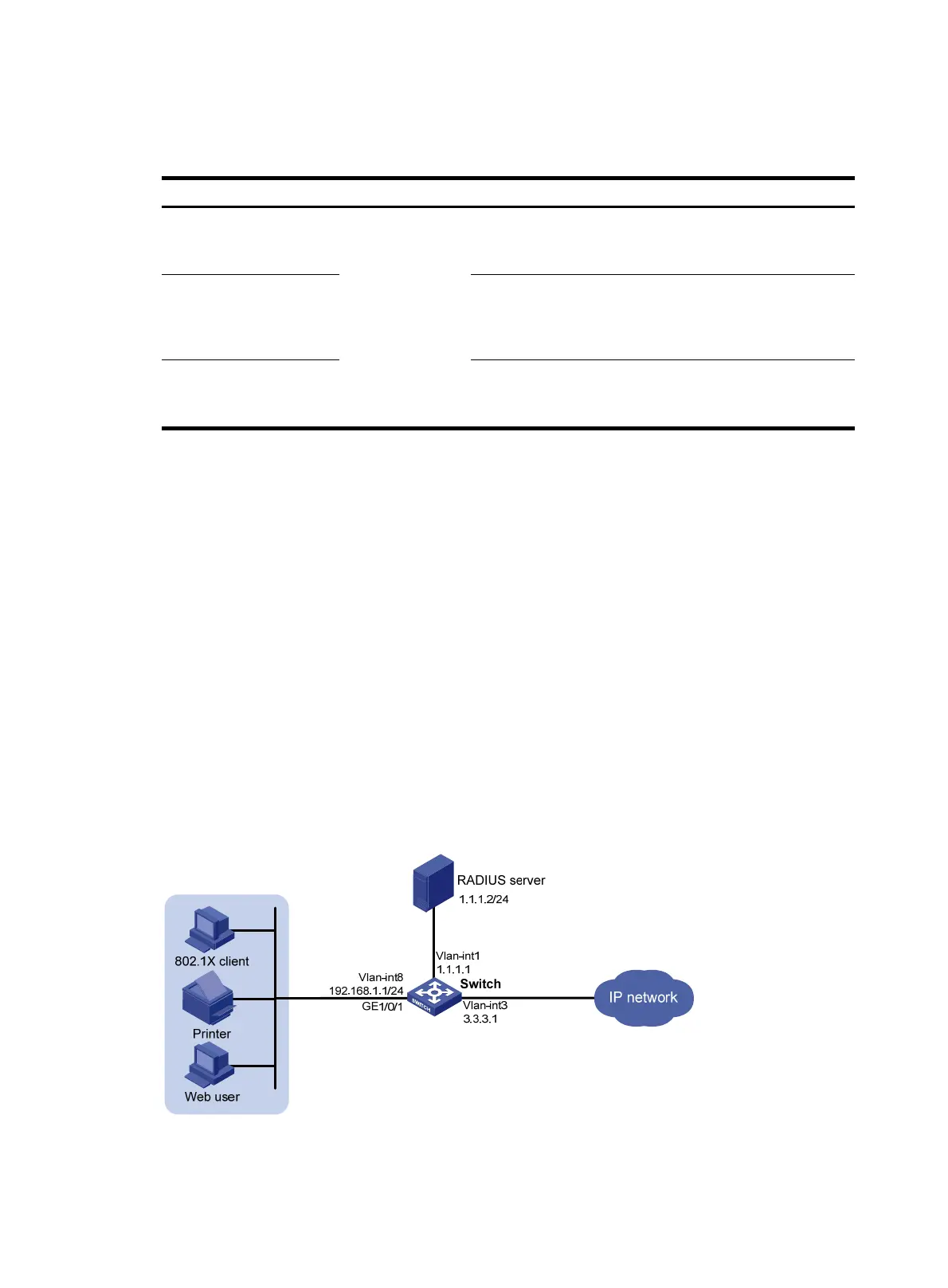

Figure 67 Network diagram for triple authentication basic configuration
Configuration procedure
