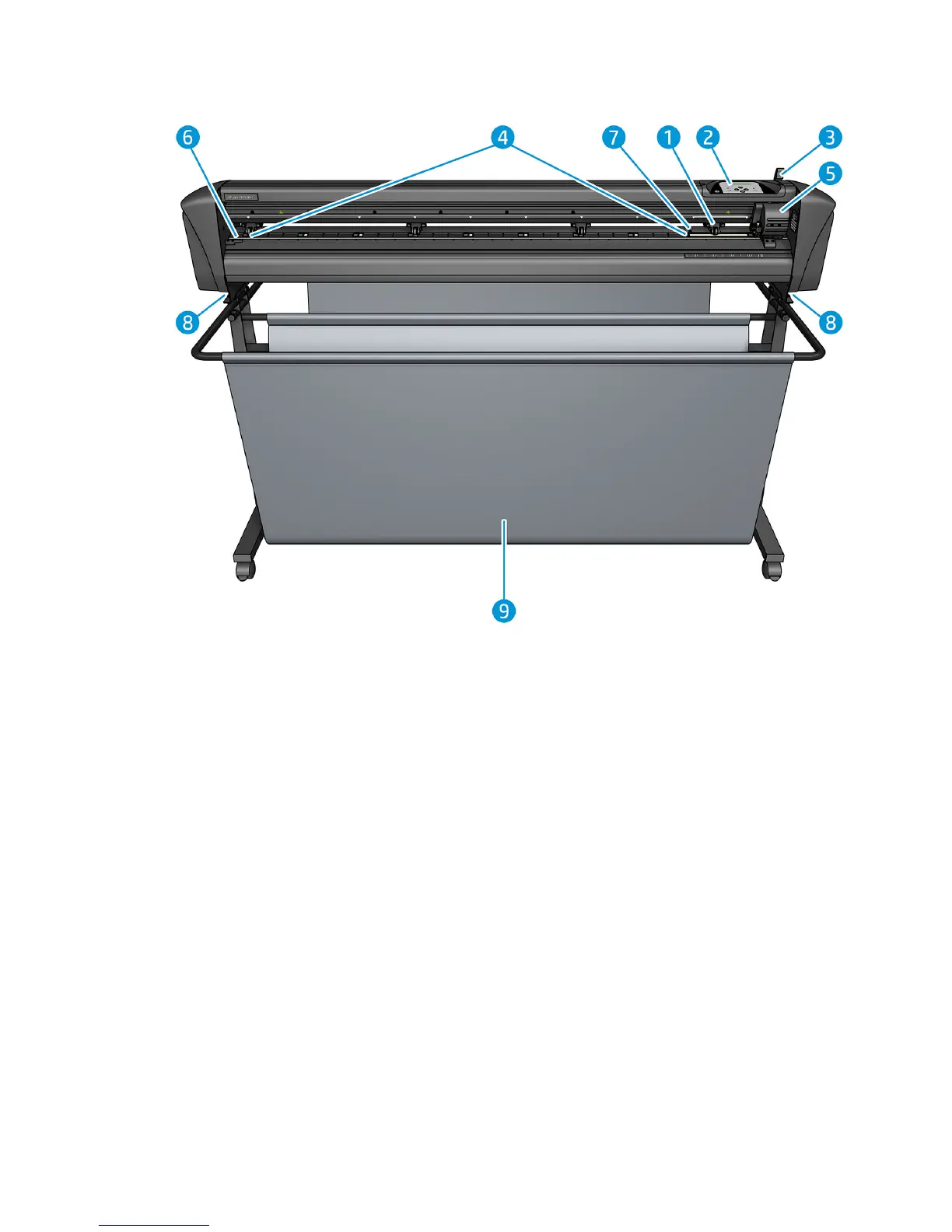

Front view

1. Pinch roller (the number of rollers depends on the model)

2. Front panel

3. Pinch roller lever

4. Substrate drive sleeves (the number of sleeves depends on the model)

5. Tool carriage and OPOS sensor

6. Cutting strip

7. Substrate sensor

8. Screws to secure the cutter base

9. Substrate basket

6 Chapter 1 Introduction ENWW
