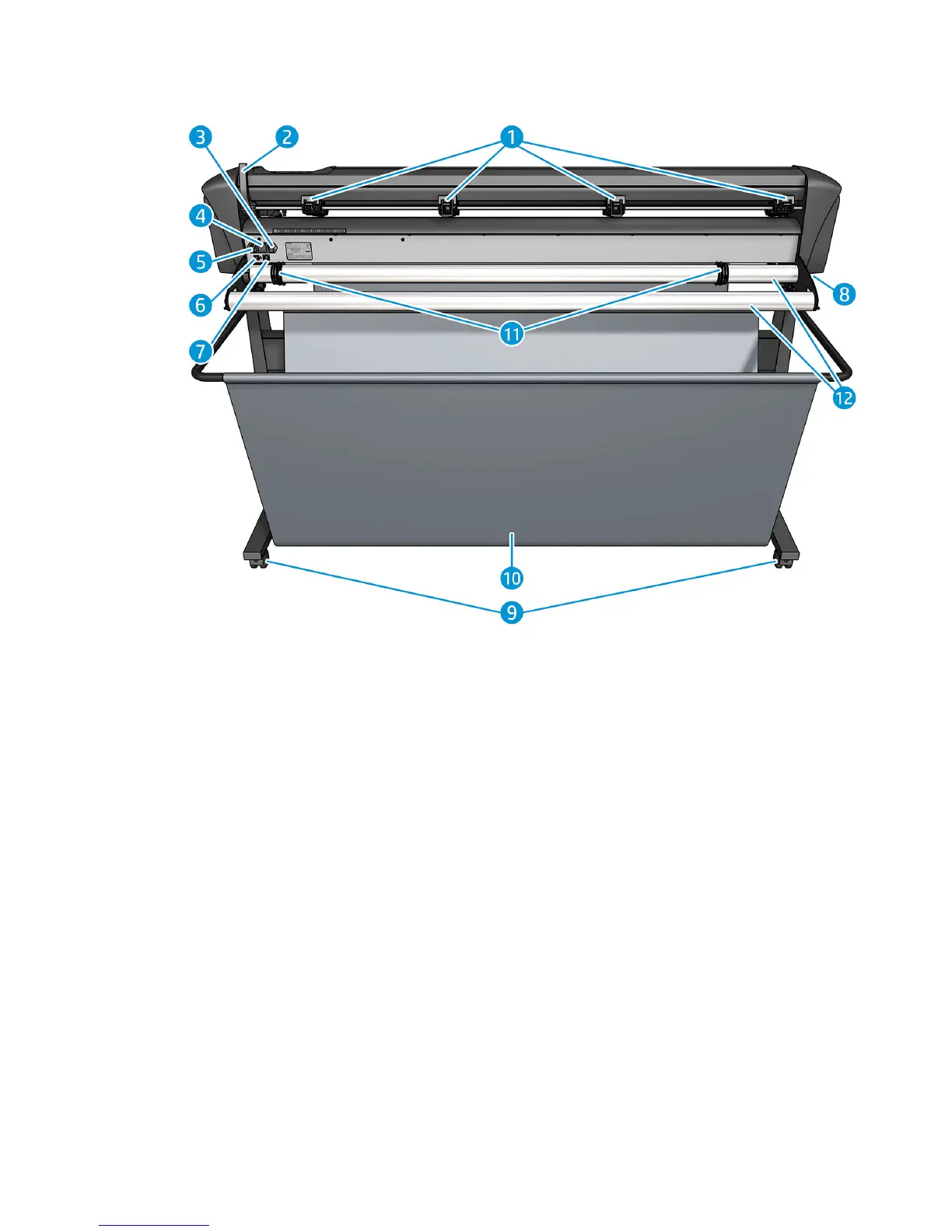

Rear view
1. Pinch rollers
2. Pinch roller lever
3. Fuse box
4. Power on/o switch
5. AC power socket
6. USB port
7. LAN port
8. Screws to secure the cutter base
9. Casters
10. Substrate basket
11. Roll guide bushes
ENWW Main cutter components 7
