Single-ended TDR Measurements
Establishing the Reference Plane and Normalizing
7-9

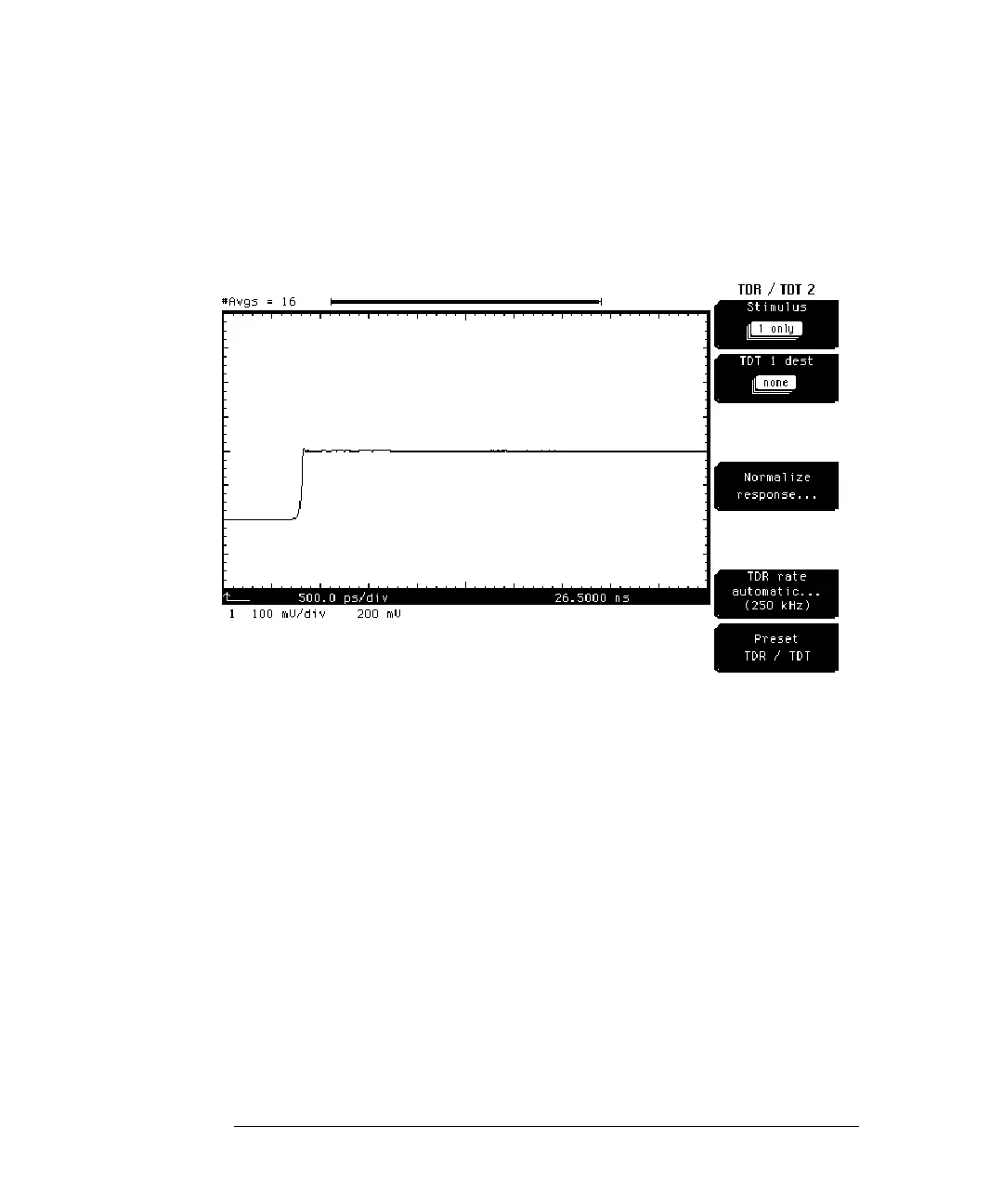

These steps set the oscilloscope to a known condition and activates the TDR
step on channel 1. You should see a display similar to the one shown in
Figure 7-2.
Figure 7-2
