HP 54753A User Manual

Single-ended TDR Measurements
Measuring Excess L/C
7-35

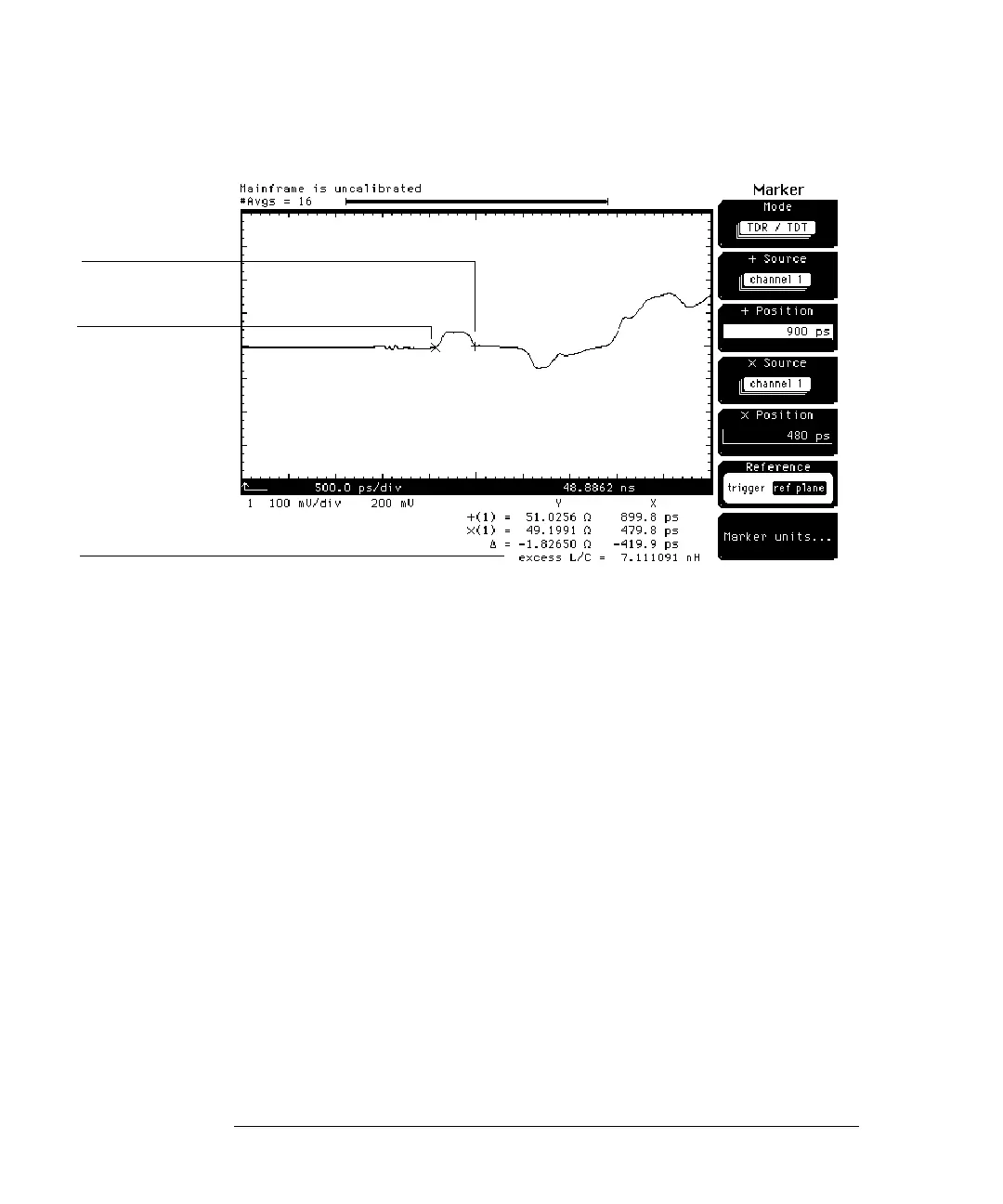

Figure 7-22
At the bottom of the display is shown the excess L/C which is 7.111091 nH for
the narrow trace discontinuity. We will now measure the wide trace
discontinuity’s excess L/C.
Excess L/C
+ Marker
X Marker
