175
# Associate the portal device with the IP address group.
As shown in Figure 49,
click the icon in the Port Group Information Management column of device NAS
to enter the port group configuration page.

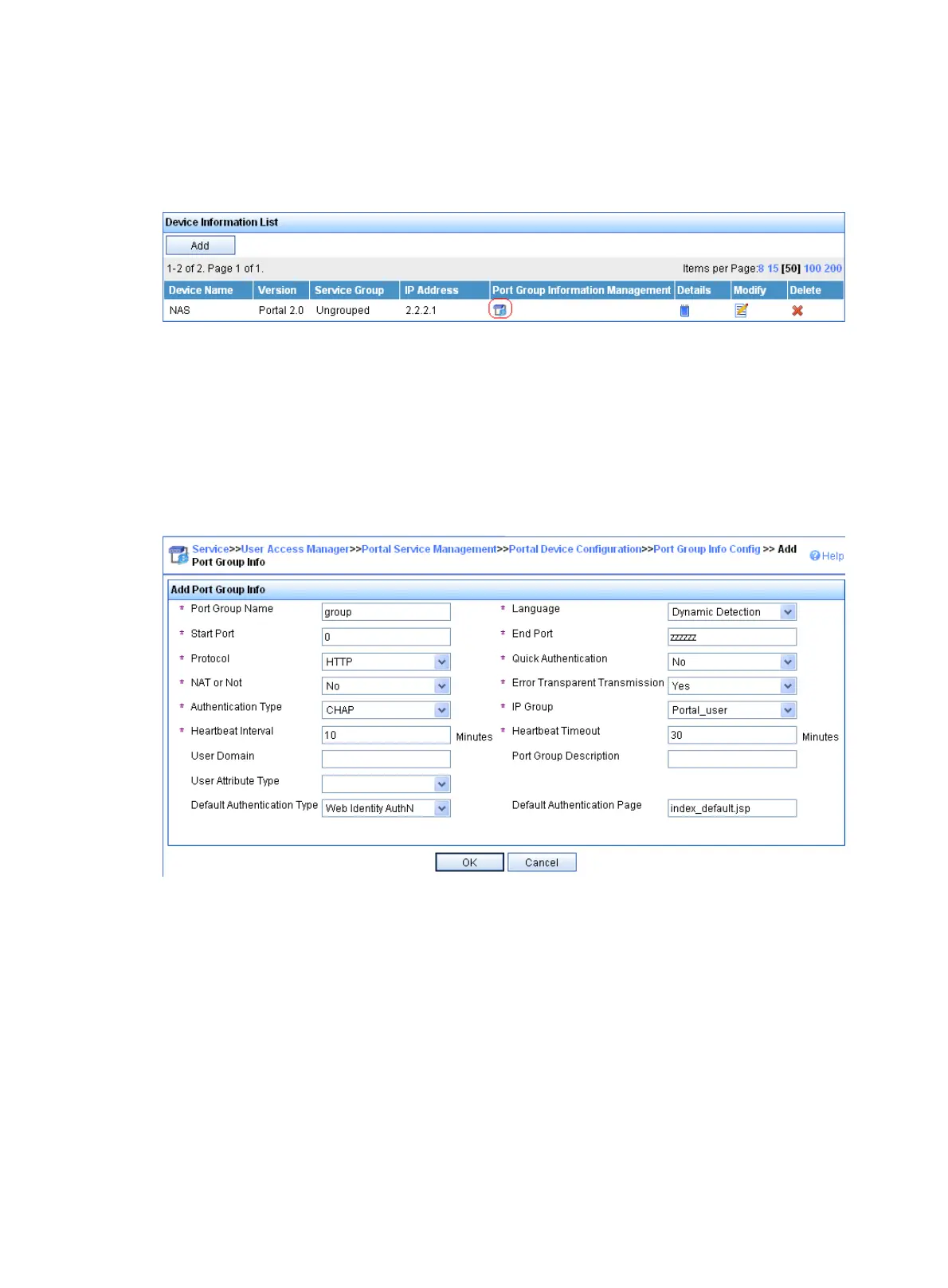

Figure 66 Device list
On the port group configuration page, click Add to enter the page shown in Figure 50. Perform the
following configurations:
• Enter the port group name.
• Select the configured IP address group. The IP address used by the user to access the network must
be within this IP address group.
• Use the default settings for other parameters.
Figure 67 Adding a port group
# Select User Access Manager > Service Parameters > Validate System Configuration from the
navigation tree to validate the configurations.
Configure the switch
1. Configure a RADIUS scheme:
# Create RADIUS scheme rs1 and enter its view.
<Switch> system-view
[Switch] radius scheme rs1
# Configure the server type for the RADIUS scheme. When using the IMC server, configure the
RADIUS server type as extended.
[Switch-radius-rs1] server-type extended
