HP 5528A User Manual

Model 5528A
Conlro l s, Connector s, Ind icators
M ::::'-':='-=
1 ·_ · ,-
-*':.,,::;r.:'-"
1. LASER ON Ind ica tor: Indicates when La se r Head is receiving power from
Measurement
Dis pla y unit.
2. SIGNAL Indi ca tor: Ind icates that La ser return beam is strong enough for a
measurement.
3. LA S ER EXIT PORT : Sou r ce of l aser be am for all mea s ur t! ment s. Al so,
d es tination of La se r return beam f or Straightn ess mea surement s.
WARNING
LASER RADIATION IS EMITTED FROM THIS
PORT . DO NOT STARE INTO THE BEAM .
4. LA S ER RETURN PORT : D est ination of La se r return beam for Dis tan ce,
Ve locit y, and Angul ar mea su rement s.
5. APERTURE CON TROLS : These are lo ca t ed beh ind both ports in the
turret. The Exi t Port 's aperture co nlrol ha s three pos itions - large
openin g. small ope nin g, and d osed. Th e Return Port 's shutter ha s two
positions - open and dosed ( wh ich di sp l ays a tars t! tll se d for alignment).
6. TU RRET RING: A t wo -position selector that sw itch es elements in the hit
and Return beam path s, depending on whether a "STRAIGHTNE SS"
mea suremen! is being made.
7. READY Indicator: Pr ovid es a general indication of the la se r 's operating
st atu s. "OU" for ab out the first half of the wa rm- up time; blinking during
Ihe la st half (approximatcl y) of the warm·up time; "O n" steadily when
La se r tubc is fu lly warmed up and r ea dy for usc.

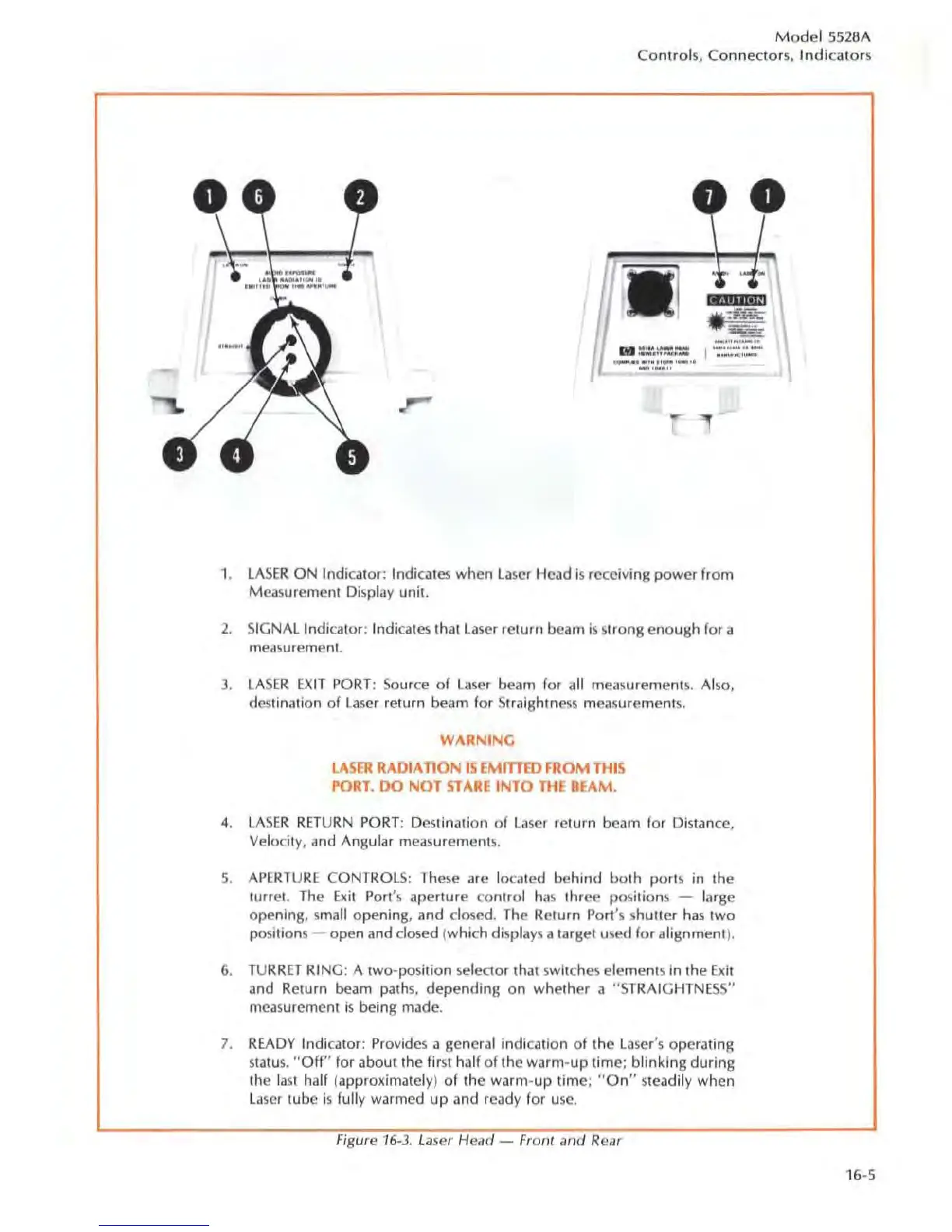

Fi gure 16- 3. La ser He ad - Frollt alld Rear
16 ·5
