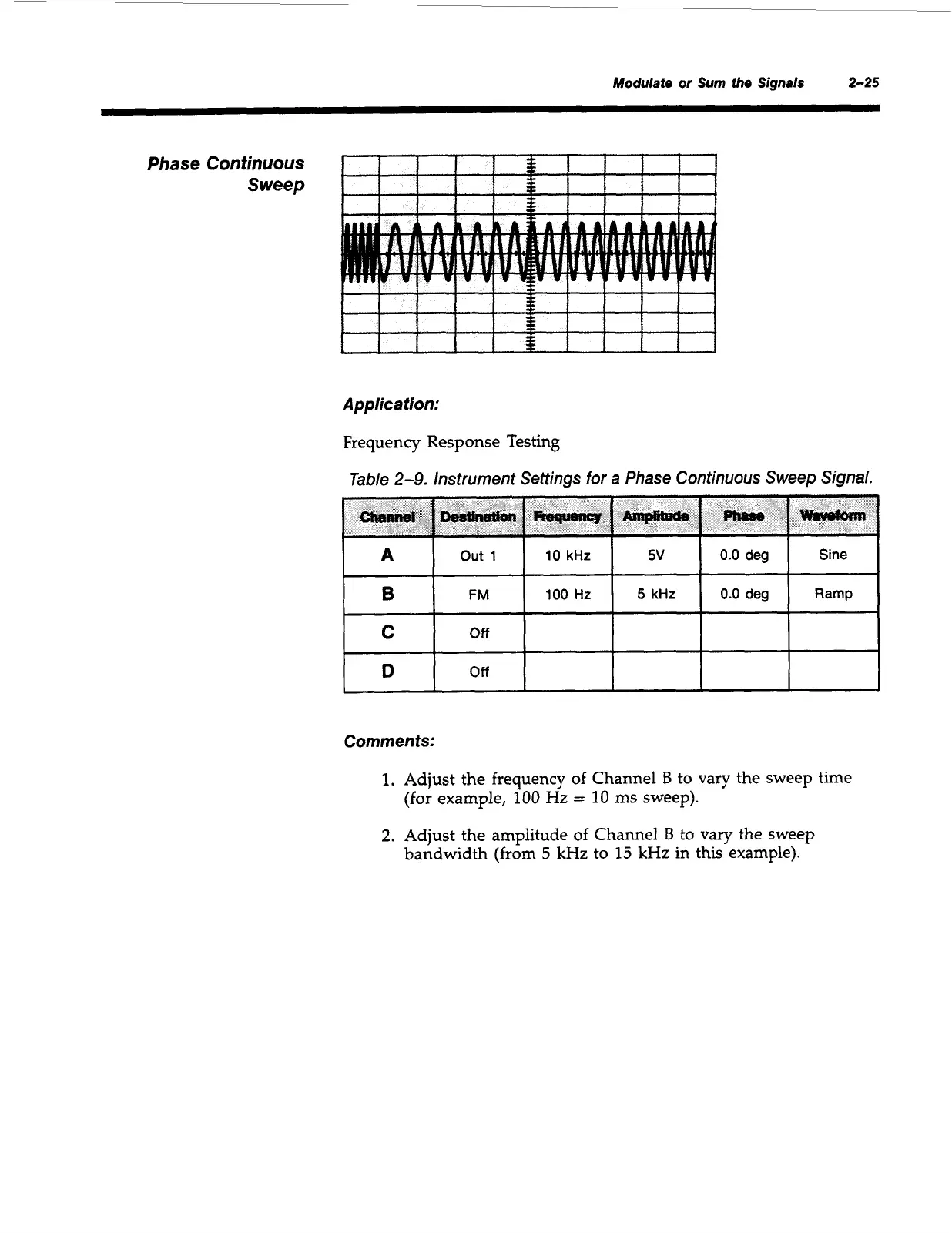

Modulate or Sum the Signals 2-25
A
B
C
D
Phase Continuous
Sweep
out 1 10 kHz 5v 0.0 deg Sine
FM 100 Hz 5 kHz 0.0 deg Ramp
Off
Off
Application:
Frequency Response Testing
Table 2-9. lnstrument Settings for a Phase Continuous Sweep Signal.
Comments:
1. Adjust the frequency of Channel B to vary the sweep time
(for example, 100 Hz = 10 ms sweep).
2. Adjust the amplitude of Channel B to vary the sweep
bandwidth (from
5 kHz to 15 kHz in this example).
