HP 8904A - Modulate or Sum the Signals

2
Modulate or Sum the Signals
In This Chapter
This chapter will help you learn to use the four channels provided by
Configuration Option
01. If your HP 8904A is equipped with
Option
01, simply step through the following demonstrations to learn
how to:
Modulate Channel A
Set Up Simultaneous Modulation
Sum the Modulation Signals
0 Sum the Output Signals
0 Set Up Some Multi-Channel Applications
Set Up Your Equipment

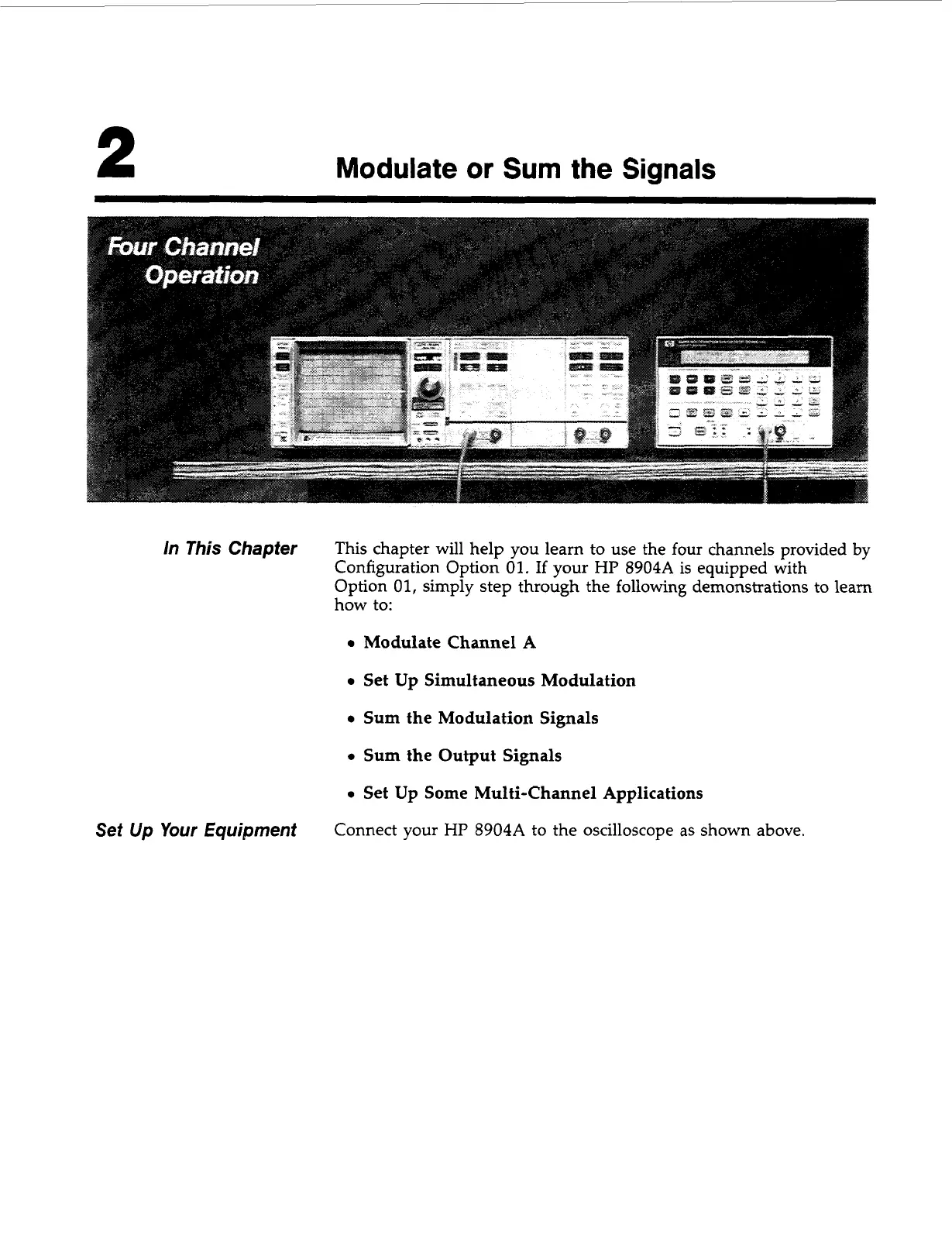

Connect your HP 8904A to the oscilloscope as shown above.
