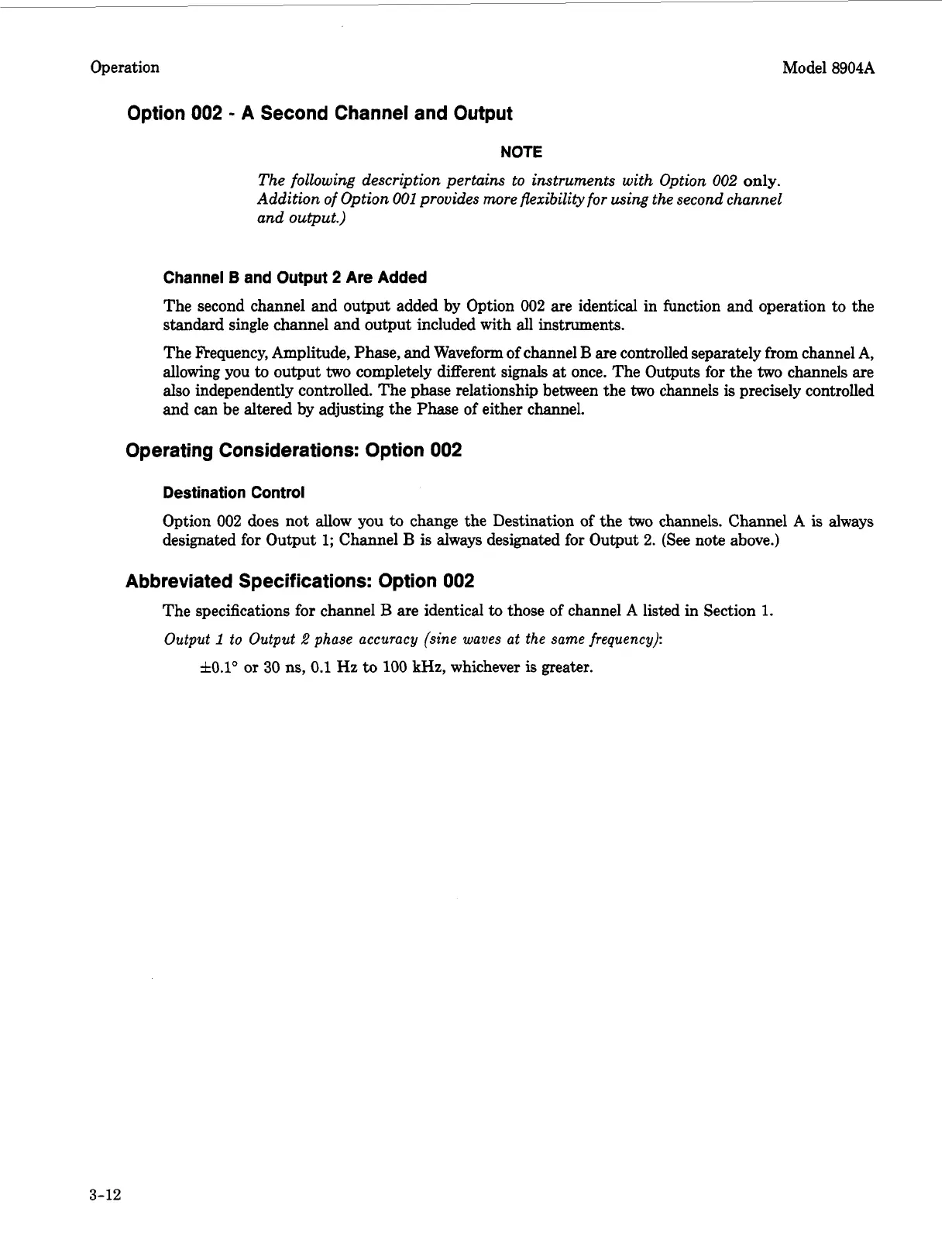

Option 002 - A Second Channel and Output
NOTE
The following description pertains to instruments with Option 002 only.
Addition of Option 001 provides more flexibility for wing the second channel
and output.)
Channel B and Output 2 Are Added
The second channel and output added by Option 002 are identical in function and operation to the
standard single channel and output included with
all instruments.
The Frequency, Amplitude, Phase, and Waveform of channel B are controlled separately from channel A,
allowing you
to output two completely different signals at once. The Outputs for the two channels are
also independently controlled. The phase relationship between the
two channels is precisely controlled
and can be altered by adjusting the Phase
of either channel.
Operating Considerations: Option 002
Destination Control
Option 002 does not allow you to change the Destination of the two channels. Channel A is always
designated for Output
1; Channel B is always designated for Output 2. (See note above.)
Abbreviated Specifications: Option 002
The specifications for channel B are identical to those of channel A listed in Section 1.
Output 1 to Output 2 phase accuracy (sine waves at the same frequency):
k0.1" or 30 ns, 0.1 Hz to 100 kHz, whichever is greater.
