HP 8904A - Option 001. Three more Channels, Summation, Modulation, and Sequencing

Model 8904A Operation
D/A
CHANNEL A fRCo -0 PHASE
Option 001 - Three More Channels, Summation, Modulation, and Sequencing
F,LTERS ATTEN- AMPLI-
Operating Tutorial
0 HP 8904A Multifunction Synthesizer Operation and Application guide (HP part 5953-8491):
Contains detailed operating instructions for
- most of the capabilities provided by Option 001.
Instruments with serial prefix 2948A and above have additional functions available with
Option
001 that are documented in section 3C.
Waveform Examples
0 HP 8904A Multifunction Synthesizer Waveform Catalogue (HP part 5953-8494): Contains
examples
of several types of waveforms that can be created with Option 001 and the instrument
settings used to obtain those signals.
ANALOG CONVERSION
1
DIGITAL WAVEFORM SYNTHESIS -1 r- AND CONDITIONING
I
AM. FM.W
DSE. PULSE
z
lab
CHANNEL B fRm PHASE -m AMP
PHASE
CHANNEL D PHASE

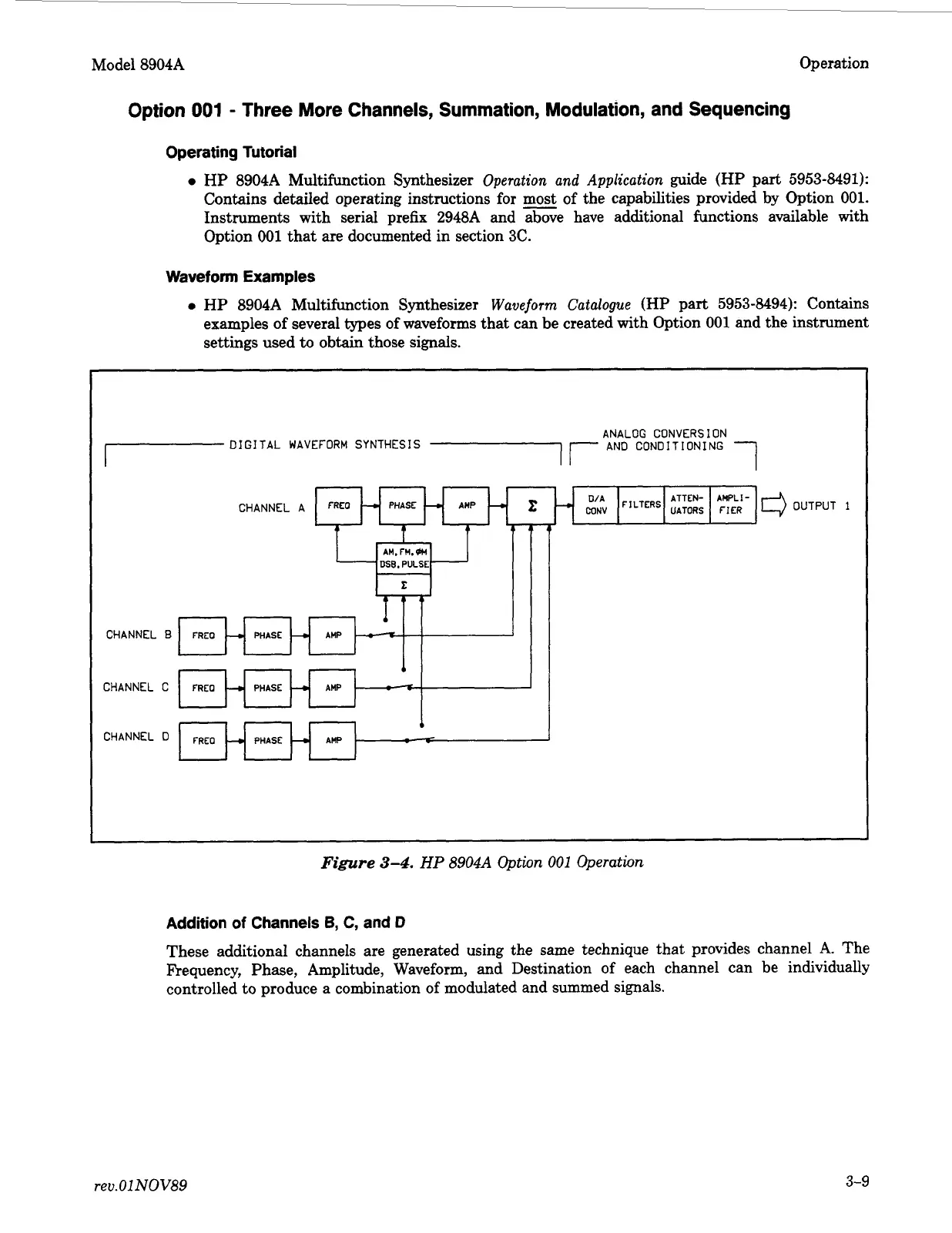

Figure 3-4. HP 8904A Option 001 Operation
Addition of Channels 6, C, and D
These additional channels are generated using the same technique that provides channel A. The
Frequency, Phase, Amplitude, Waveform, and Destination of each channel can be individually
controlled to produce
a combination of modulated and summed signals.
reu.01 NOV89
