3-2.
BLOCK
DIAGRAM
Model
8904A
The block diagram below
illustrates
the main functional blocks
that
comprise the
HP
8904A.
The
capabilities of your instrument are dependant upon the options you have ordered. By understanding
how the different options integrate with the rest
of
the instrument, you can quickly learn
to
create
almost any signal you need.
For more information on the capabilities and operation of standard and optional instrument functions,
refer
to
the detailed information following
later
in
Section
3.
Step-by-step operations for each option
are included in the
HP
8904A
Multifunction Synthesizer
Basic Operation and Application
guide.
II II
II
I
1
-

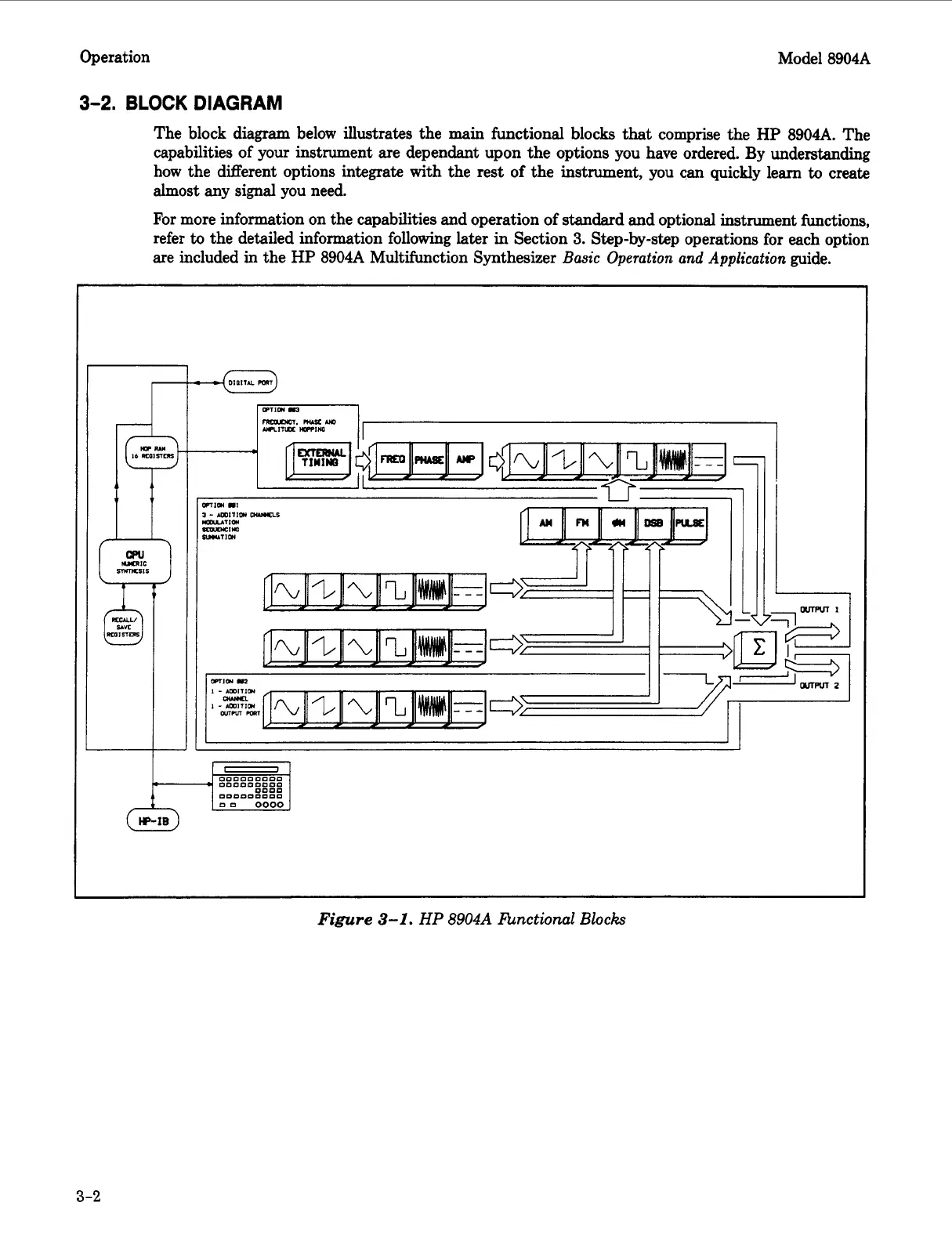

Figure
3-1.
HP
8904A
finctional
Blocks
3-2
